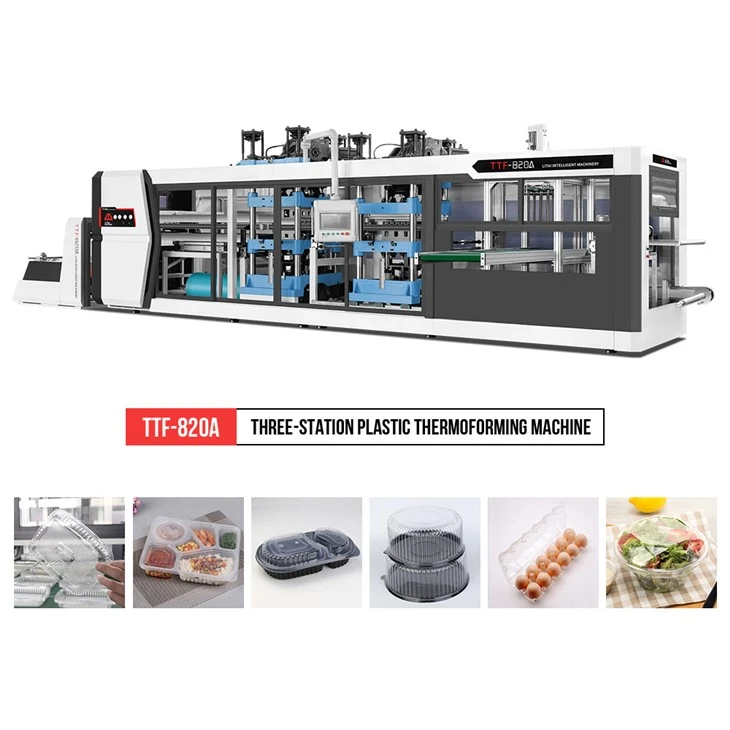

Donut Clamshell Container Thermoforming Machine
Model: TTF-820A
Max.Forming Area: 820*650mm
Max.Forming Height: 140mm
Max.Sheet Thickness(mm): 1.2 mm
Forming Speed (Max.): 30times/min
Power supply: AC 380V, 50Hz, Three-phase, Four-wire
Application: trays, containers, boxes, lids, etc.
Core Components: PLC, Engine, Bearing, Gearbox, Motor, Gear, Pump
Suitable Material: PP, PS, HIPS, PET, PVC, PLA etc.
Donut Clamshell Container Thermoforming Machine using the latest international plastic sheet forming process technology It uses microcomputer and programmable control PLC control system, the entire system HMI (man-machine interface ). Laser blade punching, heating, forming, cutting, stacking three stations, advanced technology simultaneous running that is plastic sheet sending, heating, forming, cutting, Stacking together to complete the plastic sheeting thermoforming machine. Reduce the manual, easy to operate, improve production efficiency, reliability, the high degree of automation, dedicated to the hot forming of the production line.
It is suitable for processing different materials, such as PP, PS, HIPS, PET, PVC, PLA etc. processing high transparency, high stretch, shallow stretch, round, square, upper and lower two-way stretch, flanged and other products, including trays, lids, fruit and vegetable boxes, flower pots, shells, seedling trays and plates, etc.
Application of Donut Clamshell Container Thermoforming Machine
Donut clamshell container thermoforming machine is using PP/PS/PET/PVC/HIPS/Corn starch material to make disposable plastic donut containers with lids, egg trays, sushi trays, bowls, box and etc.
Parameters of Donut Clamshell Container Thermoforming Machine
| Model | TTF-820A |
| Station | Three station |
| Mould Size (Max.) | 820*650mm |
| Forming Depth (Max.) | 140mm |
| Sheet thickness | 0.2-2mm |
| Forming Speed (Max.) | 40times/min |
| Air pressure | 0.6-0.8mpa |
| Air consumption | 4.0m³/min |
| Water consumption | 0.7m³/h |
| Sheet width (Max.) | 850mm |
| Suitable Sheet | PP, PS, HIPS, PET, PVC, PLA etc. |
| Power supply | AC 380V, 50Hz, Three-phase, Four-wire |
| Rated power | 202Kw |
| Heating power | 140Kw |
| Procedure | Forming-cutting-stacking |
| Dimension | L12800*W4650*H2900mm |
| Weight | About 17T |
Main Features
1. The machine is completely driven by servo motor, which is low noise, high efficiency
2. Heater is imported from Germany which saves 40% energy
3. Cutting blade is imported from Japan and Australia which ensure cutting quanlity and makes the cutting time longer.
4. Sheet loading is automatic and only needs one labor to operate the machine
Machine detail
Key Features of the Thermoforming Machine
1. Maximum Mold Dimensions: 820 x 580 mm, allowing the production of a variety of thermoforming products
2. Cycle Speed: Up to 75 cycles per minute, ensuring fast and consistent output
3. Maximum Sheet Width: 840 mm, enabling the use of larger thermoforming plastic sheets
4. Material Compatibility: PET, CPET, PP, PVC, PS, OPS, PLA, with a maximum sheet thickness of 2mm.
5. Advanced In-Mould Cutting Technology：The in-mould cutting feature ensures precise shaping and trimming of products directly within the mold.
