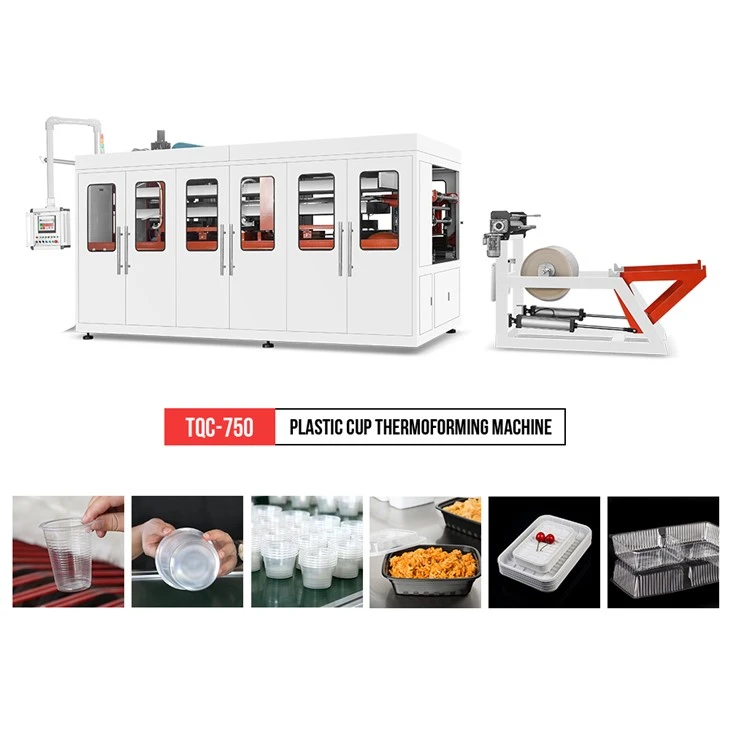

Large Forming Area Cup Machine
Model: TQC-750
Mould Size (Max.): 750mm x 480 mm
Forming Depth (Max.): 180mm
Sheet width (Max.): 770m
Main Motor Power: 188.55KW
Heating Power: 146KW
Dimension: L8500*W2200*H3200mm
Suitable Sheet Material:PP / PET / PVC / PS / HIPS / GPPS / Biodegradable Materials
Send Inquiry
Product Introduction
Large Forming Area Cup Machine --- Features
1, positive and negative pressure combination, the thickness of the same material is better than that of the negative pressure plastic absorbing product, the weight is more stable and the thickness is even.2, positive and negative pressure function coexist, product molding size is precise and stable.3, heating, molding, punching, stacking, counting and conveying are completed synchronously. Only one person is packed into the box. The product is safe and hygienic without two times of contamination.4, forming, cutting, stacking, sending film are servo controlled, accurate and accurate.5, the use of industrial control PLC and micro computer man-machine interface control, accurate operation and simple operation.6, silicone oil, multiple vacuum, vibration demoulding, upper and lower die moving, stretching up and down, the product effect is better.Large Forming Area Cup Machine --- Details
Large Forming Area Cup Machine ---parameter
| Model | TQC-750 |
| Mould Size (Max.) | 750*480mm |
| Sheet width | 770mm(Max) |
| Max. Forming Depth | 180mm |
| Max. Forming Speed | 30times/min |
| Sheet Thickness | 0.3-1.8mm |
| Suitable Sheet Width | 770mm |
| Suitable Sheet | PP, PS, HIPS, PET, PVC, PLA etc. |
| Air Pressure | 0.6-0.8mpa |
| Air Consumption | 3.0m³/min |
| Water Consumption | 0.7m³/h |
| Rated Power | 173Kw |
| Heating Power | 146Kw |
| Power Supply | AC 380V,50Hz, Three-phase, Four-wire |
| Dimension | L8500*W2300*H3300mm |
| Weight | About 8T |
| MACHINE MAIN PARTS | |
| Touch Screen,PLC | Siemens, Germany |
| Servo Motor | Yaskawa, Japan |
| AC Contactor,Circuit Breaker | Schneider,France |
| Proximity Switch | TURCK, Germany |
| Solenoid Directional Valve | Yuken, Taiwan
|
| Solenoid Overflowing Valve | |
| Counterbalance valve | |
| Forming Valve | MAC, America |
| Solenoid Valve | SMC/Mindman, Japan/Taiwan |
Large Forming Area Cup Machine ---Samples:
Remark:--Export to more than 70 countries .
-- We own CE certificate, ISO 9001 --Our sales and after sales team will reply you in 24 hours. We have professtional after sales department, can arrange engineer to customer factory for machine installation and training, and provide long term supply technology support and spare parts.
