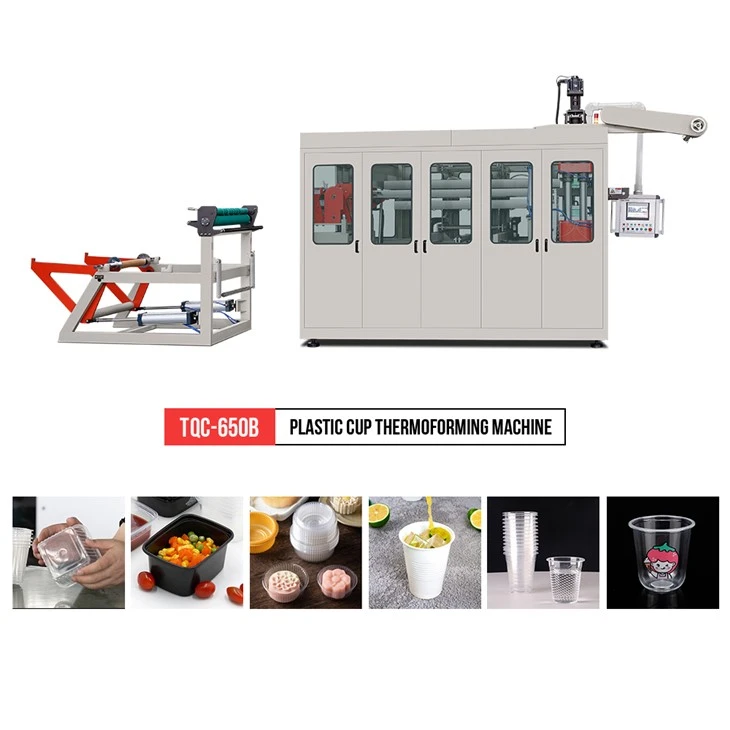

Ice Cream Container Production Line
Model: TQC-650B
Mould Size (Max.): 650mm x 300 mm
Forming Depth (Max.): 125mm/180mm
Sheet width (Max.): 660mm
Main Motor Power: 98Kw
Heating power: 78KW
Dimension: L7000 x W2000 x H3100mm
Suitable Sheet Material:PP / PET / PVC / PS / HIPS / GPPS / Biodegradable Materials
TQC-650B Ice Cream Container Production Line is suitable for producing plastic cup bowl box containers and lids. The whole machine is controlled by PLC and Servo system (Equipped with a stretching servo motor), the positioning is more accurate and the thermoforming is more stable. The machine has the advantages of stable operation, low noise, energy saving and environmental protection, high grade of finished products. This machine is mainly used in production of PP PS PE PET HIPS PLA thermoplastic sheet with positive pressure forming to become different kinds of jelly cups, beverage cups, packaging boxes high grade containers, and so on. The forming area is 650 x 320mm, forming depth 180mm, max production speed 35 cycle/min.
Equipment Details:
1. PLC Control: Siemens PLC for accurate performance and recipe storage.
2. Mold Guide Columns: Stable four-column design (40R steel, hard chrome plated) for durability and high accuracy in mold operation.
3. Temperature Control: PID regulation with Taiwan Yangming modules; temperature deviation within ±1 degree across 20 channels.
4. Sheet Feeding Chain: Double-row roller chain with teeth, supported by quenched 40Cr guide rails for enhanced durability.
5. Hydraulic System: Joint-venture oil pump with imported electromagnetic valves from Taiwan.
6. Heater: Tianbao curved electric heating tiles for high efficiency and safety.
7. Servo Stretching: Huichuan servo motors control mold speed for uniform strength and consistent bottom thickness, optimizing material usage.
8. Accessories: Air circuit control with AIRTAC cylinders, utilizing reliable Japanese and Taiwanese components for longevity.
Parameters of Ice Cream Container Production Line
| Model | TQC-650B |
| Mould Size (Max.) | 650*300mm |
| Sheet width | 660mm(Max) |
| Max. Forming Depth | 125-180mm(custom height) |
| Max. Forming Speed | 30times/min |
| Sheet Thickness | 0.3-1.8mm |
| Suitable Sheet Width | 660mm |
| Suitable Sheet | PP, PS, HIPS, PET, PVC, PLA etc. |
| Air Pressure | 0.6-0.8mpa |
| Air Consumption | 2.0m³/min |
| Water Consumption | 0.5m³/h |
| Rated Power | 98Kw |
| Heating Power | 78Kw |
| Power Supply | AC 380V,50Hz, Three-phase, Four-wire |
| Dimension | L7000*W2000*H3100mm |
| Weight | About 6T |
Core Components and Functions
1. High-precision mold systemAdopt aviation-grade alloy materials, wear-resistant and long service life. The mold surface is precisely processed to ensure the product size is accurate and the surface is smooth and flawless.
2. Vacuum forming and cooling system
The high-performance vacuum pump provides stable negative pressure to improve the molding quality.
3. Automatic feeding and waste recycling system
The automatic feeding device improves the utilization rate of raw materials and saves labor costs. Waste can be recycled and reprocessed in a centralized manner to achieve zero waste production.
4. Intelligent temperature control module
The precise temperature control system avoids overheating or underheating and ensures the best performance of raw material performance.
