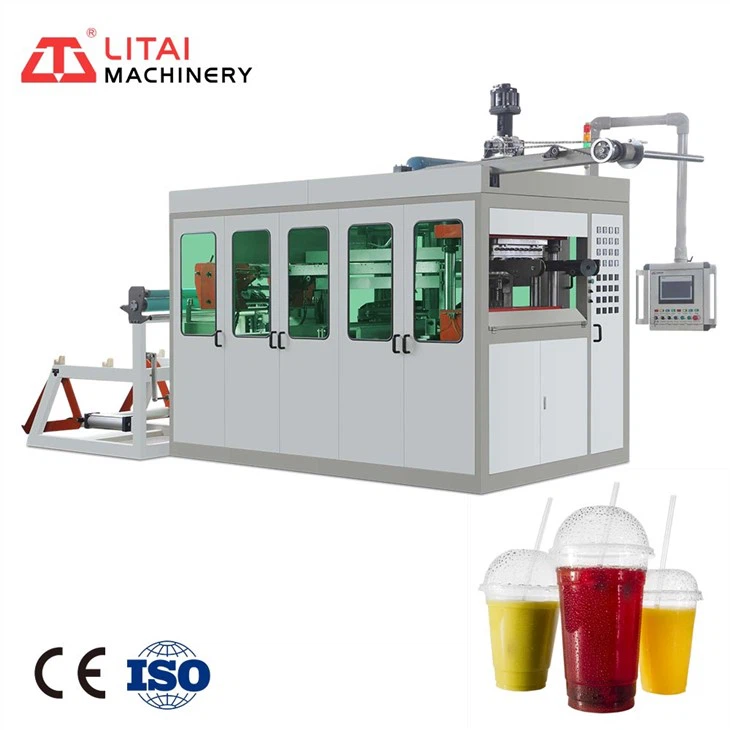

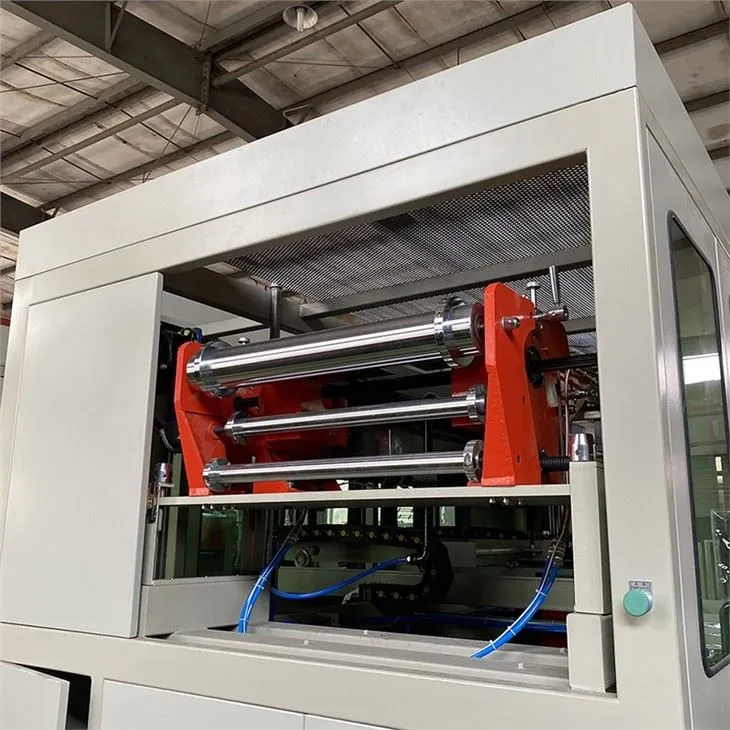

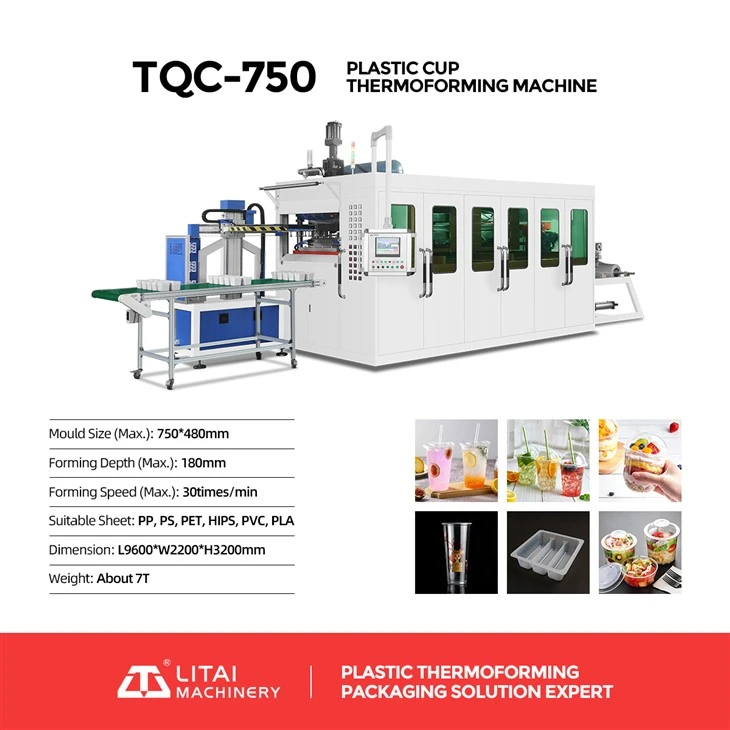

Automatic positive and negative hydraulic plastic cup machine

TQC series plastic cup thermoforming machine adopts servo motor for sheet feeding and plug streching,PLS for Program,touch screen for operation,stable,low noise,high effciency,suitable for producing disposable products like plastic bowls,cups,trays,plates.etc.

Send Inquiry

Download

Product Introduction

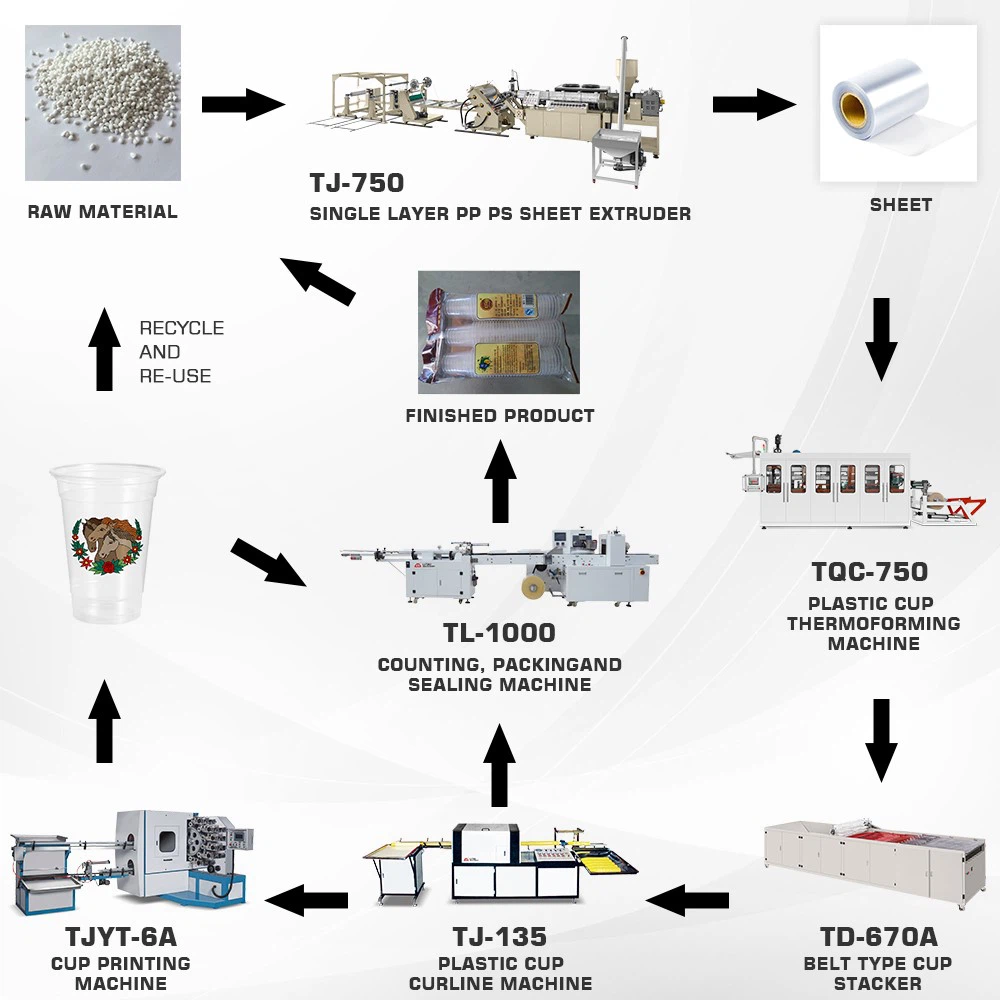

750

Products Description:

Technical Parameters
Model	TQC-750	TQC-650B
Max. Forming Area	750*480mm	650*320mm
Max. Forming Depth	125-180mm（custom height）
Sheet Thickness	0.3-1.8mm
Sheet Width	760mm	650mm
Max. Forming Speed	30 times/min
Air Pressure	0.6-0.8mpa
Air Consumption	3.0m³/min	2.0m³/min
Water Consumption	0.7m³/h	0.5m³/h
Rated Power	140Kw	98Kw
Used Power	98Kw	72Kw
Power Supply	AC 380V,50Hz, Three-phase, Four-wire
Dimension	L8500W2200H3200mm	L7000W2000H3100mm
Weight	About 6.5T	About 5T

MACHINE MAIN PARTS
Touch Screen/PLC	SIEMENS (Germany)
Servo Motor	YASKAWA (Japan)
AC Contactor/Circuit Breaker	SCHNEIDER (France)
Proximity Switch	ROCKWELL (USA)
Solenoid Directional Valve/solenoid overflowing valve/counterbalance valve	YUKEN (Taiwan)
Intermediate relay	IDEC (Japan)
Intermediate relay base	OMRON (Japan)
Forming Valve	CKD (Japan)
Solenoid Valve	SMC (Japan) / Mindman (Taiwan)

samples:

1 (1)

1 (2)

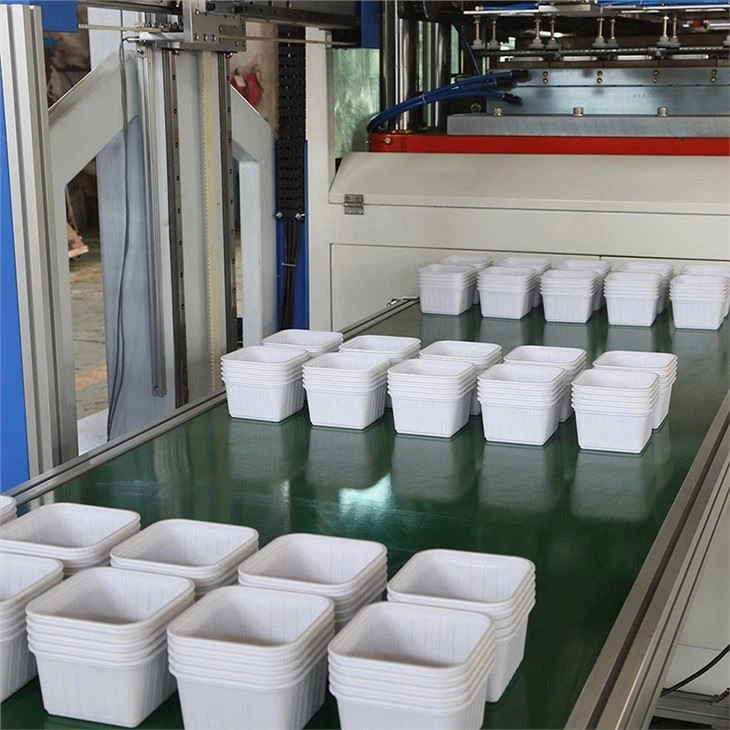

APPLICATION：

TQC series cup machine is our newly developed core product. The feeding and stretching parts are driven by servo motors. The machine produces plastic cups, bowls, lids, boxes and other disposable plastic products through the integrated workflow of sheet feeding, sheet heating, forming, cutting, blowing, and waste recycling. It has a wide range of uses and is suitable for most customer requirements. PLC programming, high degree of automation, man-machine interface operation, stable, low noise, high efficiency.

Main Function：

1. Positive and negative hydraulic forming device.

2. Vacuum forming device.

3. Touch screen computer temperature module point-to-point control function.

4. Air control device.

5. Cooling device.

6. Mold, mold temperature control function.

7. Automatic punching function.

8. Automatic stacking counting function.

9.edge automatic winding function.

10. Safety protection device.

SUMMARY OF MACHINE

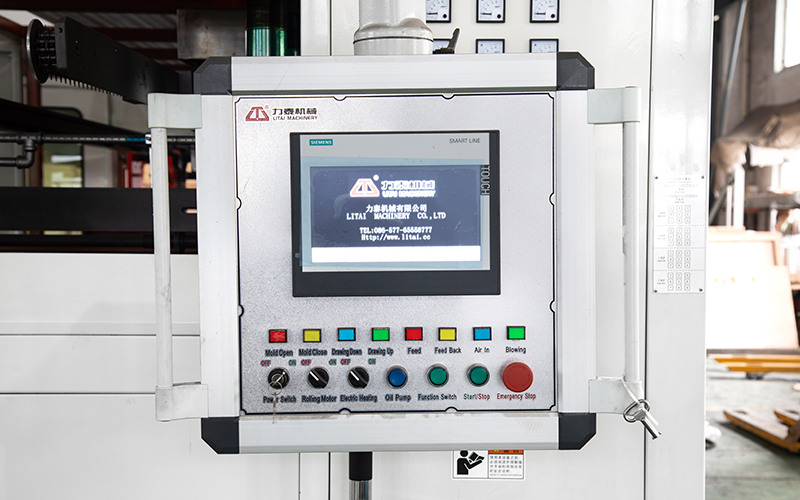

 1.Industrial manual interface and PLC of SIEMENS (Germany) make the high degree automation, accurate control and convenient operation. The document storage function simplifies the operational processes.

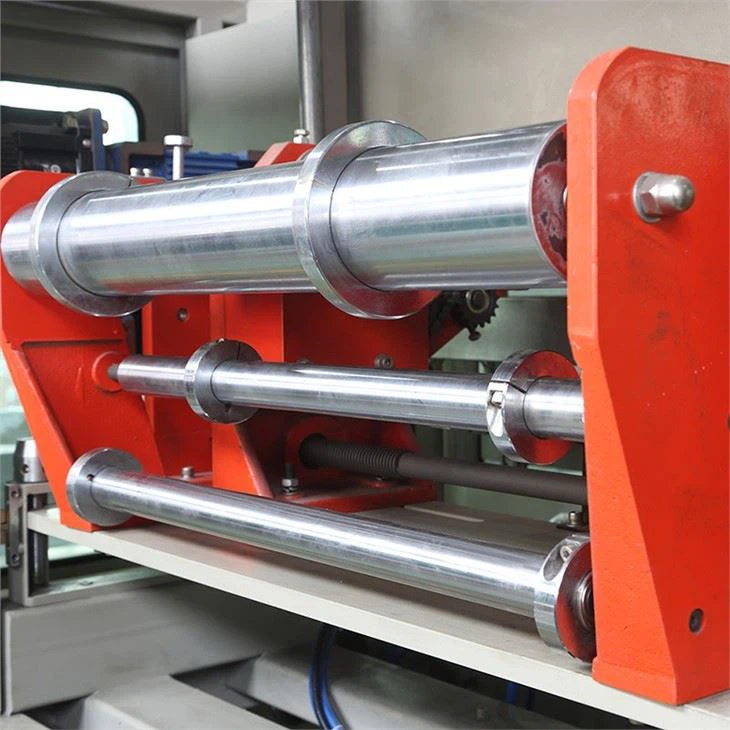

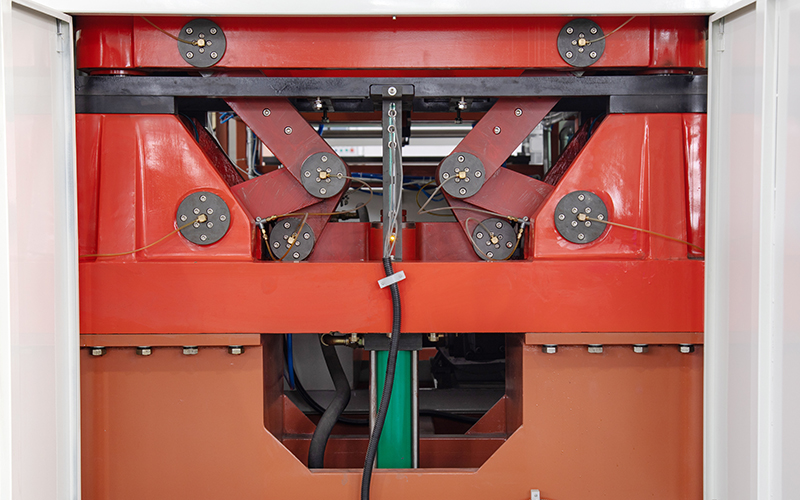

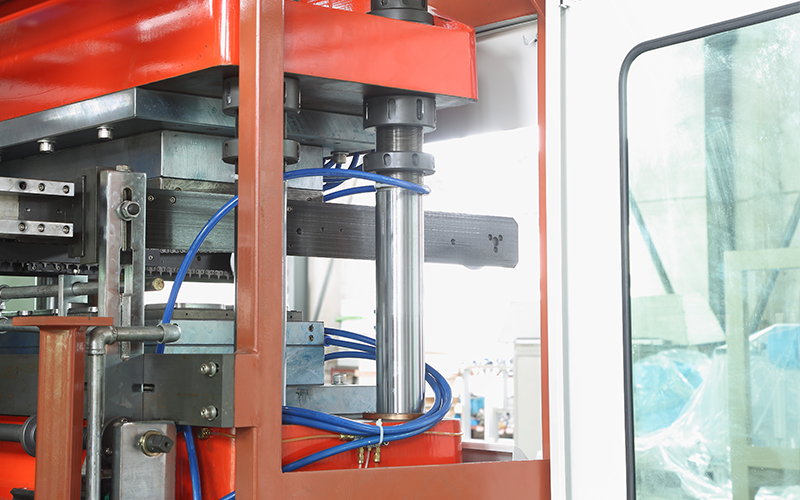

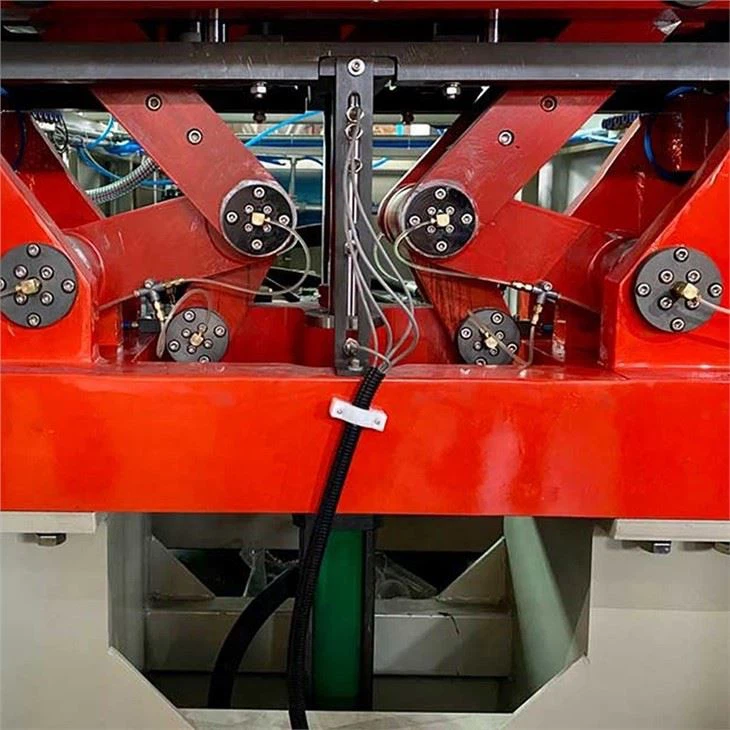

 2.Working stations is driven by stable four guiding-pillars (GCr15 steel, outside is hard chrome plated) structure. Wear
resistant, and extend equipment life.

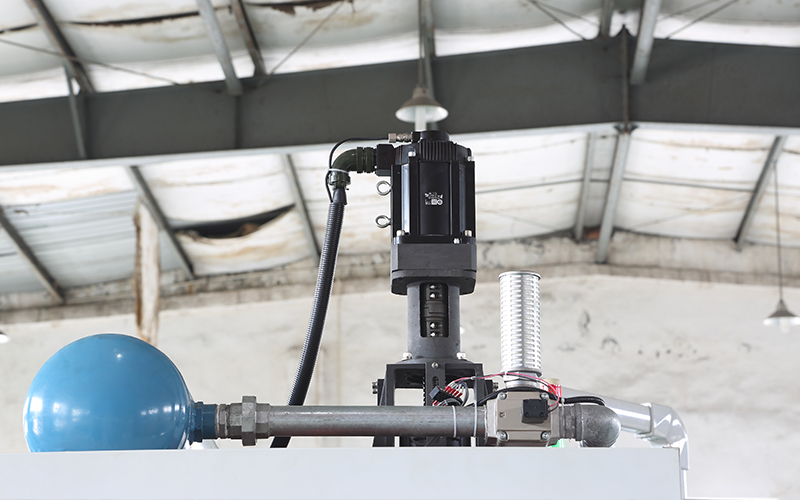

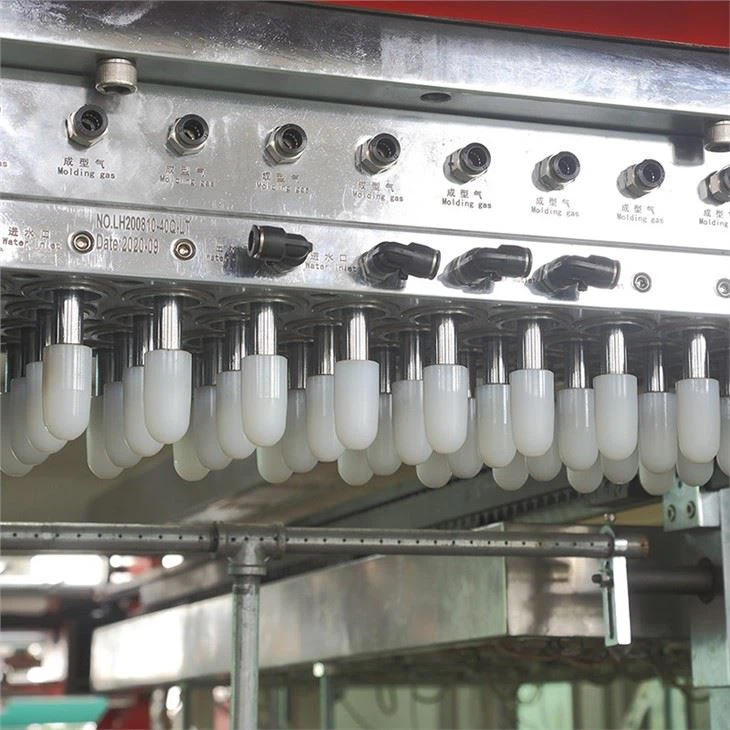

3.Stretching servomotor of YASKAWA (Japan) controls the speed of the upper and lower die, this can maintain the uniform strength to ensure that the bottom thickness of each cup is uniformly. And the servo motor also controls precisely sheet feeding to avoid wasting.

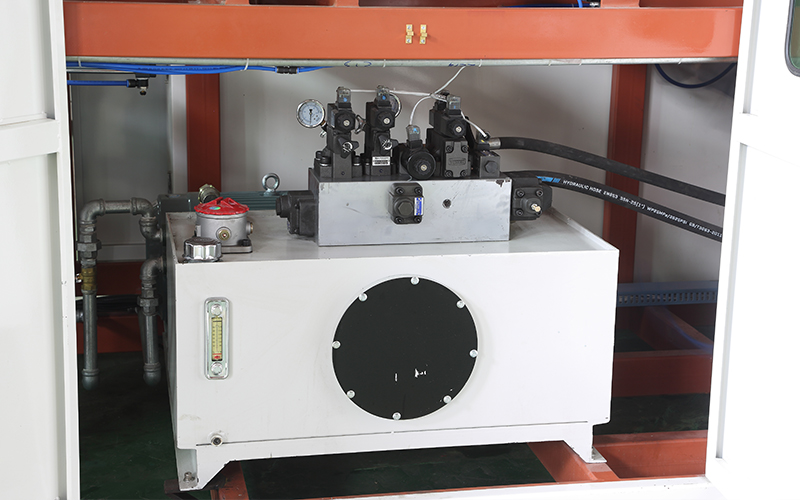

4.Hydraulic driven system can provide adequately movement speed and strongly punching power.

5.The whole part is driven by hydraulic system, which is reliable and steady. Using proximity switch of ROCKWELL (USA) leads to excellent mould positioning precision.

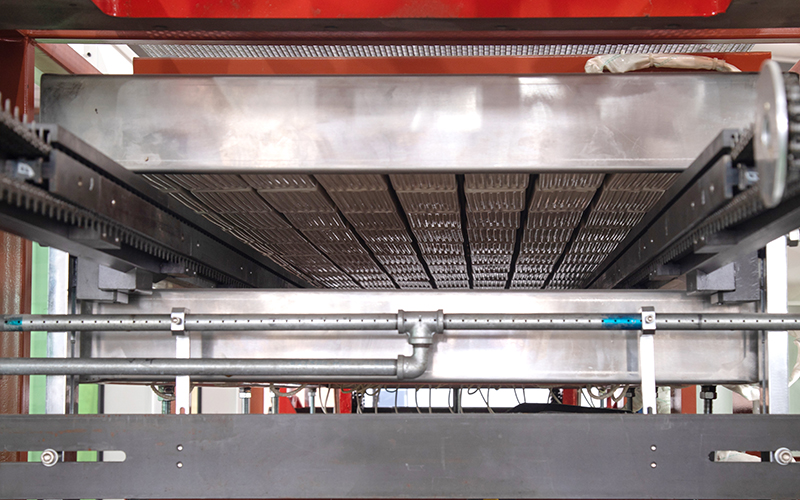

6.The heater added vacuum insulation cotton, which shows quick response rate, short processing time, and save energy.

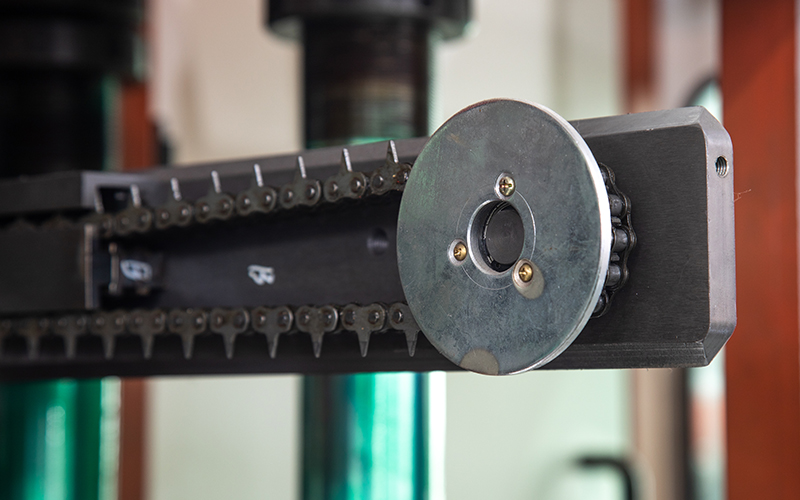

7.Sharp chain uses 65#Mn, which has higher strength, better heat resistance and elasticity than 45# steel.

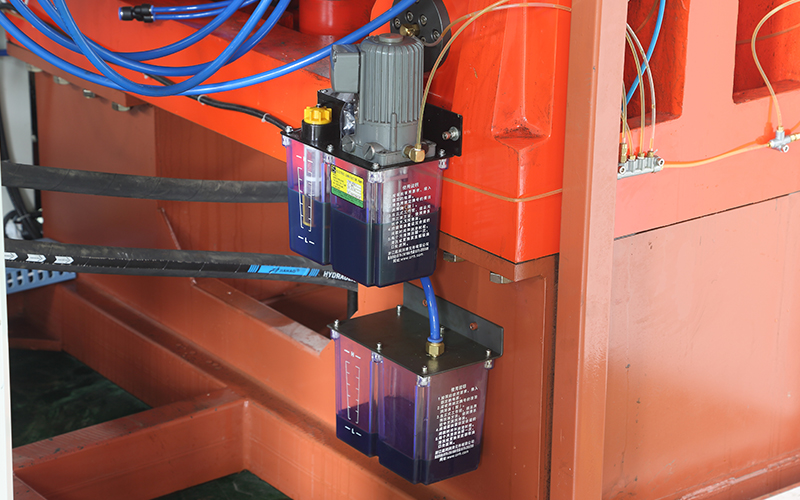

8.The electric lubricating oil pump can automatically inject lubricating oil regularly and quantitatively through the control of computer under the condition of unmanned control, which can make the rotating part of the machine get proper and reasonable lubrication.

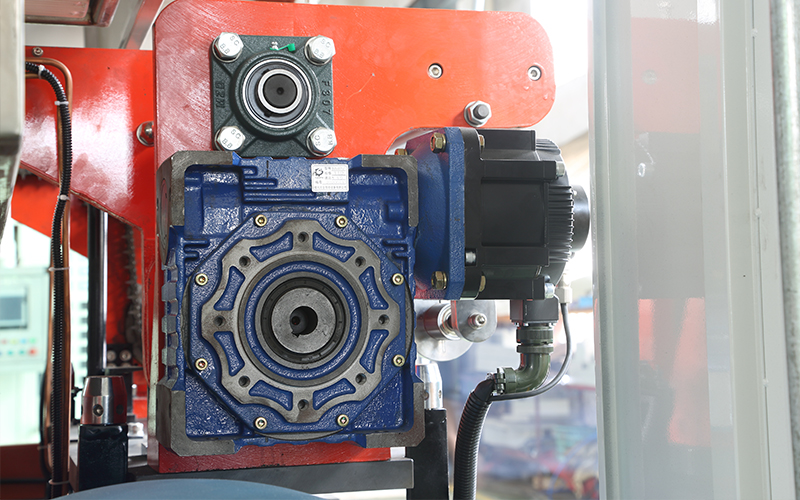

9.Sheet feeding servo motor adopt YASKAWA brand, made in Japan, the rated power is 3Kw, ensure stable operation in the process of feeding.

What is features and advantages of our plastic thermoforming machine?

1. Full servo drive, no noise, no vibration, good thermoforming and fast speed.

2. The whole machine is compact in structure and occupies a small area.

3. It can adapt to a variety of materials, and the product is 8% thicker than ordinary machine products.

4. Furnace automatic unloading device can be lowered at any time during the production process, without breaking the board and without wasting materials.

5. The temperature control system of the electric furnace adopts intelligent automatic compensation control, one control and one control

The regulator is convenient to adjust the temperature uniformly, easy to use, simple to operate, quick to heat up, and the oven is baked up and down 3 times at low temperature.

6. The forming and slitting dies are driven by servo motors, the stroke of the upper and lower dies is adjustable in both directions, and the clamping direction of the upper dies is electrically adjustable. In the mold clamping state, the height of the upper and lower molds can be adjusted easily and quickly; the direction of the lower mold clamping is easy to approach the buffer, which improves the mold clamping speed and avoids vibration.

7. PLC automatic cutting, automatic counting and automatic transmission.

8. Labor saving, only 1-2 workers are needed to pack.
