Ps Take Away Food Box Making Machine

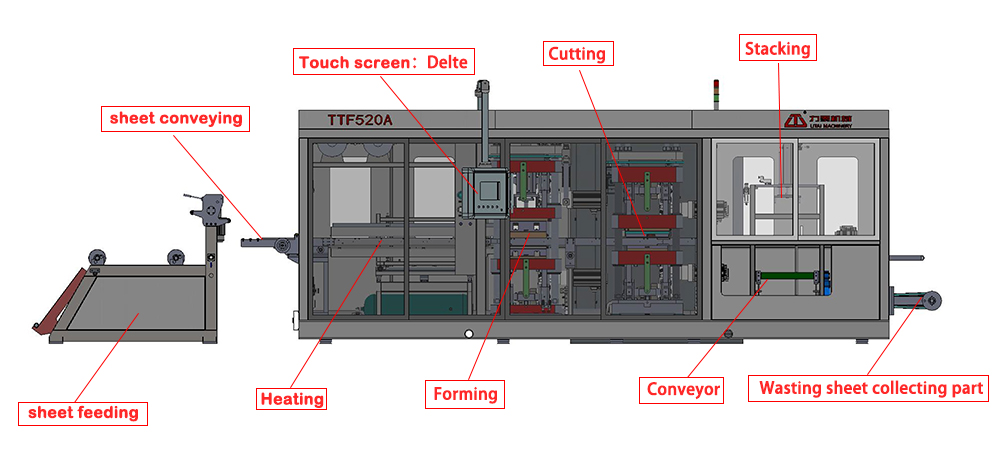

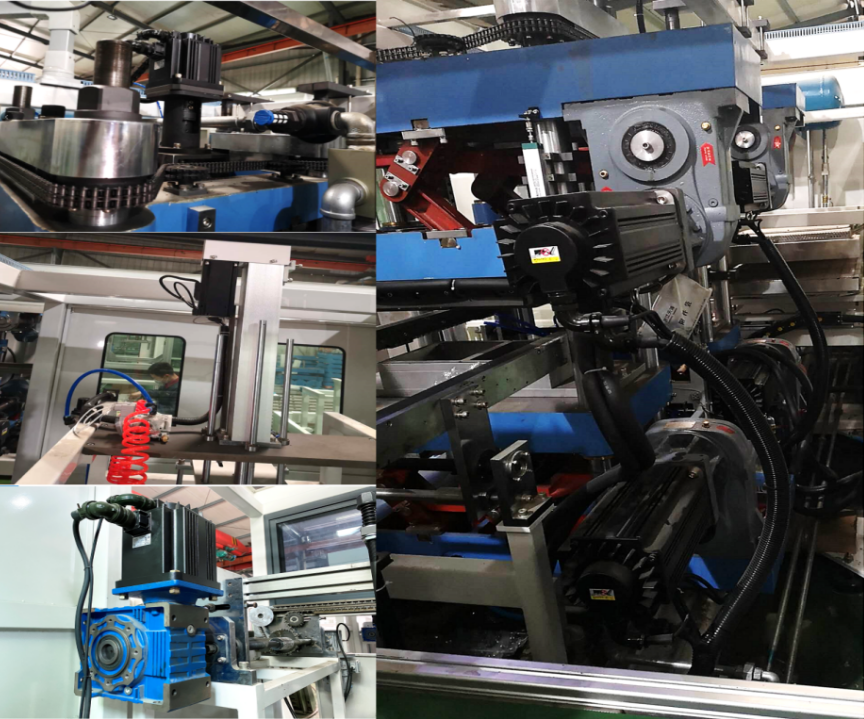

TTF series automatic thermoforming machine is a fully automatic equipment integrating feeding, heating, forming, punching, cutting, stacking, and scrap winding. The machine is completely driven by servo motors. The maximum layout is 520mm*400mm. Under this layout, plastic products such as flip-top plastic packaging boxes, outer lunch boxes, fruit boxes with holes, egg trays, sauce containers, cup lids with holes, etc. can be produced. Many household food boxes, hardware cosmetic trays, and injection trays in the medical industry, etc., the equipment runs smoothly, with low noise, high efficiency and good quality.

Send Inquiry

Download

Product Introduction

Product Description:

China made ps plastic take away food box making machine ironing take away food box making machine uses a tandem screw technology to produce fine-block cell-structured extruded polystyrene sheet with high strength and a pearl and even surface, in a continuous roll, from polystyrene thermoforming an eco-friendly blowing gas and additives. It has a user

friendly operating system with inverter controlled driving, digital temperature control and so on.

China made ps PP take away food box making machine ironing take away food box making machine, which is a kind of new-type packing withthe features of shock proofing, sound insulating, heat preservation, damp proof, safety, and good plasticity. It is used widely in the packing of food, fruit, electronic product, daily necessities, hardware product, advertisement plate, etc.

Sample:

W1 (3) b1 (8)

Y1 (14)

Application:

China made PS PP take away food box making machine ironing take away food box making machine makes different kinds type of fast food box, tray, plate, container and so on. If so, you need many moulds.

This type of developed by combining the domestic equipment and advantages, is a set of servo motor drive for an automatic forming cutting stacking. Mainly by electrical components, Taiwan and Germany pump, ensure the reliability of the equipment operation, and can be used for hot forming process many kinds of plastic material, it can produce PS, PVC, PE, PP, PET, HIPE etc all kinds of packaging products, materials used in food, medical supplies, electrical components, tourism products, toys, textile, etc.

The biggest advantage is forming cutting integration, reduce work link, produce the product directly, it can be collected in stacking area of work to save time, save the production base and greatly reduces the working intensity save artificially.

Main Function

1.positive and negative pressure forming device.

2.vacuum forming device.

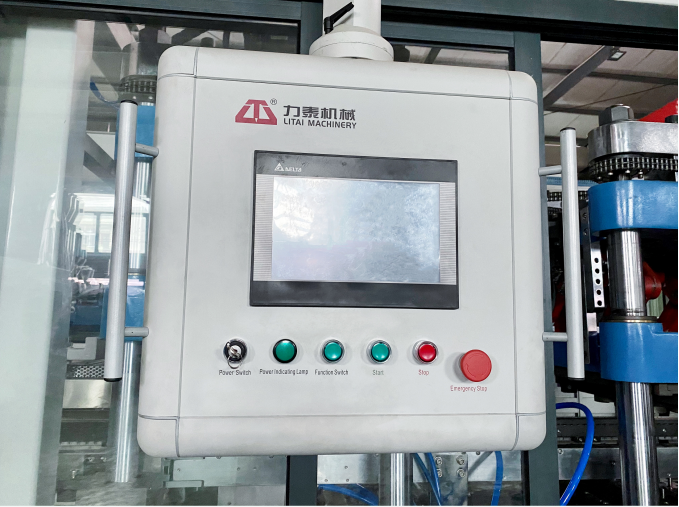

3.touch screen computer temperature module point to point control function.

4.air control device.

5.cooling device.

6.die, mold temperature control function.

7.automatic punching and cutting function.

8.automatic stack counting function.

9.edge automatic rewinding function.

10.safety protection device.

Technical Parameters:

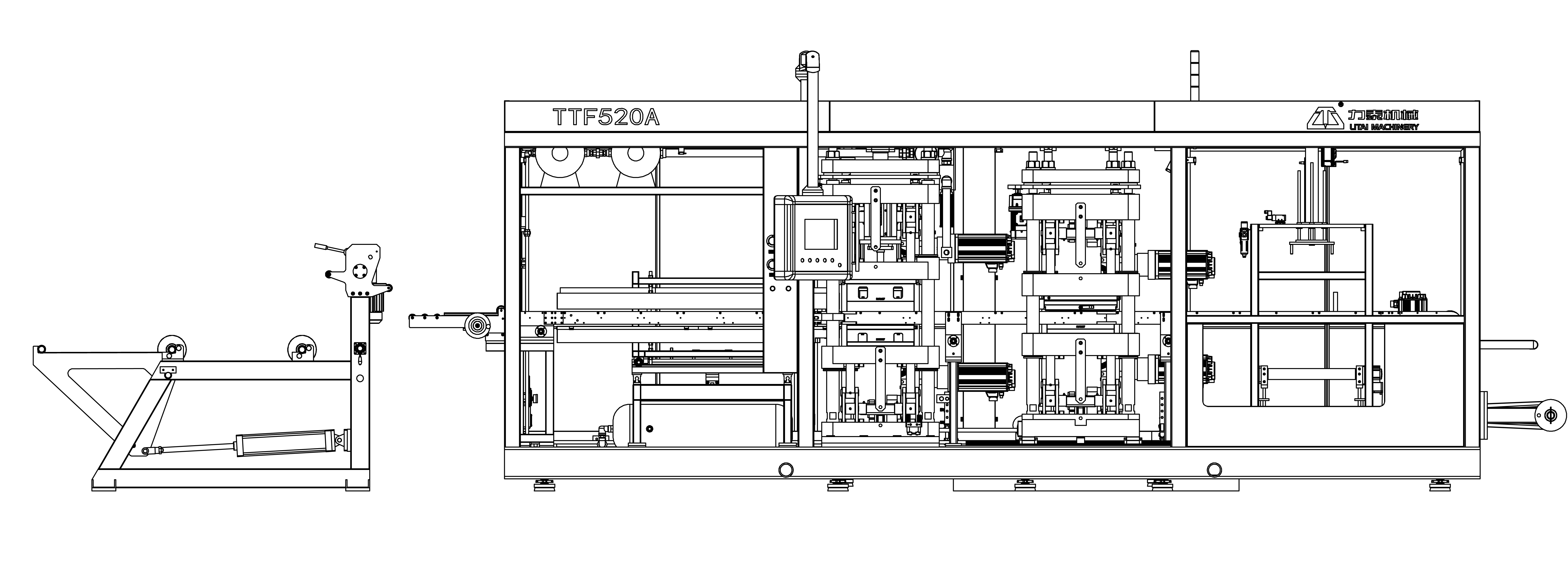

Model	TTF-520A
Forming Area	520mm x 400 mm
Forming Depth (Max.)	110mm
Sheet thickness	0.2-2.0mm
Forming Speed (Max.)	30times/min
Air pressure	0.6-0.8mpa
Air consumption	3.0 m³/min
Water consumption	0.7 m³/h
Sheet width (Max.)	550mm
Suitable Sheet	PP, PS, HIPS, PET, PVC, PLA etc.
Power supply	AC 380V, 50Hz, Three-phase, Four-wire
Used power	50Kw
Rated power	100Kw

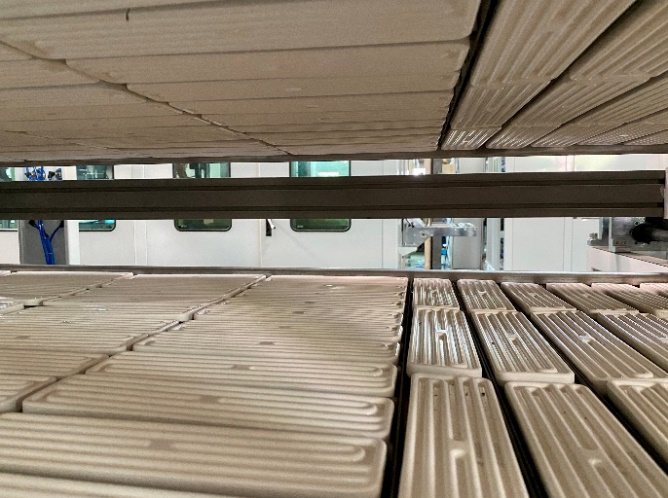

Heating power	75Kw

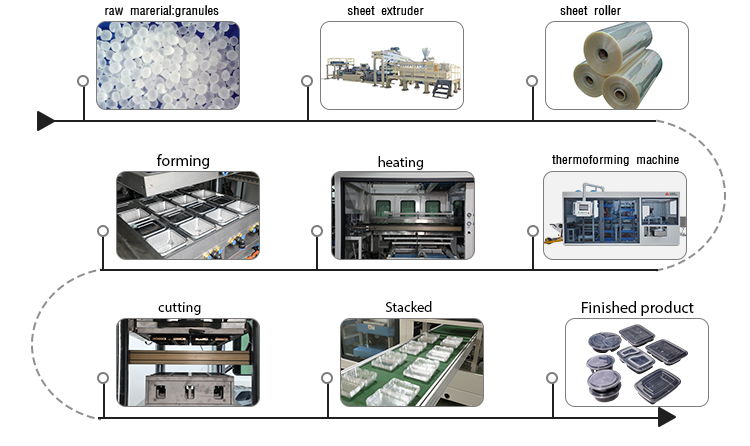

Procedure	Forming-cutting-stacking
Dimension	L9700W4600H2700mm
Weight	About 9.0T

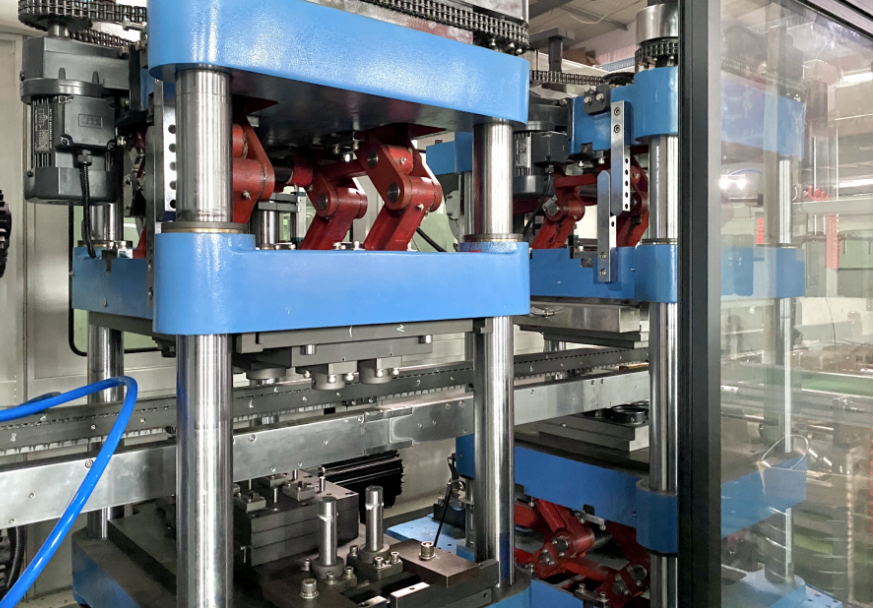

Punching station

Working stations is driven by stable four guiding-pillars (GCr15 steel, outside is hard chrome plated) structure. Wear resistant, and extend equipment life.
