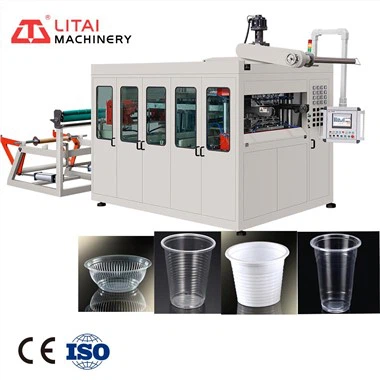

Disposable Plastic Cups Product Thermoforming Making Machinery

TQC-750 Disposable Plastic Cups Product Thermoforming Making Machinery is designed to produce cup shape products. Such as disposable plastic cup, bowls, plates, lids, etc. This plastic cup thermoforming making machine have high productin efficiency with its forming and cutting two-in-one station. Controlled by microcomputer, this cup thermoforming machine can completes the plastic cup production at one time by conveying, heating, forming and cutting, and sheet waste winding.
This Disposable Plastic Cups Product Thermoforming Making Machinery is designed to process PP, PS, HIPS, PET, and PVC sheets into a wide range of products such as plastic cups, lids, bowls, trays, plates. It is ideal for manufacturing disposable tableware and plastic cups such as cold drink cups, yogurt cups, jelly cups, ice cream cups, snack boxes, plastic bowls, and milk tea lids.

The Principle Of Plastic Cup Forming:

Thermoplastic plastic sheets are heated and placed on the mold. A plunger stretches the sheet, while compressed air presses it against the mold cavity to form the product. After the cutting process, the finished product is automatically ejected.

Mold: The mold integrates functions such as pressing, forming, cutting, cooling, and product ejection into one unit.

Disposable Plastic Cups Product Thermoforming Making Machinery of Parameters:

Key Advantages in Application Scenarios:

1. Material Adaptability: Works with PS, PP, PET, and PLA (biodegradable options), complying with FDA/EU food-contact standards.
2. High-Speed Production: Achieves 750-1,200 cycles/hour (varies by mold design), ideal for large OEM orders.
3. Customization: Interchangeable molds allow rapid switching between product types (e.g., from 8oz cups to 16oz bowls in <15 minutes).
4. Sustainability Integration: Compatible with recycled resins and bio-based plastics to meet eco-friendly demands.

Disposable Plastic Cups Product Thermoforming Making Machinery for Features:

•  All actions are controlled by PLC.Touch Screen (HMI) Operation, Easy and Convenient . All production data can record and recall any time .
• Production counting , which can auto-stop or alarm advance , it also has store function .
•  Inverter Feeding,Feeding Length Stepless adjust , High Speed , Accurate and Steady .
• Computer Intellectual Control System , which has the advantage of maintaining temperature stable , lower consumption , long life span . Individual heater control .
• Upper/Down Mold Forming, Forming , Trimming / Same position, Finished Products Stacked & Auto counting.
• Edge Sheet material & Auto rewinder function
• Feeding Chain Width can separate /synchronization electromotion adjustment.

Structure & Design

Material Conveying System

The sheet is smoothly guided into the conveyor chain through the feeding transition rollers, ensuring easy operation and more uniform heating across the sheet area.

Heating Device

Adopts Elstein ceramic heater,more durable,Higher heating efficiency.
Sensor control against sheet sagging .
Upper oven 3263x900mm, Lower oven 3023x900mm.

Hydraulic Drive

Exclusively used to drive the lower mold upward to close with the upper mold for product forming.

Operation Screen

10 inch Siemens touch screen, multi-language Interface.

Forming Station

The forming Station adopts in-mold cutting,
Max mold size: 750*480mm,
Max forming depth: 180mm,
Max stroke: 260mm,
Forming by air pressure and Vacuum.

Servo Motor

Primarily used to drive the stretching head up and down for product forming.

Waste Recycling

Continuously collect and wind trim waste generated during the thermoforming process, Maintain clean production environment, enable efficient material recycling, ensure uninterrupted machine operation.

Robotic Arm

By adding a robotic arm, cups are automatically picked from the mold and placed onto the conveyor belt. This improves efficiency, reduces labor costs, and ensures more orderly product stacking.

Conveyor Belt

Facilitates manual product collection, ensuring both safety and efficiency.
