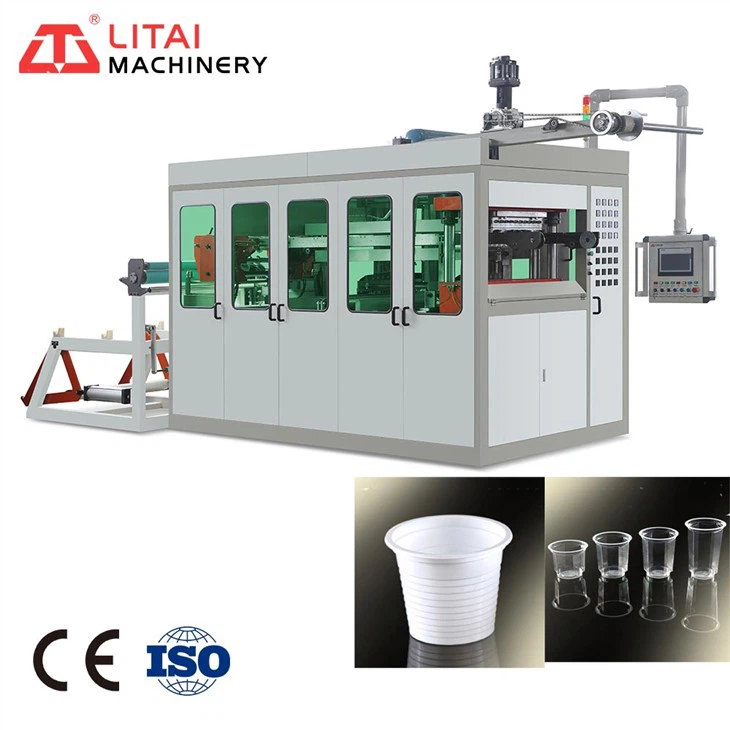

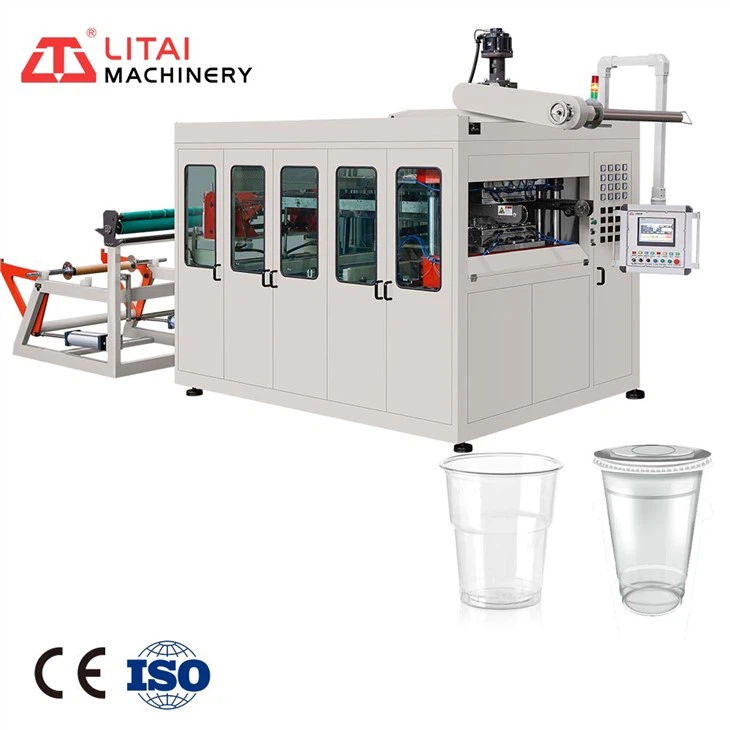

Plastic Thermoforming Machine For PP/PS/Pet Cup
High Efficiency: Reduces cycle time by 30% with servo-motor drive.
Precision: ±0.01mm repeatability for complex forming.
Certified: CE & ISO 9001 Compliant standards.
Customizable: Worktable size and stroke tailored to needs.
Litai thermoforming machine adopts the hydraulic system with pneumatic system, compared with the traditional mechanical cam system, its advantages are less working noise, stronger punching force, more stable forming quality and longer service life..
Plastic Thermoforming Machine For Features:
* All actions are controlled by PLC.Touch Screen (HMI) Operation, Easy and Convenient . All production data can record and recall any time .
* Production counting , which can auto-stop or alarm advance , it also has store function .
* Inverter Feeding,Feeding Length Stepless adjust , High Speed , Accurate and Steady .
* Machine process is from sheet feeding,heating,strentching,forming,In-mould cutting in one stroke .
Plastic Thermoforming Machine For Technical parameters:
| Model | TQC-750 | TQC-650B |
| Mould Size (Max.) | 750*480mm | 650*300mm |
| Max. Forming Depth | 125-180mm(custom height) | 125mm |
| Max. Forming Speed | 30times/min | |
| Sheet Thickness | 0.3-1.8mm | |
| Suitable Sheet Width | 770mm | 660mm |
| Suitable Sheet | PP, PS, HIPS, PET, PVC, PLA etc. | |
| Air Pressure | 0.6-0.8mpa | |
| Air Consumption | 3.0m³/min | 2.0m³/min |
| Water Consumption | 0.7m³/h | 0.5m³/h |
| Rated Power | 173Kw | 98Kw |
| Heating Power | 146Kw | 78Kw |
| Power Supply | AC 380V,50Hz, Three-phase, Four-wire | |
| Dimension | L8500*W2300*H3300mm | L7000*W2000*H3100mm |
| Weight | About 8T | About 6T |

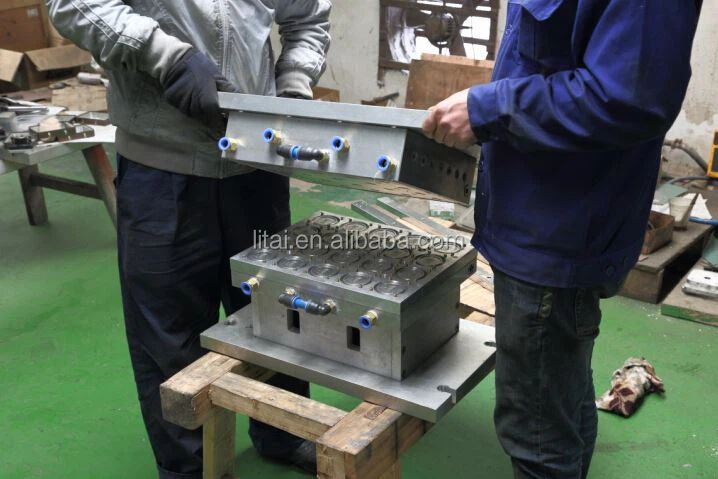

Samples:
