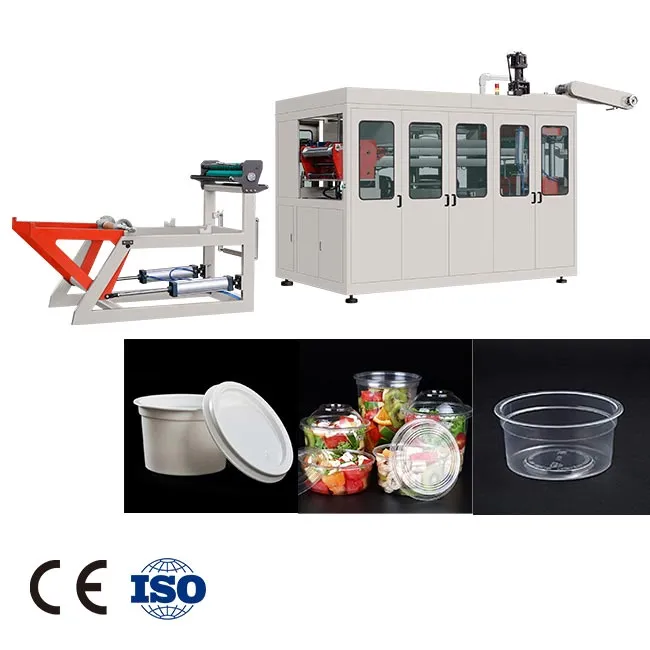

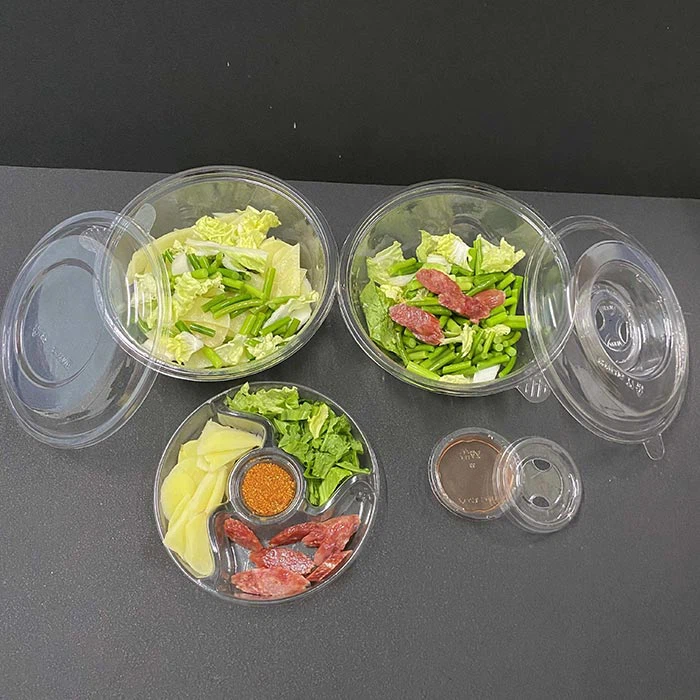

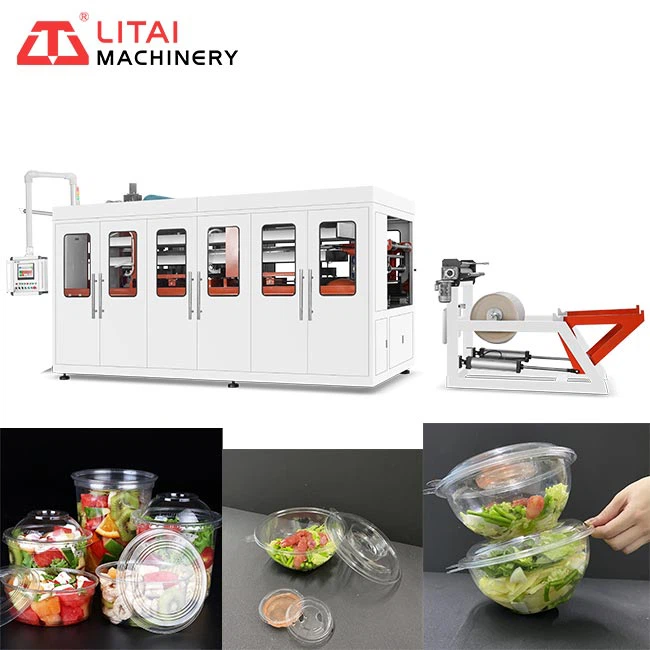

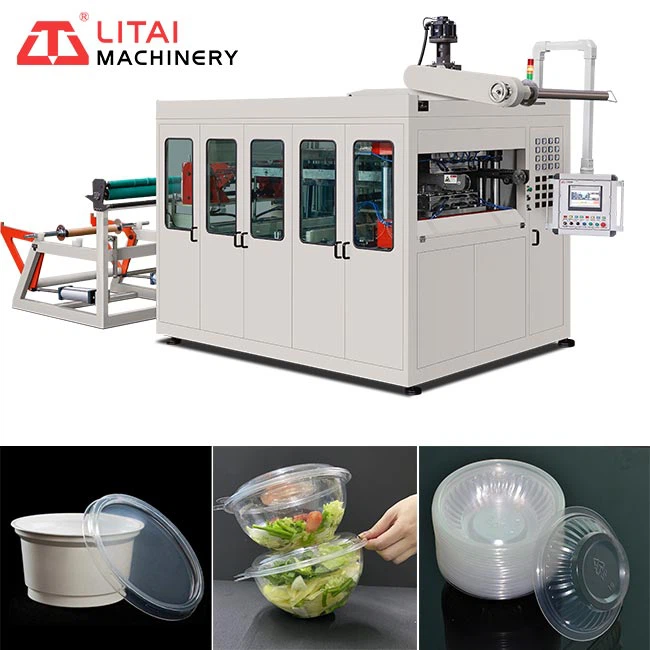

Plastic Salad Bowl With Lid Thermoforming Machine
Model: TQC-650B
Mould Size (Max.): 650mm x 300 mm
Forming Depth (Max.): 125mm/180mm
Sheet width (Max.): 660mm
Main Motor Power: 98Kw
Heating power: 78KW
Dimension: L7000 x W2000 x H3100mm
Suitable Sheet Material:PP / PET / PVC / PS / HIPS / GPPS / Biodegradable Materials

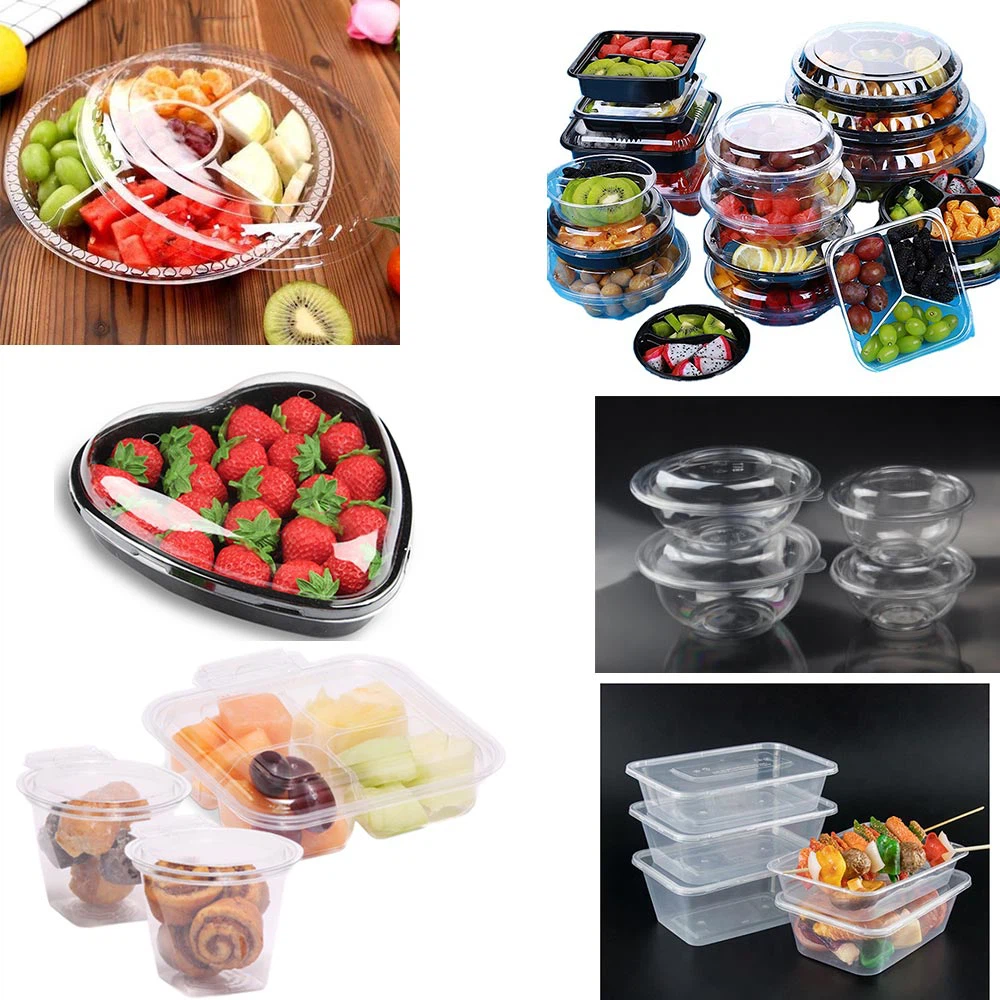

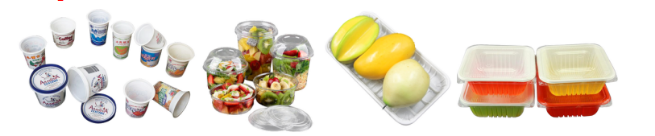

Using roll-fed plastic sheets such as PP, PET, PLA, or HIPS, the machine completes the full process of heating, forming, cutting, and stacking in one streamlined workflow.ApplicationThe machine using plastic sheet as raw material to produce corresponding disposable plastic products. Typical product to be mainly used in daily life and food & beverage industry such as disposable cup, cups for jelly, yogurt, butter, cream, container or tray for supermarket food package and more. This machine features fully automation, stable performance, easy operation, high efficiency and excellent aesthetical presentation.
Main Features of Plastic Salad Bowl With Lid Thermoforming Machine
1. The sheet feeding is controlled by servol motor.2. Adopts Four pillars to fix the mould, more stable.3. Each area temperature is controlled by one Temperature controller 4.All processing steps (sheet feeding,heating , stretching , forming , in-mould cutting ) are full-automatic5.We can customize different cup molds according to the customer's request to provide a better cup forming solution. To ensure that the mold material with new aluminum.
Plastic Salad Bowl With Lid Thermoforming Machine of Parameter
Model | TQC-750 | TQC-650B |
Mould Size (Max.) | 750*480mm | 650*300mm |
Max. Forming Depth | 125-180mm(custom height) | 125mm |
Max. Forming Speed | 30times/min | |
Sheet Thickness | 0.3-1.8mm | |
Suitable Sheet Width | 770mm | 660mm |
Suitable Sheet | PP, PS, HIPS, PET, PVC, PLA etc. | |
Air Pressure | 0.6-0.8mpa | |
Air Consumption | 3.0m³/min | 2.0m³/min |
Water Consumption | 0.7m³/h | 0.5m³/h |
Rated Power | 173Kw | 98Kw |
Heating Power | 146Kw | 78Kw |
Power Supply | AC 380V,50Hz, Three-phase, Four-wire | |
Dimension | L8500*W2300*H3300mm | L7000*W2000*H3100mm |
Weight | About 8T | About 6T |

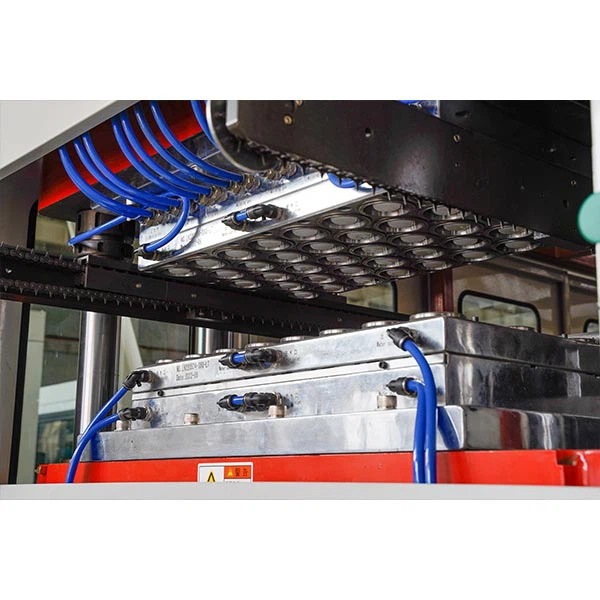

Machine Detail
WHY CHOOSE US
1.our engineer has over 15 years experience about plastic and machines.
2.we have richful sources for raw material, moulds and spare parts.
3.professional shipping team in order to protect machines during loading.
4.Advanced production equipment: We have advanced plastic thermoforming production lines and related equipment.
5.Strong technical force: our production and the scale of production staff have many years of production experience. We can do many kinds of design that others can not do. Making customer satisfaction.
