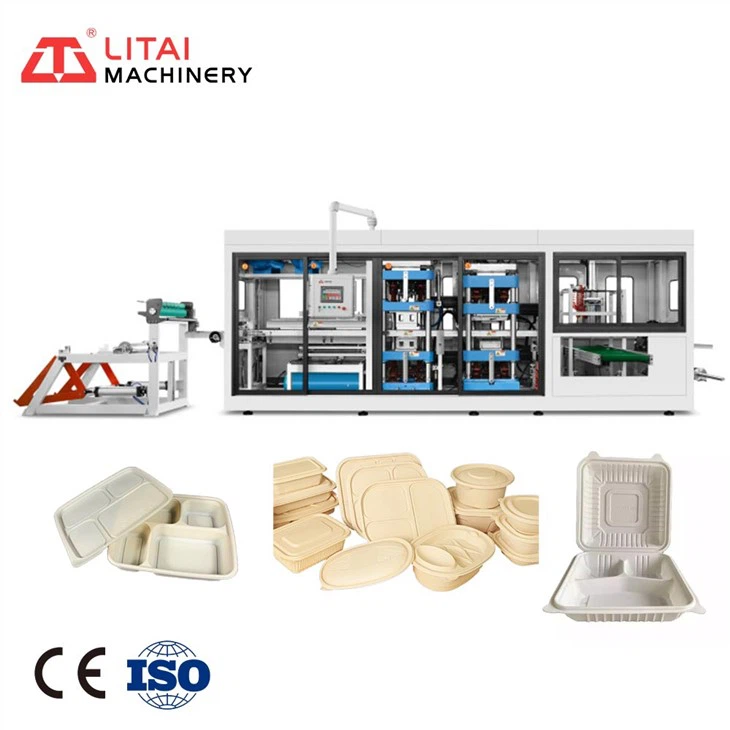

Plastic Packaging Takeaway Food Container Thermoforming Machine

Model: TTF-520AF
Station：Four station
Max.Forming Area: 520*400mm
Max.Forming Height: 110mm
Sheet thickness：0.2-1.6mm
Forming Speed (Max.): 30times/min
Power supply: AC 380V, 50Hz, Three-phase, Four-wire
Application: trays, containers, boxes, lids, etc.
Core Components: PLC, Engine, Bearing, Gearbox, Motor, Gear, Pump
Suitable Material: PP, PS, HIPS, PET, PVC, PLA etc.

Send Inquiry

Product Introduction

The operation of plastic packaging takeaway food container thermoforming machine is more humanizing, handle easily and simple to operate. The frame structure of our machines are magnificent strong and adopts superior materials to ensure the stability of equipment operation. Especially for our environmental friendly food container making machine, only need 2 workers,you can reach your goal.
As the professional plastic thermoforming machine manufacturer, we keep pace with time, and keep the technical research.

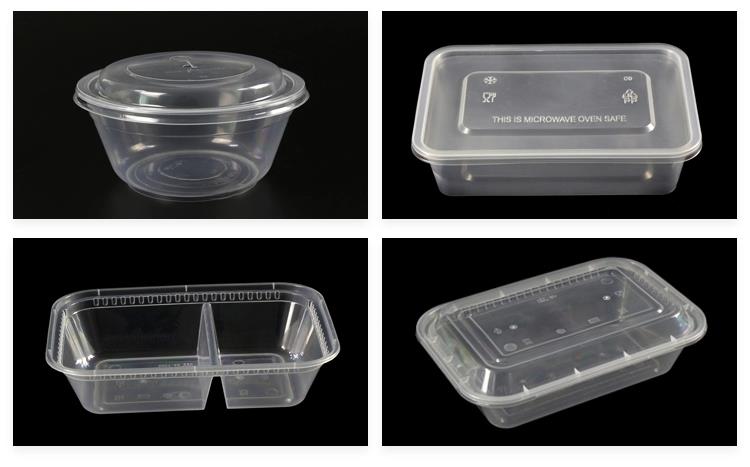

Samples:

Plastic Packaging Takeaway Food Container Thermoforming Machine

Techinical Parameter of Food Container Thermoforming Machine

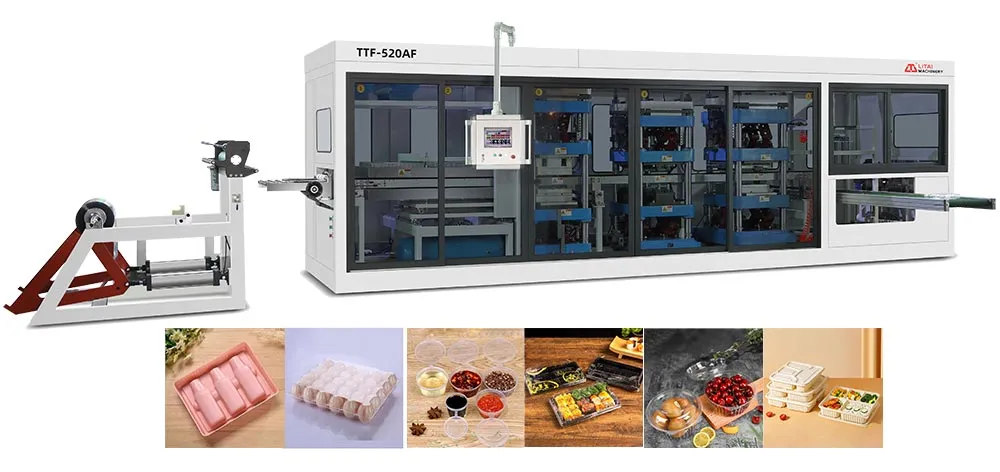

Model	TTF-520AF	TTF-520A
Station	Four station	Three station
Mould Size (Max.)	520*400mm
Forming Depth (Max.)	110mm
Sheet thickness	0.2-1.6mm
Forming Speed (Max.)	30times/min
Air pressure	0.6-0.8mpa
Air consumption	3.0m³/min
Water consumption	0.7m³/h
Sheet width (Max.)	550mm
Suitable Sheet	PP, PS, HIPS, PET, PVC, PLA etc.
Power supply	AC 380V, 50Hz, Three-phase, Four-wire
Rated power	136Kw	120Kw
Heating power	75Kw	75Kw

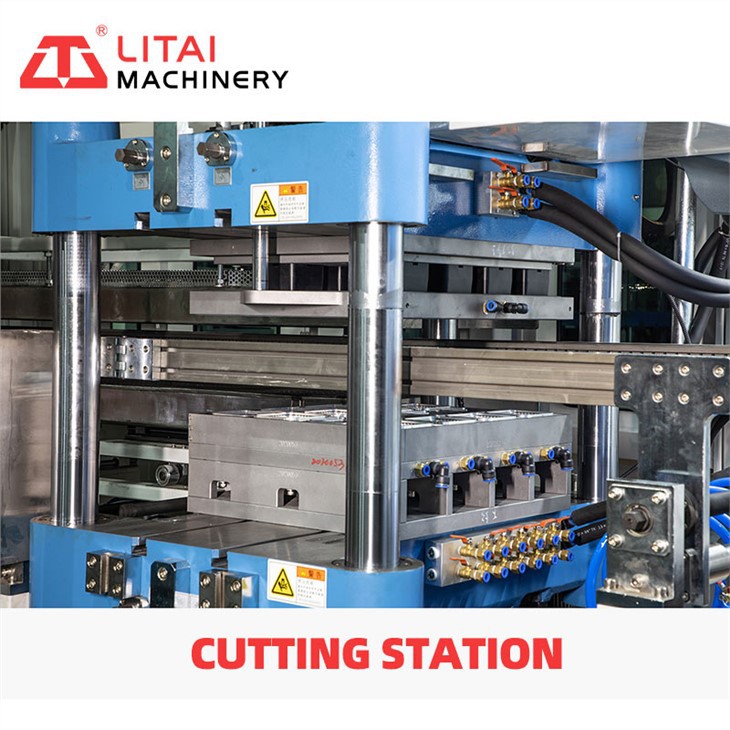

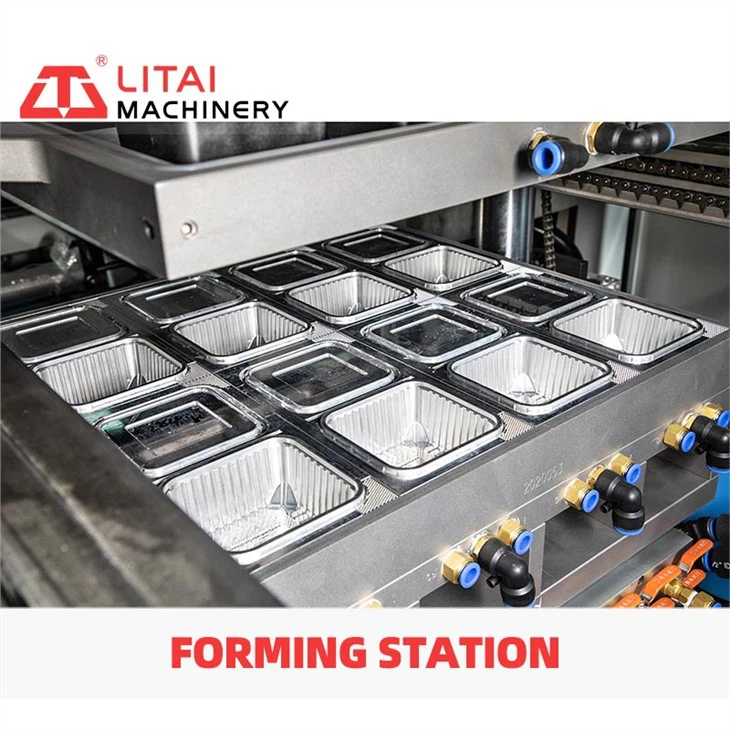

Procedure	Forming-punching-cutting-stacking
Dimension	L10800W4650H2670mm	L8200W4650H2670mm
Weight	About 11.0T	About 9.0T

Machine detail

1.Every station is driven by the eccentric crank linkage structure.

2.Feeding and heating part have optoelectronic switch in order to prevent error operating from production process.

3.The toothed chain made of 65#Mn, helping convey sheet. Aluminum rails with water cooling, save water.

4.The machine adopts PID temperature system, it shows high precision, and temperature control tolerance ＜1℃.

5.There is a rapid mould change device, which shortens the time for mould change extremely.

6.There is a rapid mould change device, which shortens the time for mould change extremely.

7.Low barycenter and height of finished products as well as steady running ensures easy operation and friendly viewing.

8.There is an alarm function of the sliding doors.

Service and Warranty:

1.Our own engineers could be asked by you overseas for your requests. You can also ask your workers or yourself to our factory to learn.
2. Warranty is 1 year since the machine is arrived in buyer's place.
3. During the warranty time, if the wearing parts have been damaged by non-person or can not use, seller will send the spare parts to buyer for free. But buyer have to bear the transportation charge.
4. Technical support supplied by seller forever.
