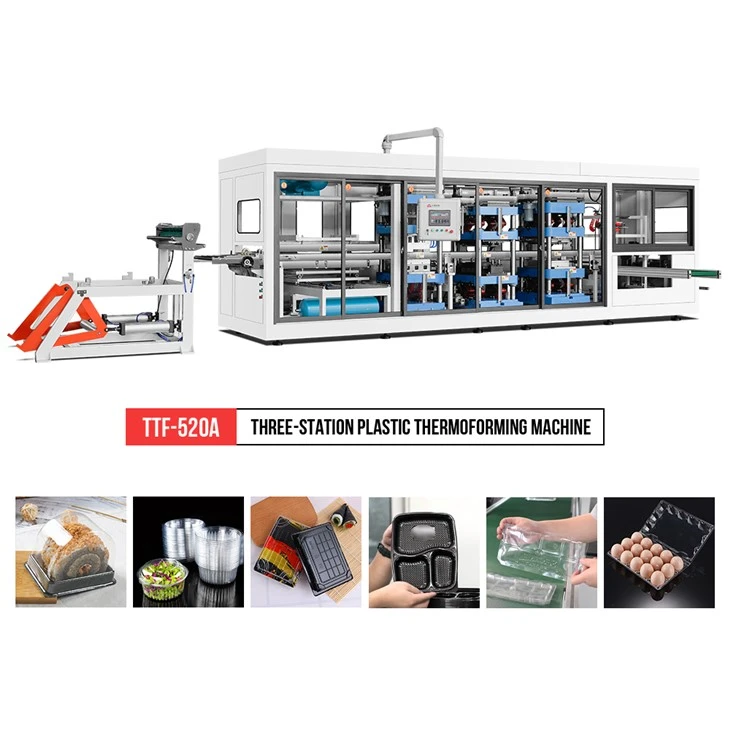

Thermoforming Machine For PP Trays

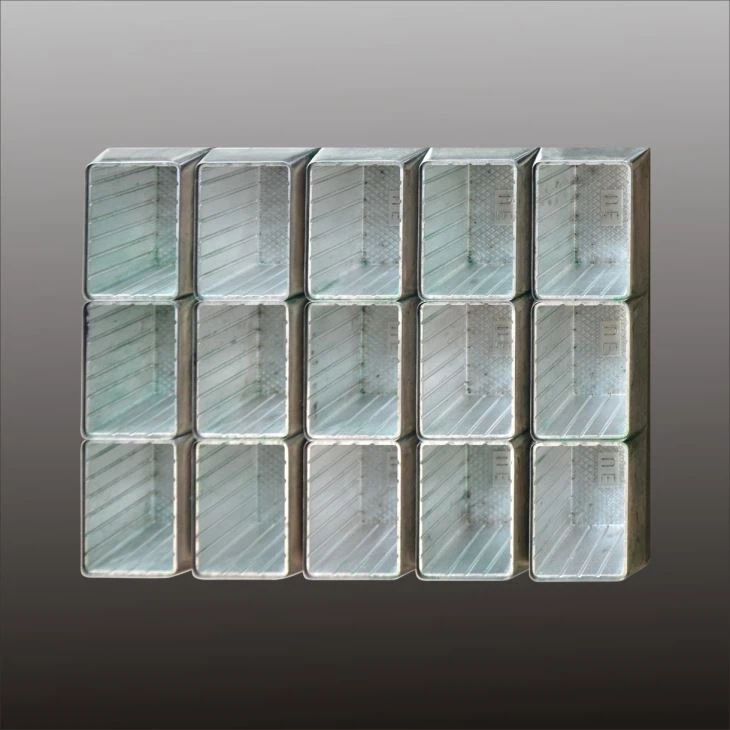

Thermoforming Machine for PP trays is suitable to handle different materials, such as A-PET, R-PET, C-PET, HIPS, PP, PLA, PVC, and barrier material, and to produce many items: trays, lids, fruits, and vegetable boxes, flower pots, clamshells, nursery trays, and plates. It can make some products that are unable to be made in one station thermoforming machine, like for example PLA products, plastic lids or containers which has holes, packing containers (fruit box, egg trays) with body and cover connected, etc.

Parameter of Thermoforming Machine For PP Trays:

Thermoforming Machine For PP Trays Application:

The machine is totally driven by servo motor which is forming, cutting and stacking in one line. Suitable for producing plastic trays, containers, food boxes and etc.The machine adopts the most advanced plastic thermoforming technology and was developed to be a forming machine of high production efficiency

Specification:

1. PLC Control Positive and Negative Thermoforming Machine

2. It's suitable for HIPS, PS, PP, PVC, PET and other plastic sheet forming,Processing the high transparency,high tensile,gently stretch,circular,square Shape,irregular,top and bottom both side stretch,turnup etc. It produce variety of medical industry blister lining,the food industry's lunch box, tray, dish, bowl, cover, electronic industry and other industrial packaging.



Structure & Design

Explore the detailed structure and configuration to see how our machine ensure precision, stability, and efficiency.



Heating Device

Energy Efficiency save 30%
Elstein ceramic heaters, individually adjustable(line by line)
Can control the temperature by PLC directly

Operation Screen

Live Data Display – Shows temperature, pressure, and cycle status in real time.

mergency Stop & Alarms – Ensures quick response to operational hazards.

Multi-Language Support – Accommodates global operators.

Forming Station

Max mould size:520*400mm
Max depth:110mm
Servo driven plug assist on top forming station
Stable square struction,provide stable forming



Cutting Station

Servo motor driven Movable cutters, to adjust the cutting by itself High-quality cutters, save spare parts costs Top nut locking structure, providing stronger force

Stacking Station

Different stacking schemes can be formulated according to the customer's requirements.

Waste Recycling

Edge trim is fed to the waste rewinding system for recycling. Its special clutch automatically cuts power when the roll becomes too large, preventing overload and extending motor lifespan.

FAQ

1: What is a thermoforming machine used for?

A thermoforming machine is primarily used to shape plastic sheets into custom packaging, trays, containers, and product components. It is widely applied in industries such as food packaging, medical device production, automotive parts, and consumer goods. By heating plastic sheets and forming them over molds, thermoforming machines provide high-efficiency, cost-effective, and precise plastic forming solutions suitable for large-scale manufacturing.

2: What type of plastic is used for thermoforming?

The most commonly used plastics for thermoforming include PP, PS, HIPS, PET, PVC, PLA etc. These materials are selected for their excellent moldability, durability, and clarity, making them suitable for packaging, trays, and protective components. Material choice depends on factors such as product application, temperature resistance, and food safety requirements, ensuring reliable performance in industrial and consumer applications.

3: Is thermoforming safe for food packaging?

Yes, thermoforming is safe for food packaging when using FDA-approved plastics such as PET, PP, or PS. Thermoformed containers and trays provide hygienic, durable, and customizable solutions for fresh, frozen, and processed foods. Proper selection of materials and adherence to food safety standards ensure that thermoforming machines produce compliant packaging suitable for commercial and retail food applications.
