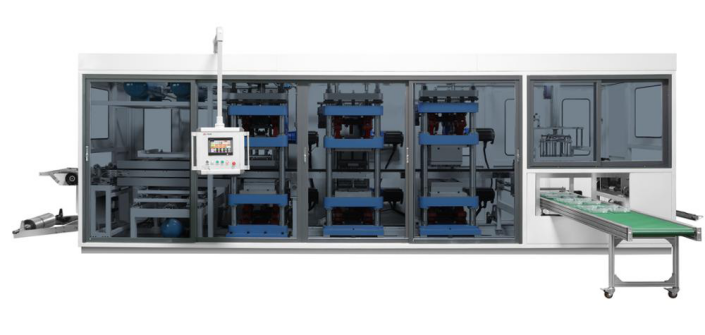

Snacks Trays Thermoforming Machine
Model: TTF-520AF
Station：Four station
Max.Forming Area: 520*400mm
Max.Forming Height: 110mm
Sheet thickness：0.2-2mm
Forming Speed (Max.): 30times/min
Power supply: AC 380V, 50Hz, Three-phase, Four-wire
Application: trays, containers, boxes, lids, etc.
Core Components: PLC, Engine, Bearing, Gearbox, Motor, Gear, Pump
Suitable Material: PP, PS, HIPS, PET, PVC, PLA etc.
What's this machine can do?
Snack Trays Thermoforming Machine is widely used for thermoforming packaging container, such as PP/PET cups, boxes, bowls, all thin wall thickness containers. Also milk cups, jelly cups, snow cake cups, disposable drinking water cup, instant noodles bowl, snack box, food box etc.
It is suitable for processing different materials, such as PP, PS, HIPS, PET, PVC, PLA etc. processing high transparency, high stretch, shallow stretch, round, square, upper and lower two-way stretch, flanged and other products, including trays, lids, fruit and vegetable boxes, flower pots, shells, seedling trays and plates, etc.
Parameter of Snacks Trays Thermoforming Machine
| Model | TTF-520AF |
| Station | Four station |
| Mould Size (Max.) | 520*400mm |
| Forming Depth (Max.) | 110mm |
| Sheet thickness | 0.2-2mm |
| Forming Speed (Max.) | 40times/min |
| Air pressure | 0.6-0.8mpa |
| Air consumption | 3.0 m³/min |
| Water consumption | 0.7m³/h |
| Sheet width (Max.) | 550mm |
| Suitable Sheet | PP, PS, HIPS, PET, PVC, PLA etc. |
| Power supply | AC 380V, 50Hz, Three-phase, Four-wire |
| Rated power | 136Kw |
| Heating power | 75Kw |
| Procedure | Forming-punching-cutting-stacking |
| Dimension | L10800*W4200*H2800mm |
| Weight | About 11.0T |

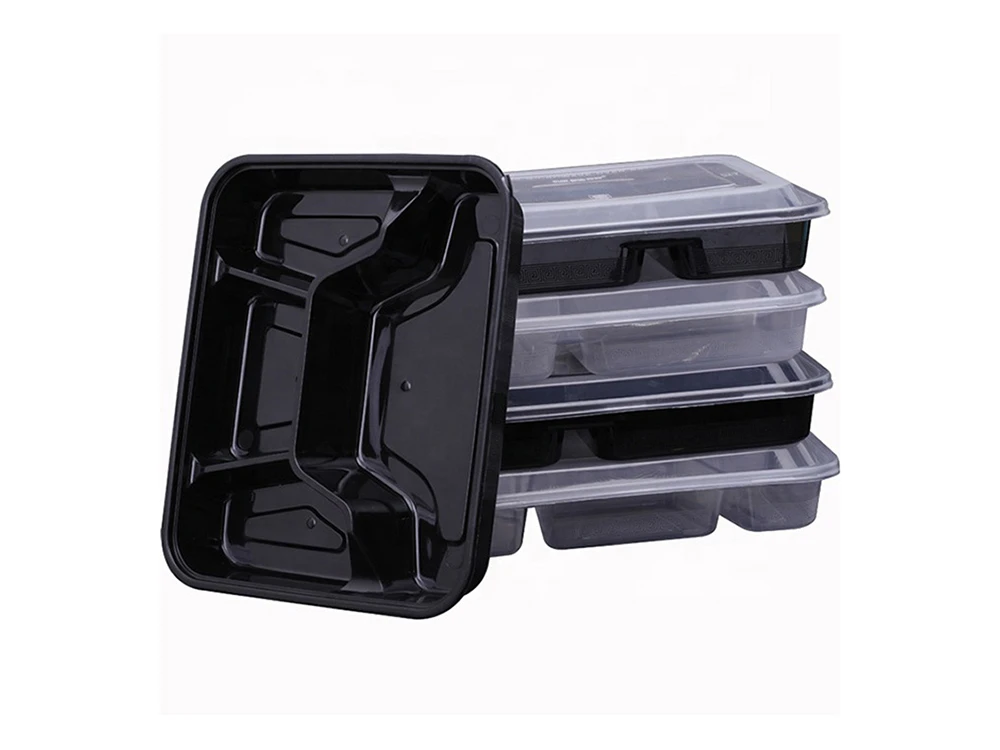

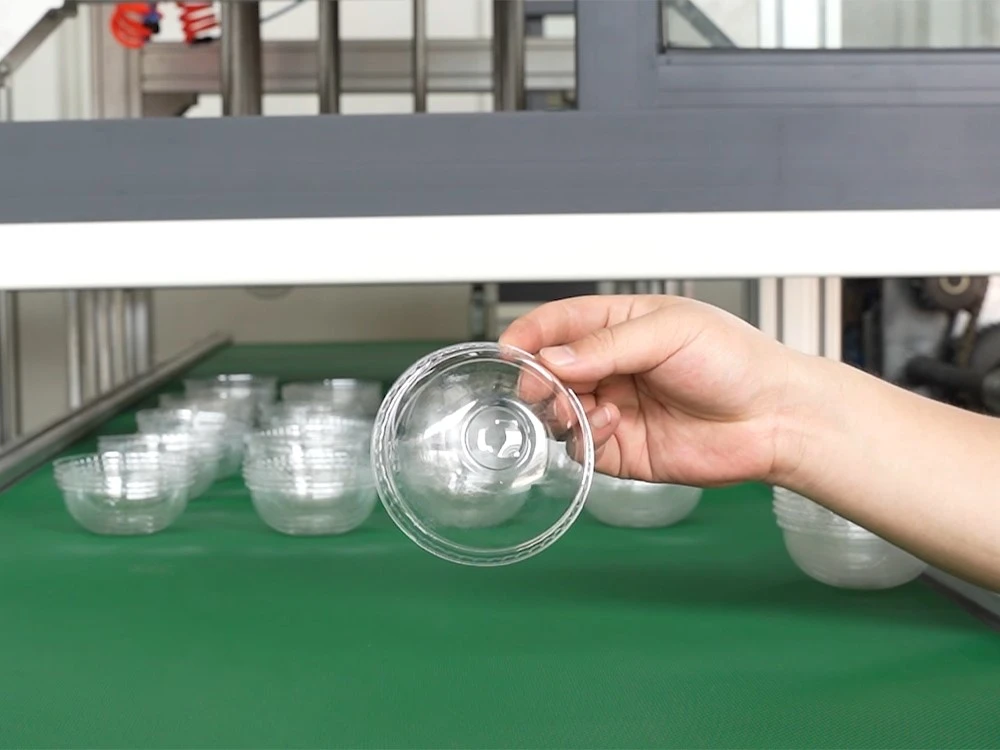

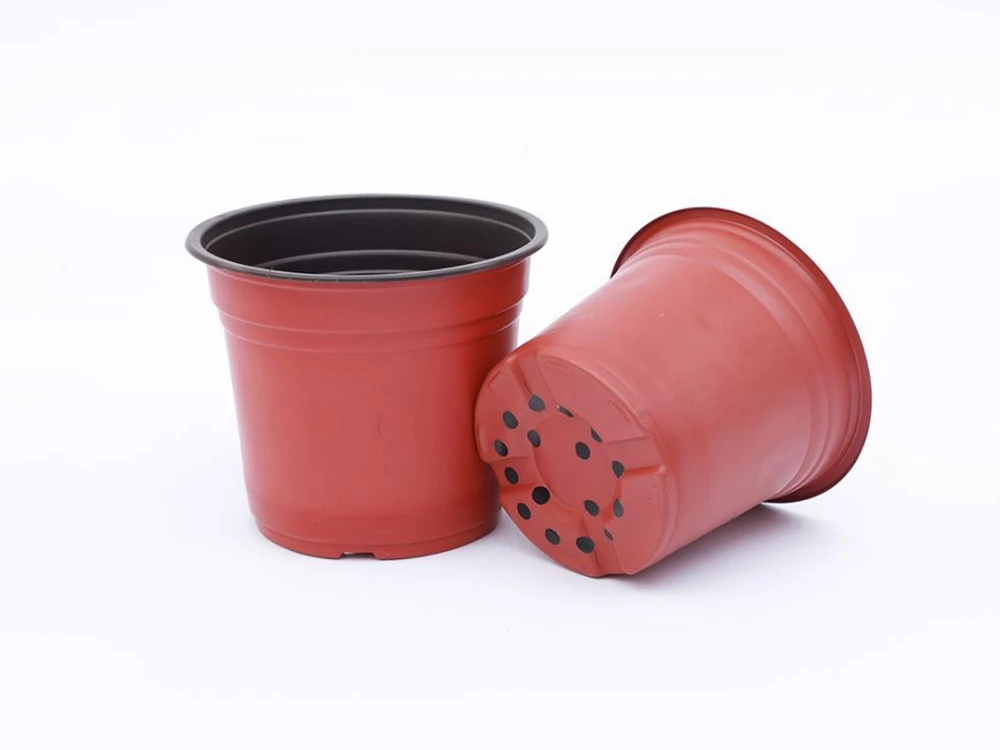

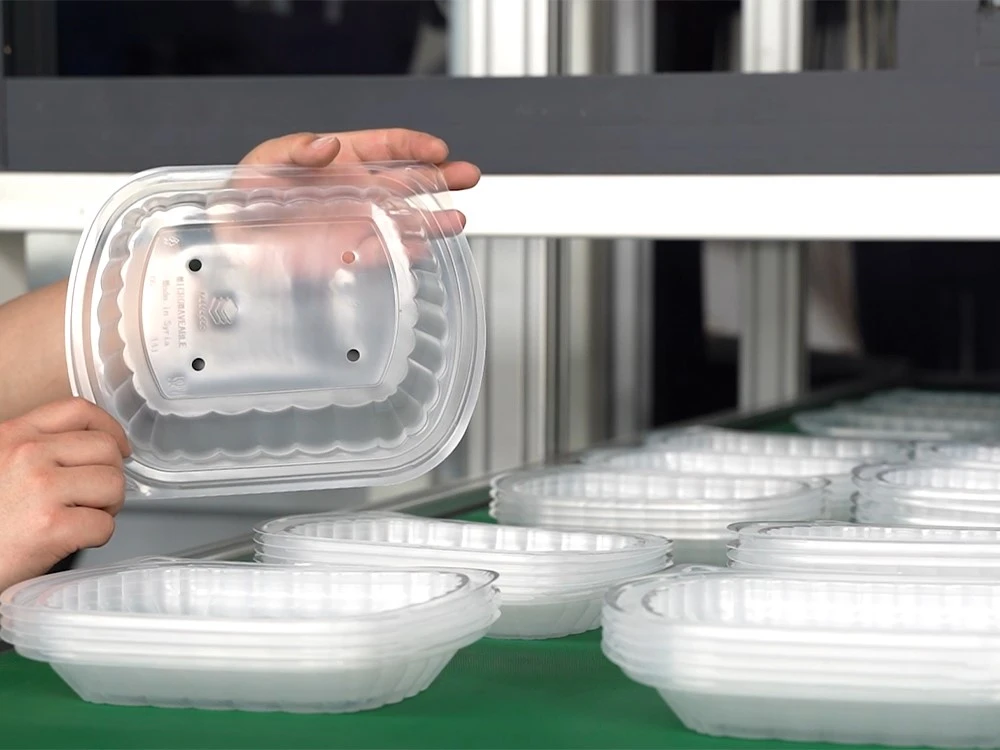

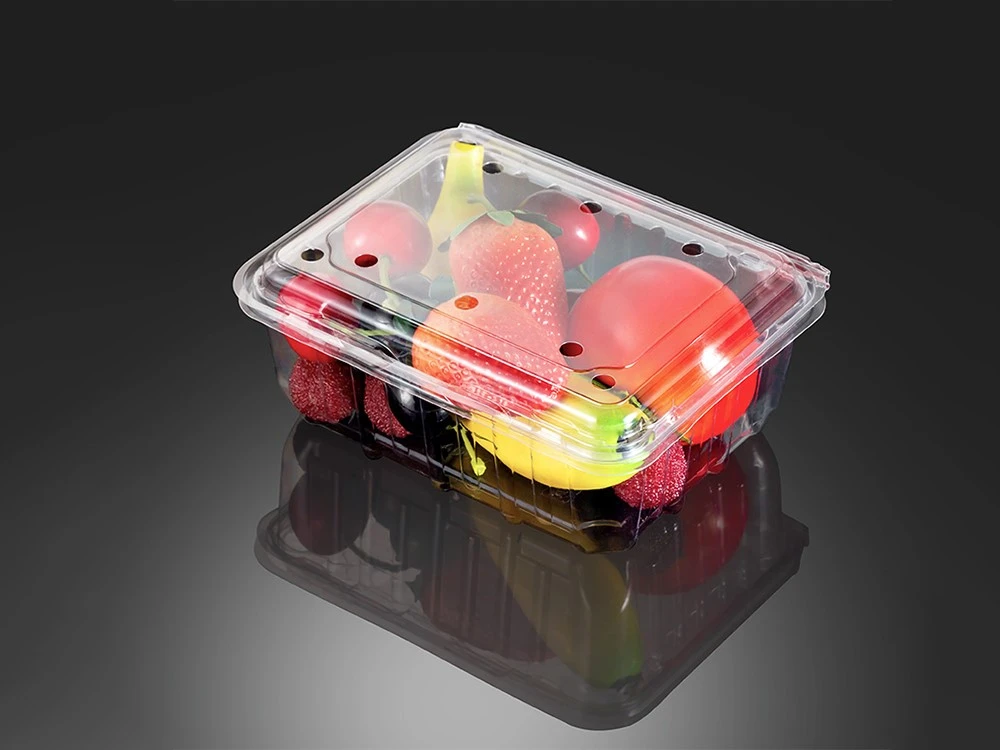

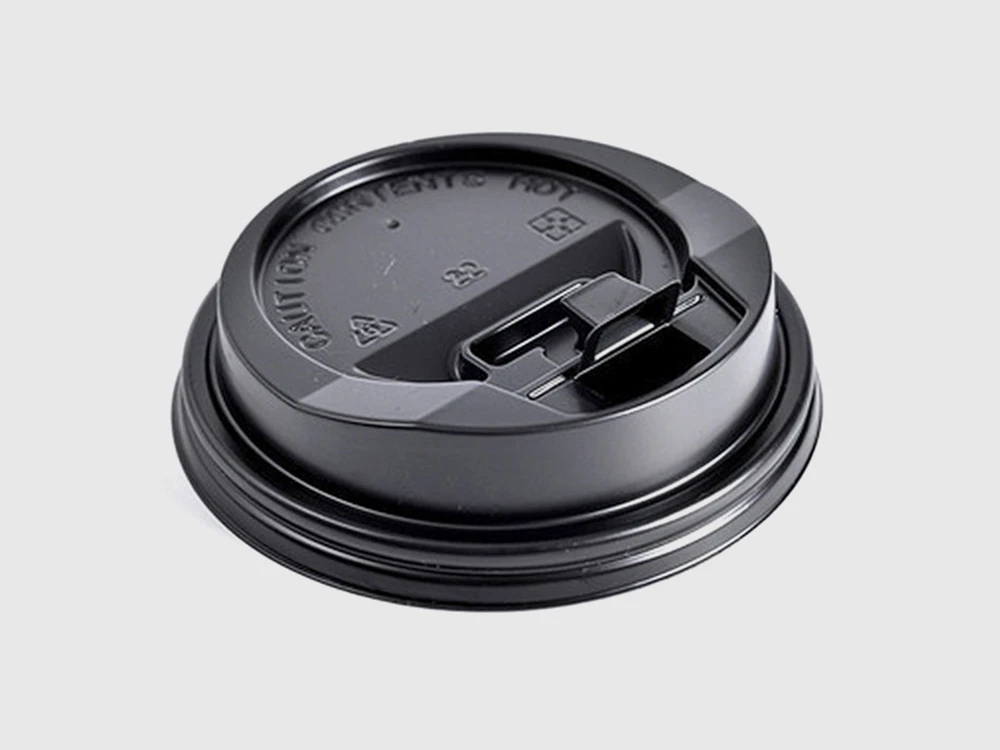

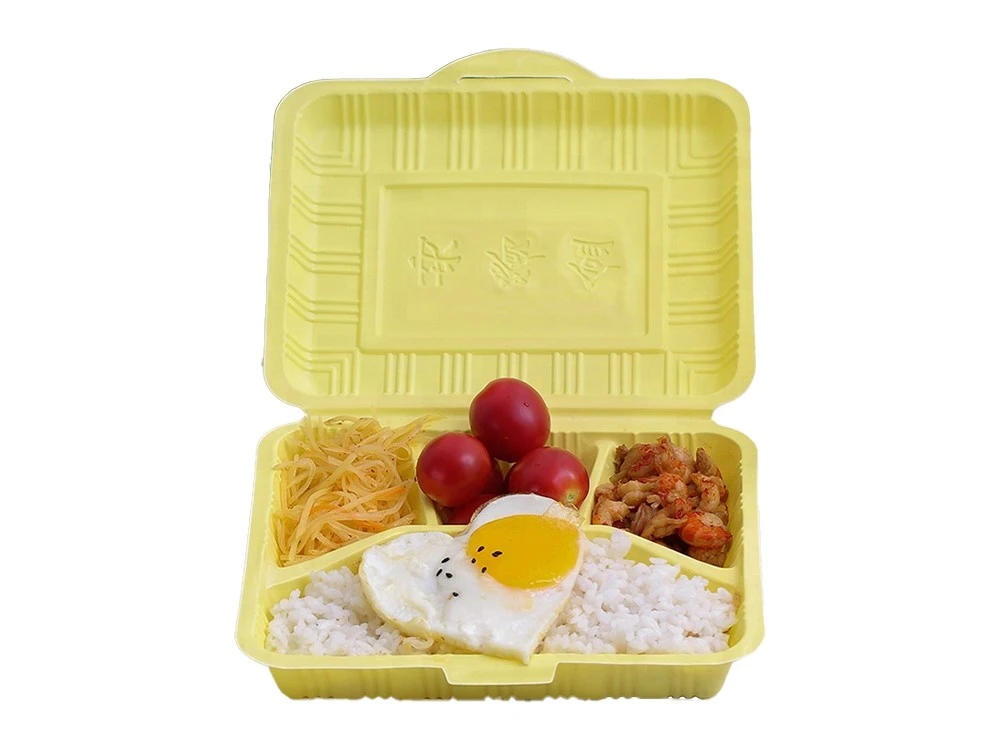

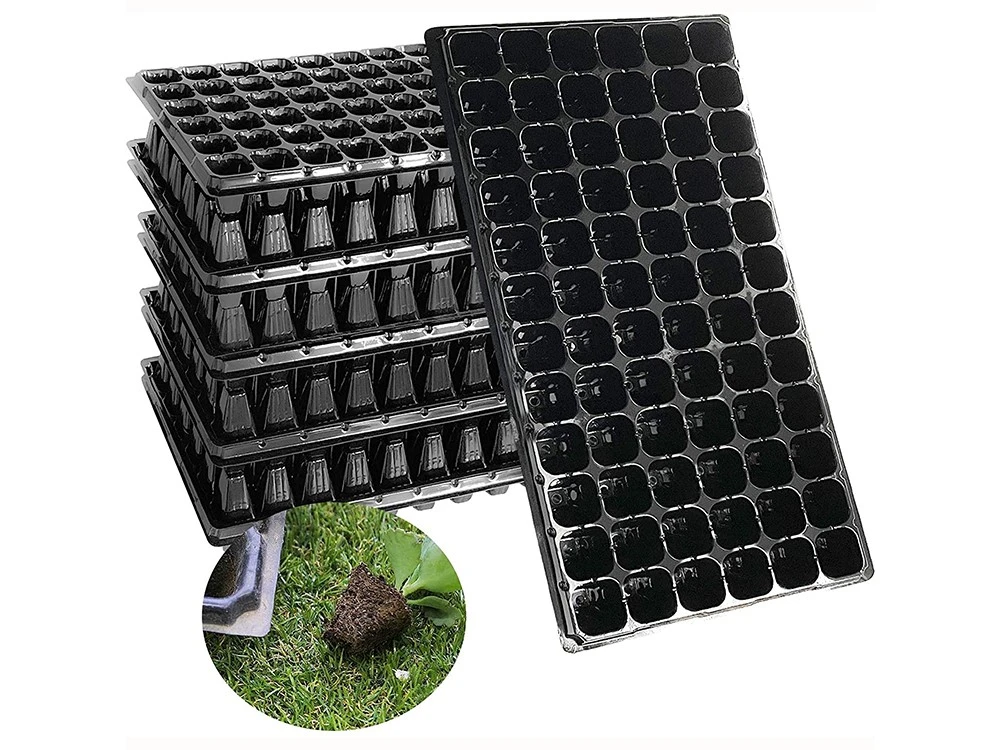

Finished Product Display
It is suitable for processing different materials, such as PP, PS, HIPS, PET, PVC, PLA etc. processing high transparency, high stretch, shallow stretch, round, square, upper and lower two-way stretch, flanged and other products, including trays, lids, fruit and vegetable boxes, flower pots, shells, seedling trays and plates, etc.
Product picture
Explore the detailed structure and configuration to see how our machine ensure precision, stability, and efficiency.
Heating Device
Energy Efficiency save 30%
Elstein ceramic heaters, individually adjustable(line by line)
Can control the temperature by PLC directly
Operation Screen
Live Data Display – Shows temperature, pressure, and cycle status in real time.
mergency Stop & Alarms – Ensures quick response to operational hazards.
Multi-Language Support – Accommodates global operators.
Forming Station
Max mould size:520*400mm
Max depth:110mm
Servo driven plug assist on top forming station
Stable square struction,provide stable forming
Punching Station
Servo motor driven, punching holes more accurate and complete Long-life, durable needle
Cutting Station
Servo motor driven Movable cutters, to adjust the cutting by itself High-quality cutters, save spare parts costs Top nut locking structure, providing stronger force
Stacking Station
Different stacking schemes can be formulated according to the customer's requirements.
FAQ
1. How I can install &run the machine?
Our engineer will go to your factory to install the machine and adjust the product mould.
2. What is warranty of the machine?
13 months warranty since the shipping date. After that, we have professional after-sale team to provide good service.
3. What is the payment term?
It is 30% deposit and the rest 70% paid before shipment.
Why choose us?
1. We have the best design of the machine. It's full automatic by using servo motor
2. Our mould make the least waste and it's very easy to change.
3. We have the best engineer. We can solve the problem and get proposal according to customer's requirement.
4. We offer good after-sale service. We have professional after-sale team to solve any problem from customer.
