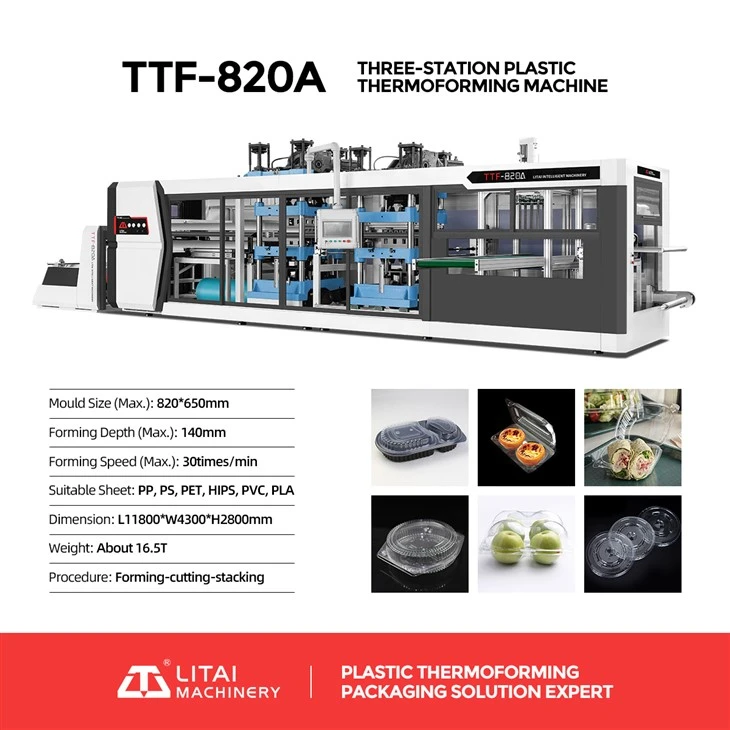

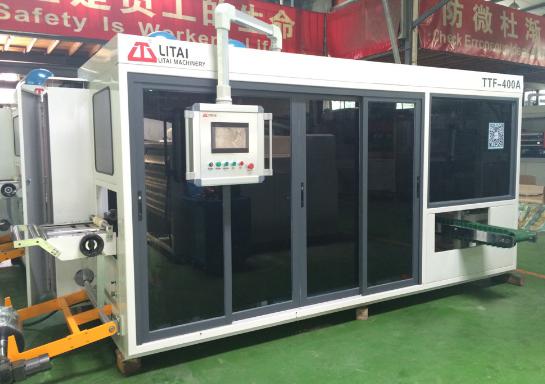

Plastic Tray Thermoforming Machine

Plastic Tray Thermoforming Machine of Parameter:

Plastic Tray Thermoforming Machine Application:

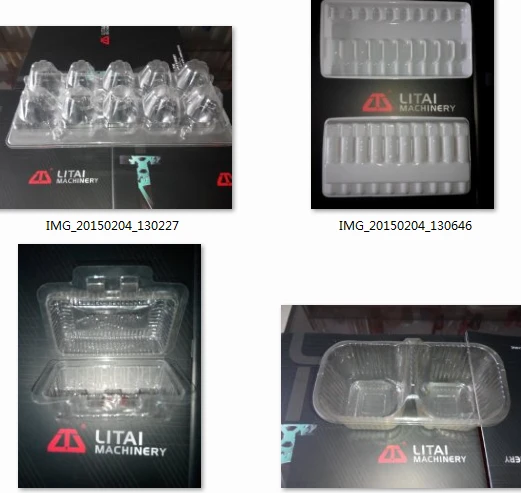

The machine is suitable for producing all sizes of packing containers under positive and negative pressure forming processing. Plastic containers produced by this machine can be used for packing of food, tourist goods,cosmetic products, toy, electrical elements and hard-ware of daily use, etc. It's suitable for PET, PP, PS, EPS, PVC material.

Plastic Tray Thermoforming Machine Main Features

1. Efficient production: The machine adopts an automatic control system, which can quickly and efficiently complete the molding, cutting and palletizing of plastic products. It has the functions of rapid heating, high pressure forming and precise cutting, which greatly improves the production efficiency.
2. Flexible and diverse: This machine is equipped with multiple stations, which can be adapted to the production of different types and sizes of plastic products. By changing the mould, products of various shapes can be produced, such as plates, tableware, containers, etc. At the same time, it can also be customized according to the needs to meet the special needs of different customers.
3. Highly automated: The machine has an automated operation and control system, which can realize an automated production line. It is equipped with automatic feeding, automatic forming, automatic cutting, automatic palletizing and other functions. The operation is simple and convenient, reducing manual intervention and reducing the cost of human resources.
4. Energy saving and environmental protection: The machine adopts a high-efficiency heating system and energy-saving design, which can minimize energy consumption. At the same time, it also has precise temperature control and emission purification system, which reduces the pollution to the environment.

Structure & Design

Explore the detailed structure and configuration to see how our machine ensure precision, stability, and efficiency.

Heating Device

Energy Efficiency save 30%
Elstein ceramic heaters, individually adjustable(line by line)
Can control the temperature by PLC directly

Operation Screen

Live Data Display – Shows temperature, pressure, and cycle status in real time.

mergency Stop & Alarms – Ensures quick response to operational hazards.

Multi-Language Support – Accommodates global operators.

Forming Station

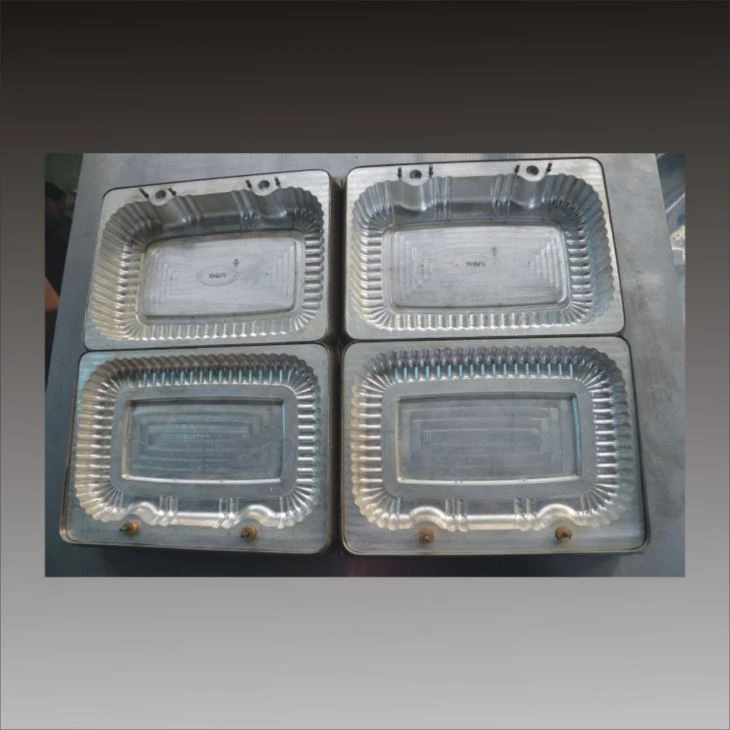

Max mould size:820*650mm
Max depth:140mm
Servo driven plug assist on top forming station
Stable square struction,provide stable forming

Cutting Station

Servo motor driven Movable cutters, to adjust the cutting by itself High-quality cutters, save spare parts costs Top nut locking structure, providing stronger force

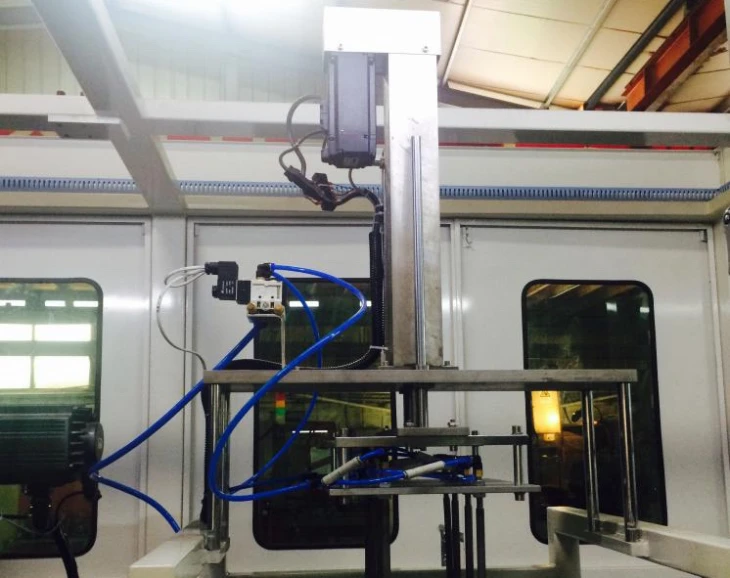

Stacking Station

Different stacking schemes can be formulated according to the customer's requirements.

Waste Recycling

Edge trim is fed to the waste rewinding system for recycling. Its special clutch automatically cuts power when the roll becomes too large, preventing overload and extending motor lifespan.
