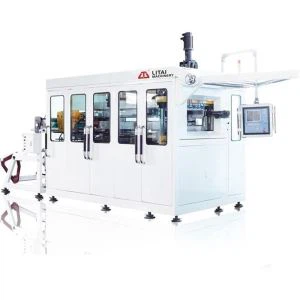

Cake Tray Thermoforming Machine

Cake Tray Thermoforming Machine


Model: TTF-520A
Station:Three station
Max.Forming Area: 520*400mm
Max.Forming Height: 110mm
Sheet thickness:0.2-1.6mm
Forming Speed (Max.): 30times/min
Power supply: AC 380V, 50Hz, Three-phase, Four-wire
Application: trays, containers, boxes, lids, etc.
Core Components: PLC, Engine, Bearing, Gearbox, Motor, Gear, Pump
Suitable Material: PP, PS, HIPS, PET, PVC, PLA etc.
Send Inquiry
Product Introduction
Cake Tray Thermoforming Machine uses internationally advanced plastic sheet forming technology. It is a plastic sheet forming equipment with mechanical, pneumatic and electrical integrated design. It can automatically complete all actions such as loading, feeding, heating, forming, cutting, stacking, finished product transportation, and edge material winding.
The multi-station thermoforming machine is suitable to handle different materials, such as A-PET, R-PET, C-PET, HIPS, PP, PLA, PVC, and barrier material, and to produce many items: trays, lids, fruits, and vegetable boxes, flower pots, clamshells, nursery trays, and plates.

Cake Tray Thermoforming Machine Application:

This machine is automatic forming equipment for thermoforming plastic sheet includes feeding, heating, forming, cooling, mold unloading, cutting at one blow.  It is suitable for thermoforming PS, HIPS, PVC, PET, PP that can produce varieties of blister package and blister tray.
20260514-104437

 Cake Tray Thermoforming Machine detail


Parameter of Cake Tray Thermoforming Machine:

Model

TTF-520A

Station

Three station

Mould Size (Max.)

520*400mm

Forming Depth (Max.)

110mm

Sheet thickness

0.2-2mm

Forming Speed (Max.)

40times/min

Air pressure

0.6-0.8mpa

Air consumption

3.0 m³/min

Water consumption

0.7m³/h

Sheet width (Max.)

550mm

Suitable Sheet

PP, PS, HIPS, PET, PVC, PLA etc.

Power supply

AC 380V, 50Hz, Three-phase, Four-wire

Rated power

120Kw

Heating power

75Kw

Procedure

Forming-cutting-stacking

Dimension

L9300*W4200*H2800mm

Weight

About 9.0T

FAQ

1: What is a thermoforming machine used for?

A thermoforming machine is primarily used to shape plastic sheets into custom packaging, trays, containers, and product components. It is widely applied in industries such as food packaging, medical device production, automotive parts, and consumer goods. By heating plastic sheets and forming them over molds, thermoforming machines provide high-efficiency, cost-effective, and precise plastic forming solutions suitable for large-scale manufacturing.

2: What type of plastic is used for thermoforming?

The most commonly used plastics for thermoforming include PP, PS, HIPS, PET, PVC, PLA etc. These materials are selected for their excellent moldability, durability, and clarity, making them suitable for packaging, trays, and protective components. Material choice depends on factors such as product application, temperature resistance, and food safety requirements, ensuring reliable performance in industrial and consumer applications.

3: Is thermoforming safe for food packaging?

Yes, thermoforming is safe for food packaging when using FDA-approved plastics such as PET, PP, or PS. Thermoformed containers and trays provide hygienic, durable, and customizable solutions for fresh, frozen, and processed foods. Proper selection of materials and adherence to food safety standards ensure that thermoforming machines produce compliant packaging suitable for commercial and retail food applications.
