Hydraulic Thermoforming Machine
Model: TTF-700A
Max.Forming Area: 700*600 mm
Max.Forming Height: 120mm
Sheet thickness：0.2-2mm
Forming Speed (Max.): 35times/min
Power supply: AC 380V, 50Hz, Three-phase, Four-wire
Application: trays, containers, boxes, lids, etc.
Core Components: PLC, Engine, Bearing, Gearbox, Motor, Gear, Pump
Suitable Material: PP, PS, HIPS, PET, PVC, PLA etc.
The Hydraulic Thermoforming Machine is TTF-700A full automatic four station plastic thermoforming machine. The plate of the station is driven by servo motor, which is powerful and precise. If you want to punch holes on your plastic products, just pick this machine.
The Hydraulic Thermoforming Machine is suitable for producing most kinds of square plastic containers with the advantages of stable operation, low noise and high efficiency.
Wide material compatibility: Suitable for PP, PE, PVC, PET and other thermoplastic materials, processing sheet thickness from 0.15 mm films to 2 mm sheets.
Multi-station production process: Integrates forming, punching, cutting and related production steps to support efficient packaging manufacturing.
Stable forming performance: Designed for precise production, reliable operation and consistent product quality across different thermoforming applications.
Flexible application range: Suitable for food packaging, disposable plastic products and other thermoformed packaging needs.
Hydraulic Thermoforming Machine Parameter:
| Model | TTF-700A |
| Station | Three station |
| Mould Size (Max.) | 700*600 mm |
| Forming Depth (Max.) | 120mm |
| Sheet thickness | 0.2-2mm |
| Forming Speed (Max.) | 35times/min |
| Air pressure | 0.6-0.8mpa |
| Air consumption | 3.6m³/min |
| Water consumption | 0.7m³/h |
| Sheet width (Max.) | 730mm |
| Suitable Sheet | PP, PS, HIPS, PET, PVC, PLA etc. |
| Power supply | AC 380V, 50Hz, Three-phase, Four-wire |
| Rated power | 188Kw |
| Heating power | 118Kw |
| Procedure | Forming-punching-cutting-stacking |
| Dimension | L11500*W4500*H2800mm |
| Weight | About 19.0T |
Application of Hydraulic Thermoforming Machine

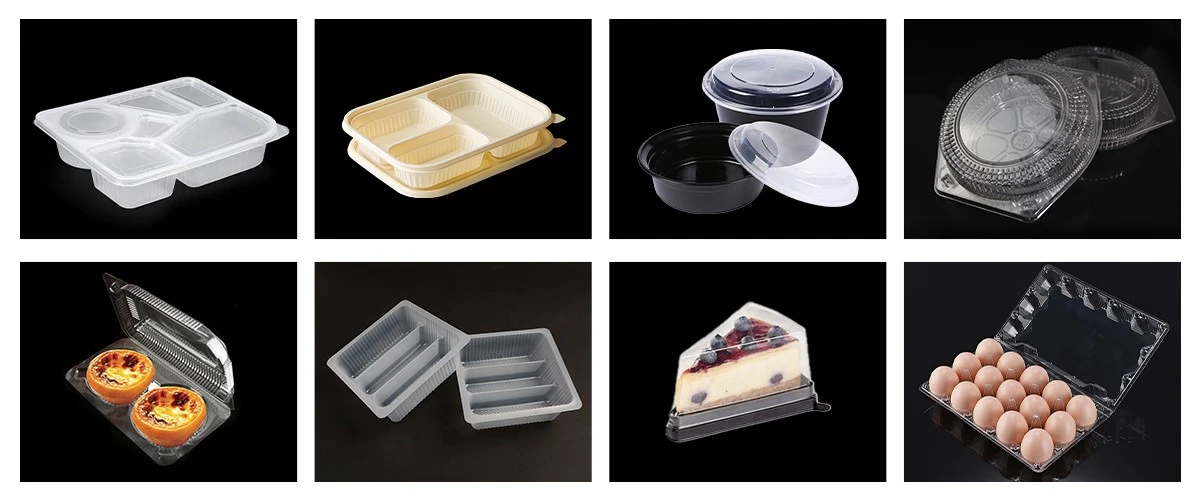

It is used to form plastic sheets such as PP PS HIPS PVC PET, etc. It can be widely used in the production of various plastic boxes, containers and other plastic products, such as ice cream cups, milk cups, chocolates, packaging boxes, candy boxes, fast food boxes, food boxes, etc.
Structure & Design
Heating Device
Energy Efficiency save 30%
Elstein ceramic heaters, individually adjustable(line by line)
Can control the temperature by PLC directly
Operation Screen
Live Data Display – Shows temperature, pressure, and cycle status in real time.
mergency Stop & Alarms – Ensures quick response to operational hazards.
Multi-Language Support – Accommodates global operators.
Forming Station
Max mould size:700*600 mm
Max depth:110mm
Servo driven plug assist on top forming station
Stable square struction,provide stable forming
Cutting Station
Servo motor driven Movable cutters, to adjust the cutting by itself High-quality cutters, save spare parts costs Top nut locking structure, providing stronger force
Stacking Station
Different stacking schemes can be formulated according to the customer's requirements.
Waste Recycling
Edge trim is fed to the waste rewinding system for recycling. Its special clutch automatically cuts power when the roll becomes too large, preventing overload and extending motor lifespan.
Why us:
-Experienced R & D Department
-Continuous improvement through innovation and R&D
-Quick response to market demands
-Good Financial Position & TQM
-Large Production Capacity
-Provide Customized Solutions
-Economical prices & Timely deliveries
