Automatic Dish Thermoforming Machine
Model: TTF-520A
Station：Three station
Max.Forming Area: 520*400mm
Max.Forming Height: 110mm
Sheet thickness：0.2-2mm
Forming Speed (Max.): 30times/min
Power supply: AC 380V, 50Hz, Three-phase, Four-wire
Application: trays, containers, boxes, lids, etc.
Core Components: PLC, Engine, Bearing, Gearbox, Motor, Gear, Pump
Suitable Material: PP, PS, HIPS, PET, PVC, PLA etc.

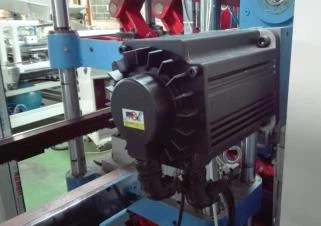

Automatic Dish Thermoforming Machine adopts servo motor for sheet feeding and stretching, PLC for programme, touch screen for operation, stable, low noise, high efficiency. Thanks to its replaceable moulds, this machine is applied to process so many containers in different size and shape, like plastic plate, dish, plate, fruit box, cake box, tray and etc.
Of course, if customer wants to produce sheet material by himself, we also have sheet extruder. In addition, there is a recycling part at the end of automatic dish thermoforming machine, sheet extruder can mix 50% waste sheet and 50% new sheet together to produce totally new sheet material.
Wide material compatibility: Suitable for PP, PE, PVC, PET and other thermoplastic materials, processing sheet thickness from 0.15 mm films to 2 mm sheets.
Parameters of Automatic Dish Thermoforming Machine
| Model | TTF-520A |
| Station | Three station |
| Mould Size (Max.) | 520*400mm |
| Forming Depth (Max.) | 110mm |
| Sheet thickness | 0.2-2mm |
| Forming Speed (Max.) | 40times/min |
| Air pressure | 0.6-0.8mpa |
| Air consumption | 3.0 m³/min |
| Water consumption | 0.7m³/h |
| Sheet width (Max.) | 550mm |
| Suitable Sheet | PP, PS, HIPS, PET, PVC, PLA etc. |
| Power supply | AC 380V, 50Hz, Three-phase, Four-wire |
| Rated power | 120Kw |
| Heating power | 75Kw |
| Procedure | Forming-cutting-stacking |
| Dimension | L9300*W4200*H2800mm |
| Weight | About 9.0T |
SAMPLES:
It is used to form plastic sheets such as PP PS HIPS PVC PET, etc. It can be widely used in the production of various plastic boxes, containers and other plastic products, such as ice cream cups, milk cups, chocolates, packaging boxes, candy boxes, fast food boxes, food boxes, etc.
Structure & Design
Explore the detailed structure and configuration to see how our machine ensure precision, stability, and efficiency
Feeding Device
Labor & Cost Savings
Improved Efficiency & Productivity
Able to work with double roll
Max.roll diameter: 1000mm
Heating Device
Energy Efficiency save 30%
Elstein ceramic heaters, individually adjustable(line by line)
Can control the temperature by PLC directly
Operation Screen
Live Data Display – Shows temperature, pressure, and cycle status in real time.
mergency Stop & Alarms – Ensures quick response to operational hazards.
Multi-Language Support – Accommodates global operators.
Forming Station
Max mould size:520*400mm
Max depth:110mm
Servo driven plug assist on top forming station
Stable square struction,provide stable forming
Cutting Station
Servo motor driven Movable cutters, to adjust the cutting by itself High-quality cutters, save spare parts costs Top nut locking structure, providing stronger force
Stacking Station
Different stacking schemes can be formulated according to the customer's requirements.
PACKING & SHIPPING:
