Thermoforming Food Dish Machinery

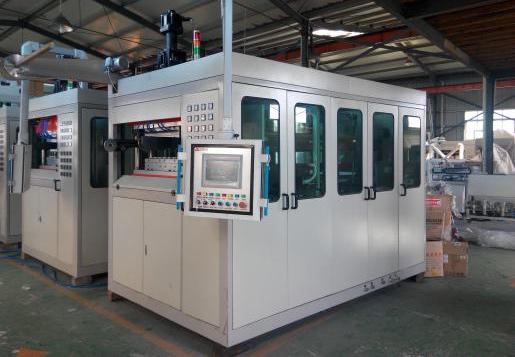

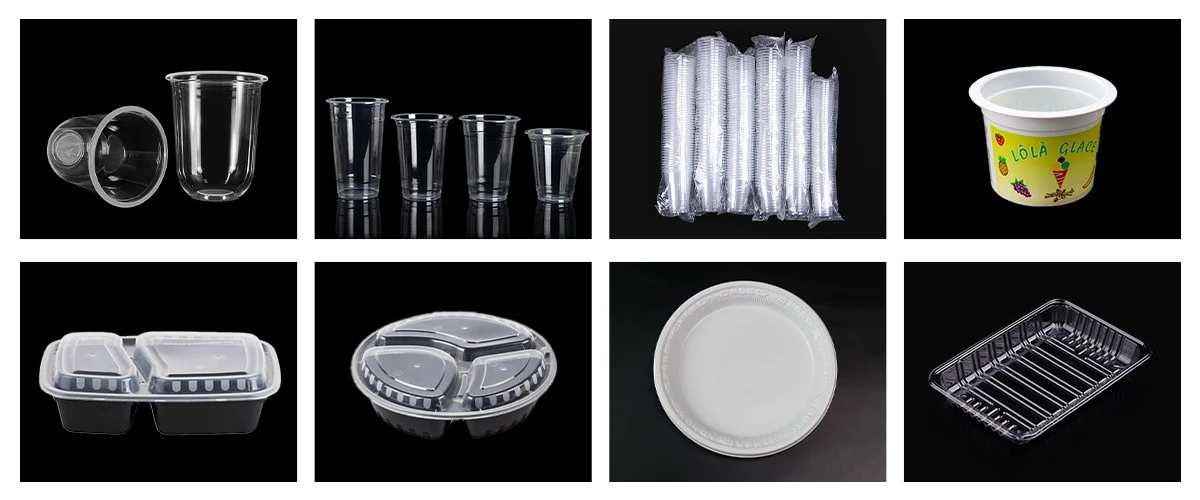

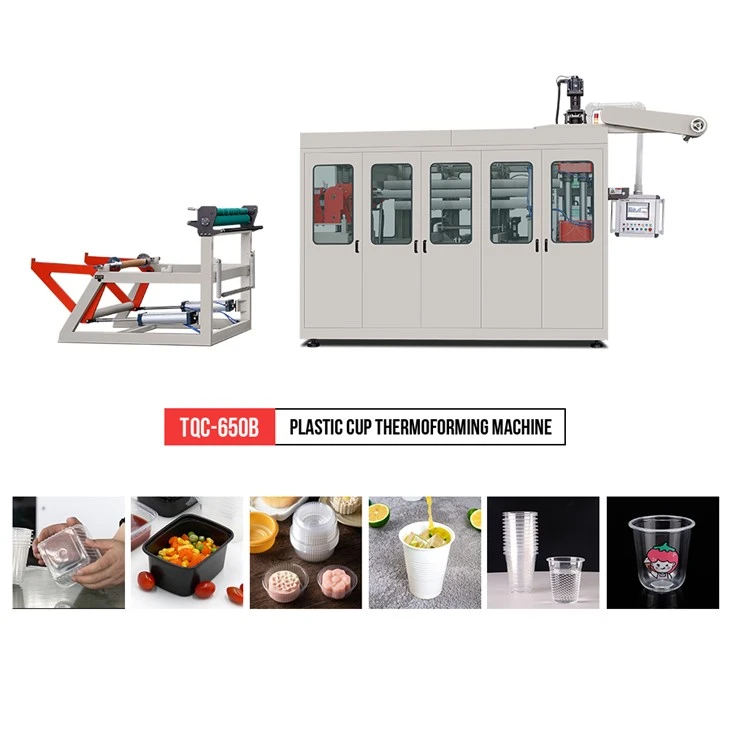

TQC-650B Thermoforming Food Dish Machinery is suitable for producing plastic cup bowl box containers and lids. The whole machine is controlled by PLC and Servo system (Equipped with a stretching servo motor), the positioning is more accurate and the thermoforming is more stable. The machine has the advantages of stable operation, low noise, energy saving and environmental protection, high grade of finished products. This machine is mainly used in production of PP PS PE PET HIPS PLA thermoplastic sheet with positive pressure forming to become different kinds of jelly cups, beverage cups, packaging boxes high grade containers, and so on. The forming area is 650 x 320mm, forming depth 180mm, max production speed 35 cycle/min.

Thermoforming Food Dish Machinery of Parameters

Thermoforming Food Dish Machinery Application

1. Thermoforming food dish machinery is forming, cutting and blowing in one step. It is easy operation and easy to change the mould.

2. The machine is Hydrualic driven system

3. thermoforming food dish machinery is using servo motor for sheet feeding and plug stretching.

4. The max forming area is 125mm

FAQ

1. How can customer operate the thermoforming food dish machinery?

Our engineer will fly to customer's factory to make installation for the machine and adjust the mould. Also our engineer will train workers how to use the machine and how to change the mould.

2.How could customer trust our quality?

Customer can fly to our factory to see machine running and check our thermoforming food dish machinery. Before the shippment, customer can also check the mould and machine quality.
