Thermocol Plate Making Machine
Model: TTF-700A
Max.Forming Area: 700*550 mm
Max.Forming Height: 120mm
Sheet thickness：0.2-1.6mm
Forming Speed (Max.): 30times/min
Power supply: AC 380V, 50Hz, Three-phase, Four-wire
Application: trays, containers, boxes, lids, etc.
Core Components: PLC, Engine, Bearing, Gearbox, Motor, Gear, Pump
Suitable Material: PP, PS, HIPS, PET, PVC, PLA etc.
The Plastic Thermocol Plate Making Machine is suitable to handle different materials, such as A-PET, R-PET, C-PET, HIPS, PP, PLA, PVC, and barrier material, and to produce many items: trays, lids, fruits, and vegetable boxes, flower pots, clamshells, nursery trays, and plates.
Thermocol Plate Making Machine---Technical parameters
Model | TTF-700A |
Station | Three station |
Mould Size (Max.) | 700*600 mm |
Forming Depth (Max.) | 120mm |
Sheet thickness | 0.2-2mm |
Forming Speed (Max.) | 35times/min |
Air pressure | 0.6-0.8mpa |
Air consumption | 3.6m³/min |
Water consumption | 0.7m³/h |
Sheet width (Max.) | 730mm |
Suitable Sheet | PP, PS, HIPS, PET, PVC, PLA etc. |
Power supply | AC 380V, 50Hz, Three-phase, Four-wire |
Rated power | 188Kw |
Heating power | 118Kw |
Procedure | Forming-punching-cutting-stacking |
Dimension | L11500*W4500*H2800mm |
Weight | About 19.0T |

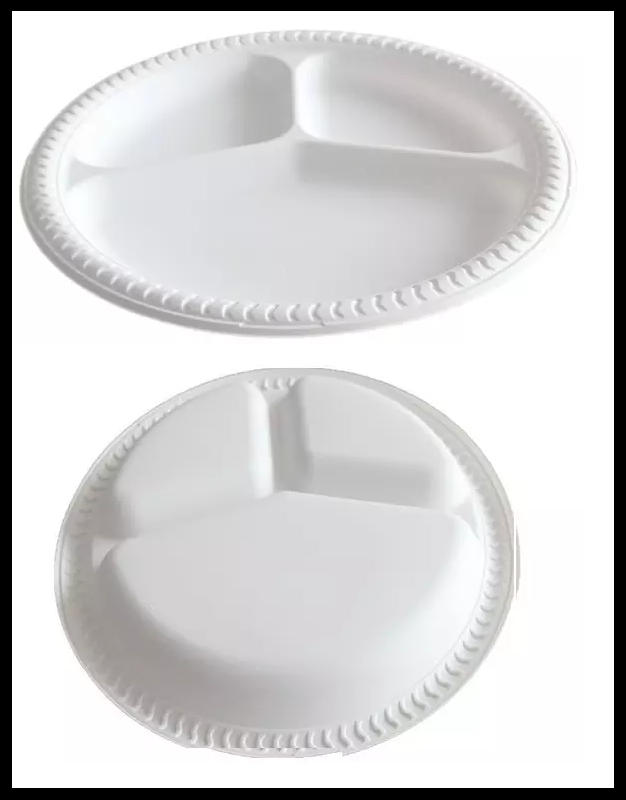

Thermocol Plate Making Machine---Application
This machine is specially designed for making different kinds of lids for plastic/paper cups, mini spoons, trays for medicine and etc.Special specification and configuration of products can be designed according to customers' demand
FAQ
1. Can this thermoforming machine handle both vacuum and pressure forming methods?
Yes, the thermoforming machines support both vacuum forming and pressure forming techniques, allowing flexible production depending on mold complexity.
2. What thermoplastic materials are compatible with these thermoforming machines?
These machines are compatible with a wide range of thermoplastics including PET, PVC, Polypropylene (PP), and Polystyrene (PS).
3. Are fully automatic configurations available for these thermoforming machines?
Yes, the product range includes manual, semi-automatic, and fully automatic thermoforming machines featuring automatic sheet feeding, cutting, stacking, and inline quality control.
4. What industries commonly use these thermoforming machines?
Industries such as food packaging, automotive manufacturing, medical devices, electronics, and consumer goods extensively utilize these thermoforming machines.
5. How does the machine ensure precision for complex mold shapes?
The machines use precise temperature control and pressure regulation, combined with high-quality molds to achieve detailed and consistent product shapes.
