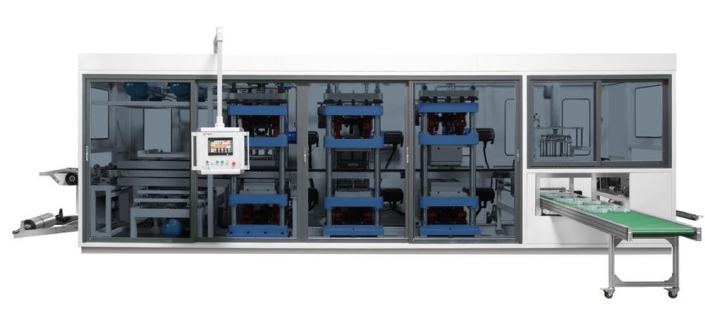

Thermoforming Plastic Lids Machine
Model: TTF-520AF
Station：Four station
Max.Forming Area: 520*400mm
Max.Forming Height: 110mm
Sheet thickness：0.2-1.6mm
Forming Speed (Max.): 30times/min
Power supply: AC 380V, 50Hz, Three-phase, Four-wire
Application: trays, containers, boxes, lids, etc.
Core Components: PLC, Engine, Bearing, Gearbox, Motor, Gear, Pump
Suitable Material: PP, PS, HIPS, PET, PVC, PLA etc.
Thermoforming Plastic Lids Machine uses internationally advanced plastic sheet forming technology. It is a plastic sheet forming equipment with mechanical, pneumatic and electrical integrated design. It can automatically complete all actions such as loading, feeding, heating, forming, punching, cutting, stacking, finished product transportation, and edge material winding.
Application of Thermoforming Plastic Lids Machine

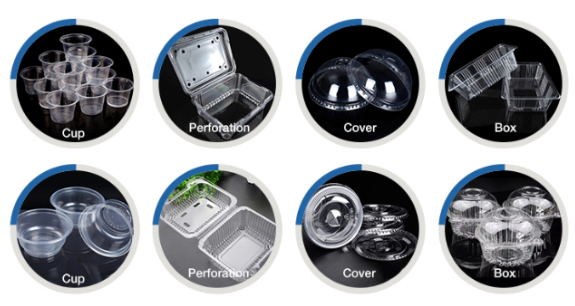

Applicable to 0.3 - 1.8mm HIPS, PS, PP, PVC, PETplastic sheet forming, processing high transparency, high tensile, shallow stretch, round, square, irregular, up and down two-way stretch.The production of fast food boxes, plates, disposable container, plastic cup lids, pallets, bowls, covers, tray, industrial packaging and other packaging products.
Parameter of Thermoforming Plastic Lids Machine:
| Model | TTF-520AF |
| Station | Four station |
| Mould Size (Max.) | 520*400mm |
| Forming Depth (Max.) | 110mm |
| Sheet thickness | 0.2-2mm |
| Forming Speed (Max.) | 40times/min |
| Air pressure | 0.6-0.8mpa |
| Air consumption | 3.0 m³/min |
| Water consumption | 0.7m³/h |
| Sheet width (Max.) | 550mm |
| Suitable Sheet | PP, PS, HIPS, PET, PVC, PLA etc. |
| Power supply | AC 380V, 50Hz, Three-phase, Four-wire |
| Rated power | 136Kw |
| Heating power | 75Kw |
| Procedure | Forming-punching-cutting-stacking |
| Dimension | L10800*W4200*H2800mm |
| Weight | About 11.0T |

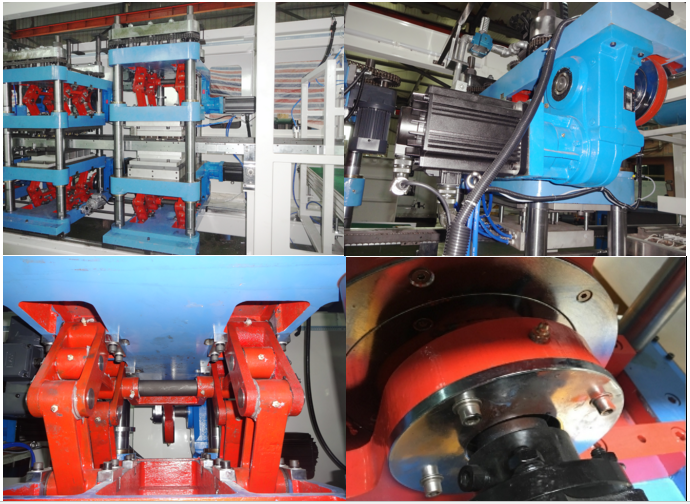

Machine detail
