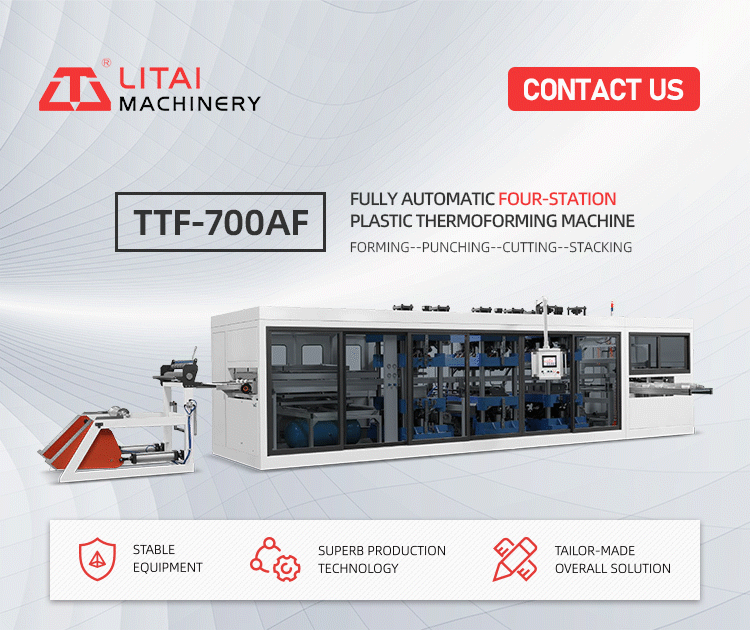

Fully Automatic Disposable Food Container Making Machine

Name: China Fully Automatic Disposable Food Container Making Machine Factory, Suppliers and Manufacturers - LITAI MACHINERY
Brand: LITAI MACHINERY
SKU: 181864018

fully automatic disposable food container making machine is our latest developed core product. The machine combines forming, punching, cutting, and stacking into process. widely used and suitable for most of the customer requested, it can produce plastic trays, containers, boxes, lids, etc.

Send Inquiry

Download

Product Introduction

The machine is completely driven by servo motor. stable operation, low noise, high efficiency, high quality.

Fully automatic disposable food container making machine is not only limited to producing disposable food containers, the machine can produce more plastic products such as coffee cup lids, egg trays, mobile phone trays, nursery trays, hardware trays, vegetables and meat by changing molds Product preservation boxes, cosmetic trays, medical injection trays, sauce containers, chocolate boxes, plastic bowls, etc., can cover almost daily necessities, with a wide range of functions, stable operation, fast production efficiency, etc.

Plastic Samples

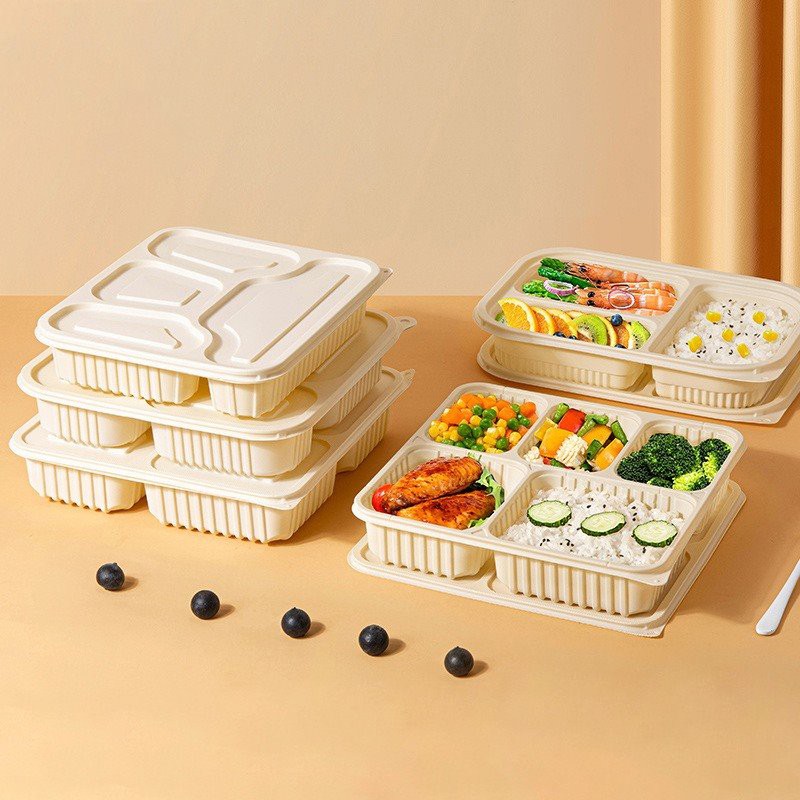

Disposable Food Containers

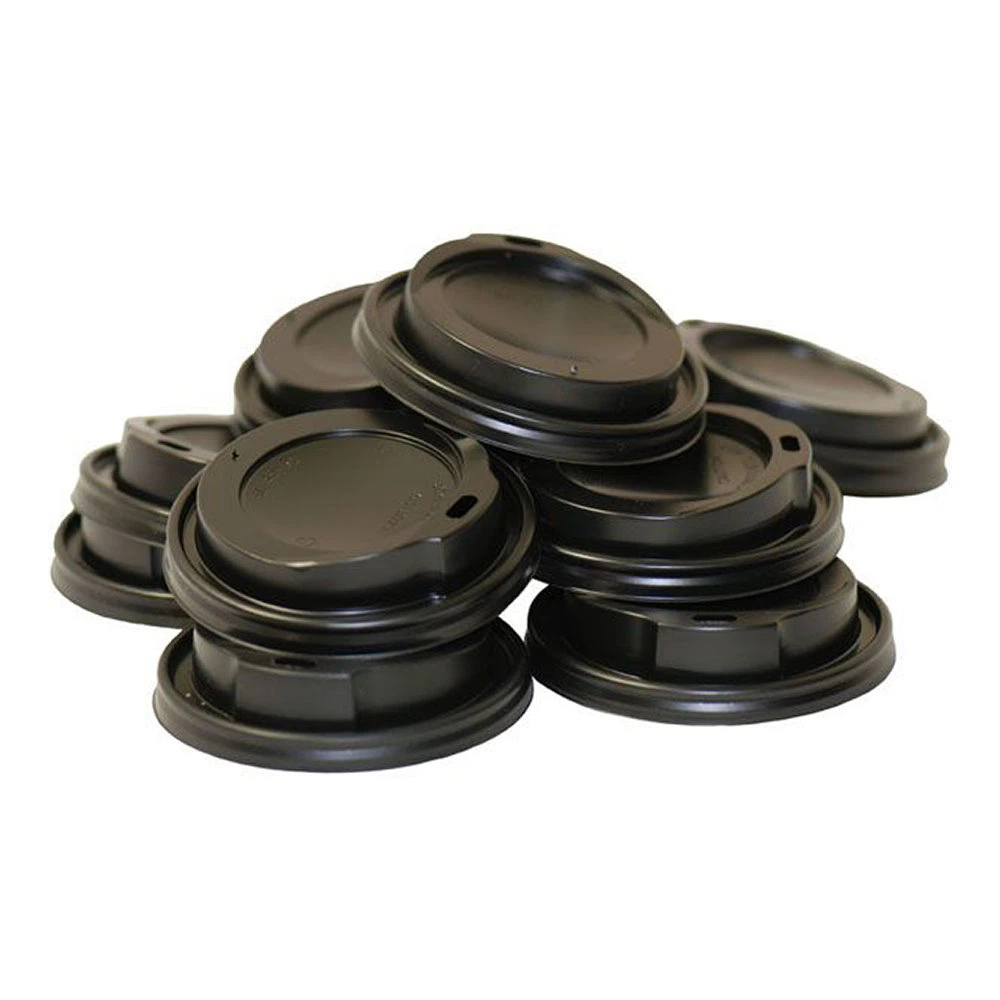

Coffee Cup Cover

Egg Tray

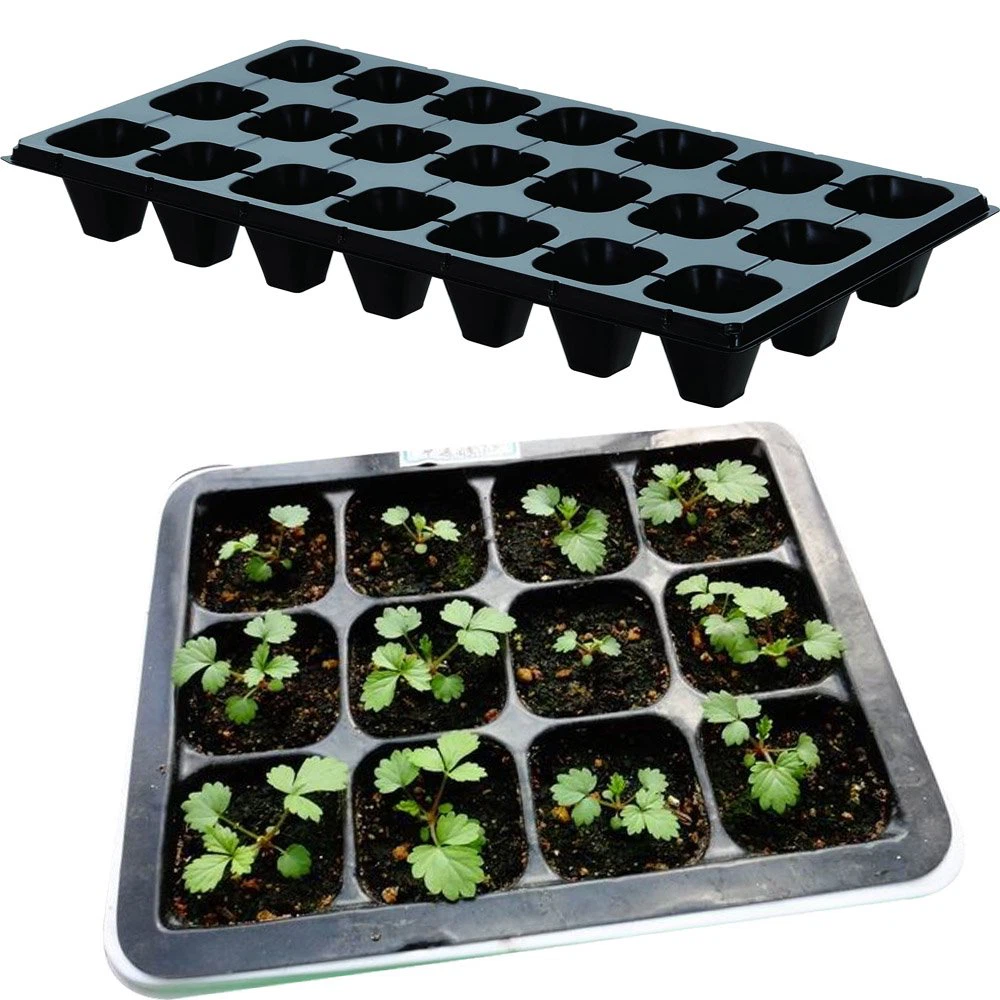

Seedling Tray

Hardware Tray

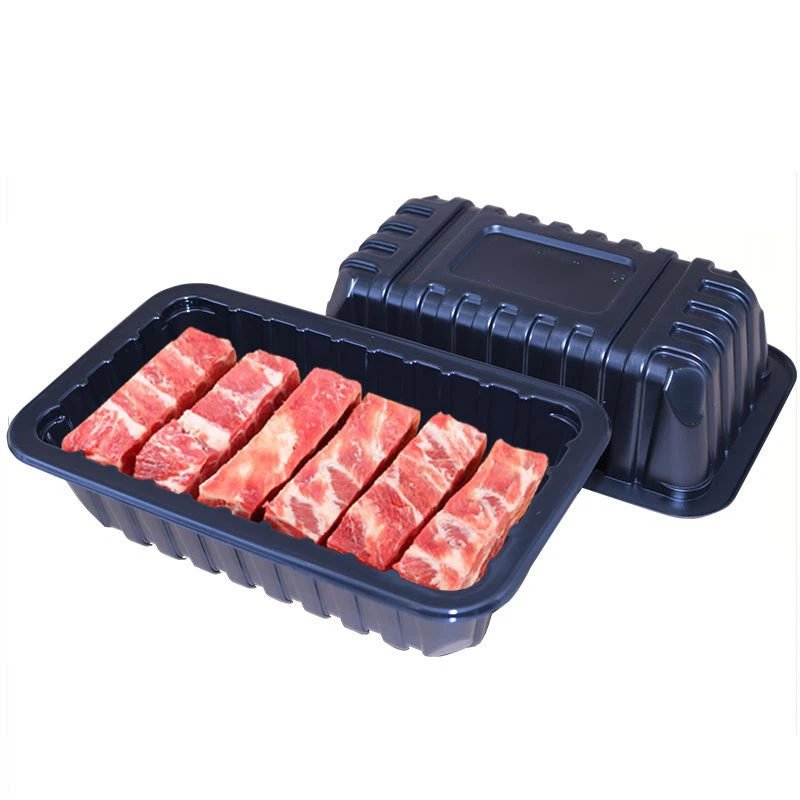

Fresh-keeping Box

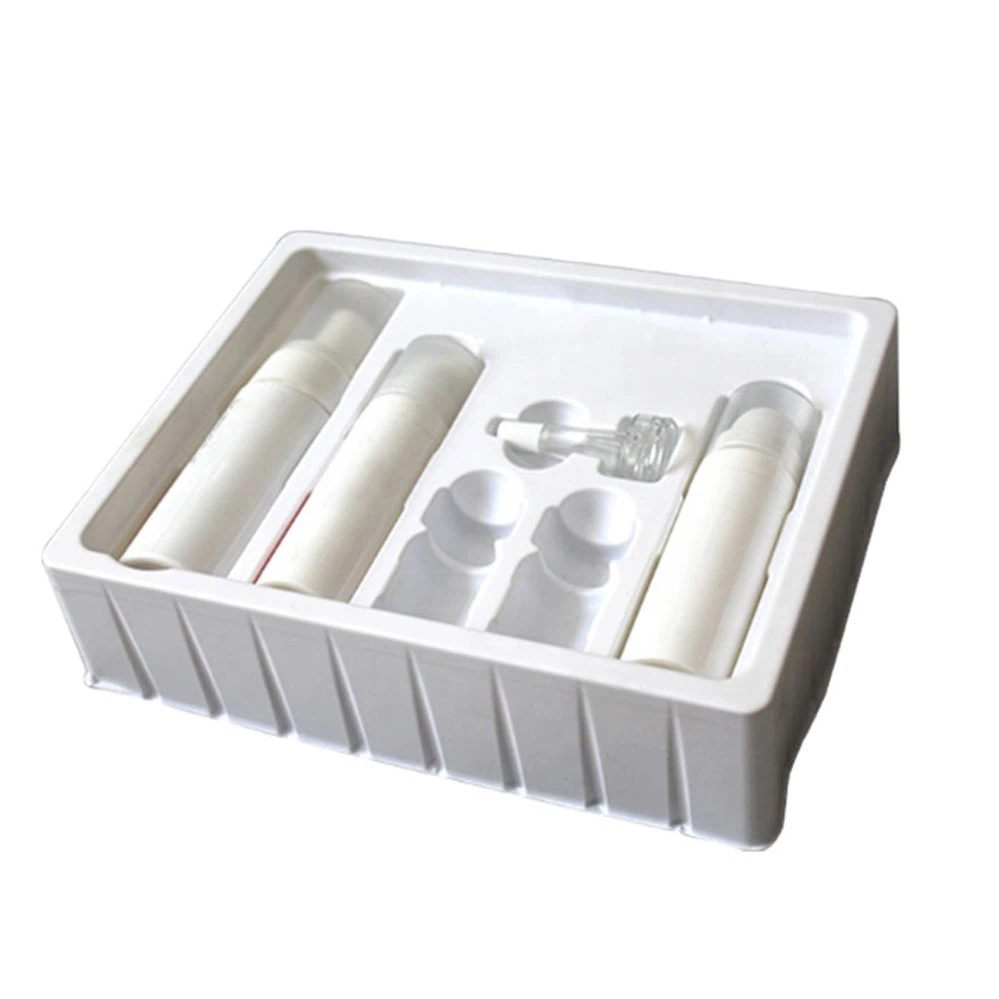

Cosmetic Tray

Sauce Containers

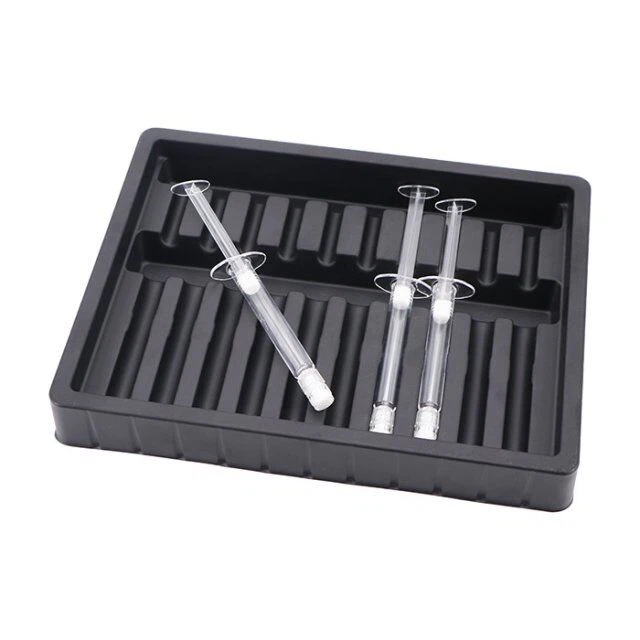

Medical Injection Trays

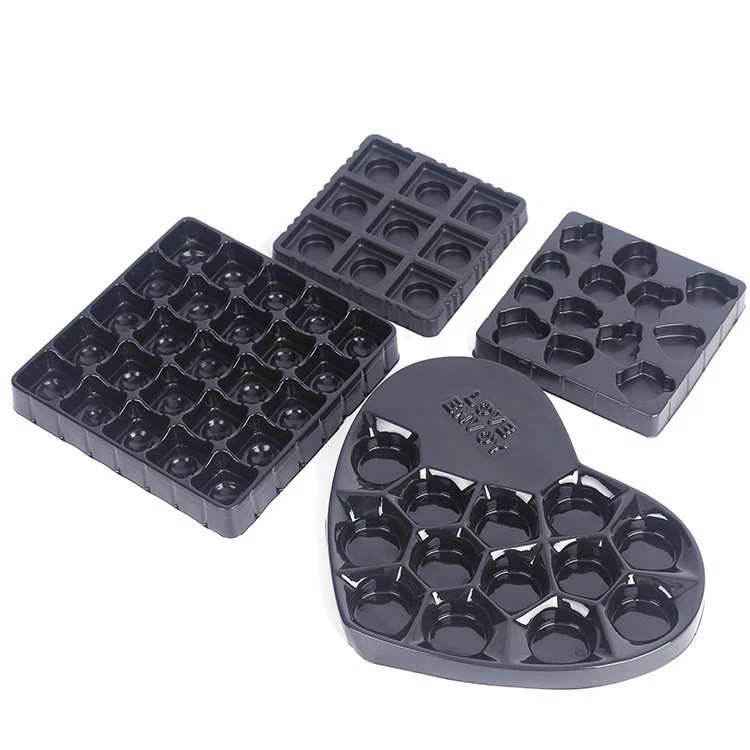

Chocolate Boxes

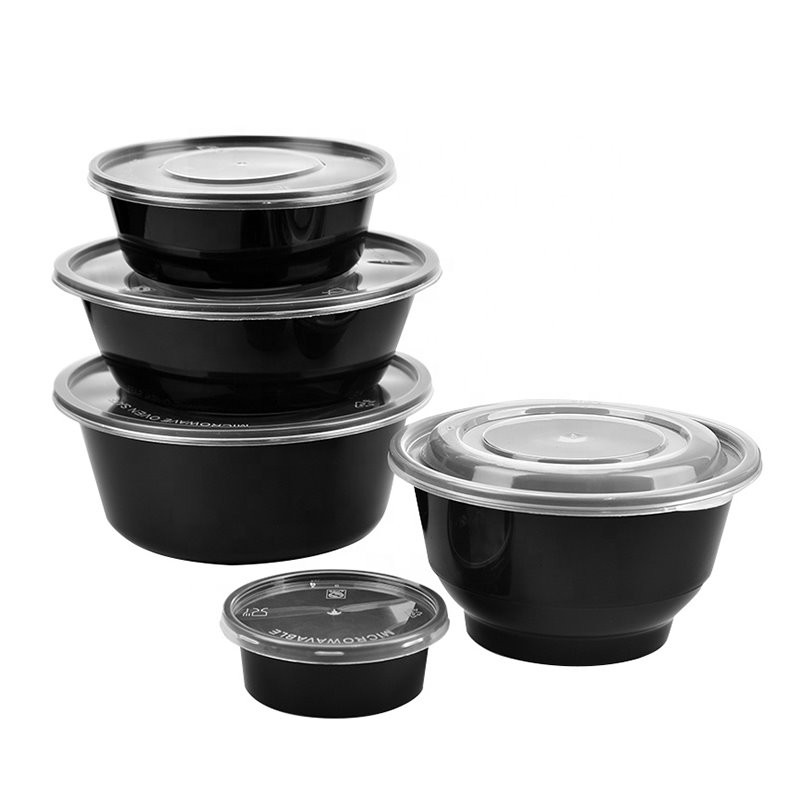

Plastic Bowls

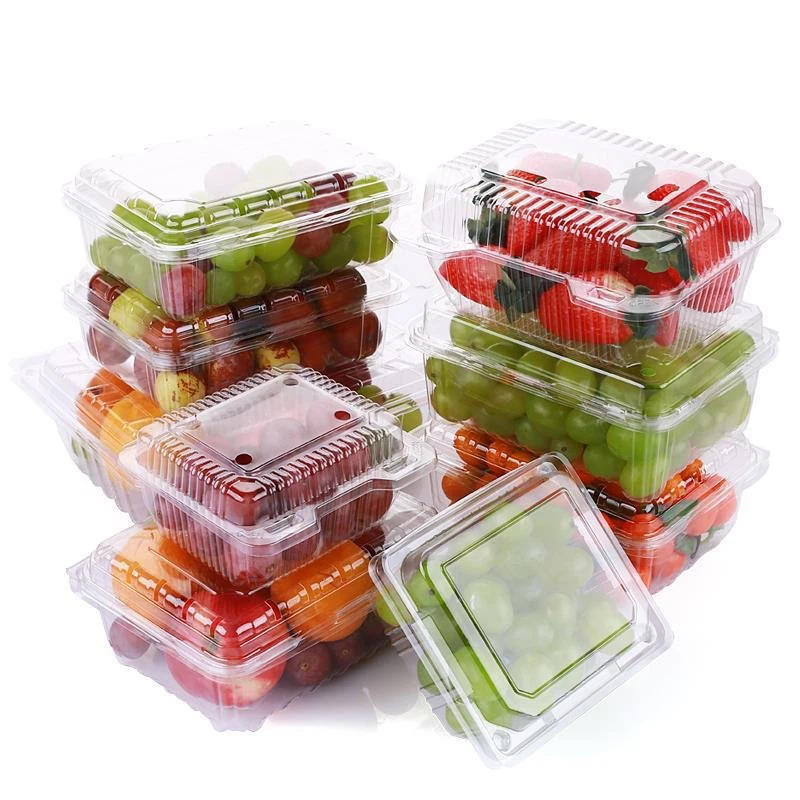

Fruit Box

Product Parameters

Technical Parameters
Station	Four stations	Three station	Four stations	Three station
Model	TTF-700AF	TTF-700A	TTF-520AF	TTF-520A
Forming Area	700mm x 600 mm		520mm x 400 mm
Forming Depth (Max.)	120mm		110mm
Sheet thickness	0.2-1.6mm
Forming Speed (Max.)	30times/min
Air pressure	0.6-0.8mpa
Air consumption	3.6 m³/min		3.0 m³/min
Water consumption	0.7 m³/h
Sheet width (Max.)	730mm		570mm
Suitable Sheet	PP, PS, HIPS, PET, PVC, PLA etc.
Power supply	AC 380V, 50Hz, Three-phase, Four-wire
Used power	105Kw	95Kw	55Kw	50Kw
Rated power	210Kw	190kw	110Kw	100Kw
Heating power	118Kw		75Kw
Procedure	Forming-punching-cutting-stacking	Forming-cutting-stacking	Forming-punching-cutting-stacking	Forming-cutting-stacking
Dimension	L13000W4500H2800mm	L11500W4500H2800mm	L10800W4650H2670mm	L8200W4650H2670mm
Weight	About 25.0T	About 19.0T	About 11.0T	About 9.0T

Main Electrical Components
MODEL/PARTS	TTF520A/AF	TTF700A/AF
Filter	CKD(Japan)
Forming Valve	NORGER(UK)
Touch Screen	DELTA	KUNLUN TONGTAI
Proximity Switch	ROCKWELL(USA)
Temperature Control Module	WEST(UK)
AC Contactor/Circuit Breaker/Button	SCHNEIDER(France)
Intermediate Relay	IDEC(Japan)
Intermediate Relay Base	OMRON(Japan)
PLC/Servo Motor	DELTA(Taiwan)
Safety Door	-	Panasonic(Japan)
Sheet Sagging Detection	-	Sick(Germany)

Products Description

The fully automatic disposable food container making machine is the equipment with the largest forming area currently developed by LITAI MACHINERY. The forming area can reach 700mm*600mm, the maximum depth of the product that can be made is 135mm, the thickness of the sheet can be 0.2mm-2mm, and the forming speed is even higher.

It reaches 30 times per minute, and is assisted by auxiliary equipment such as air compressors, chillers, and air storage tanks. The width of the sheet can be 730mm, and the utilization rate of ordinary products is 60-80%. Through our continuous innovation and research and development, this equipment It also has a quick mold change function, which directly reduces the wasted time of mold change and improves production efficiency.

The equipment also integrates feeding, heating, forming, punching, cutting, stacking, and waste recycling into one device. Driven by a servo motor. Smooth operation, low noise, high efficiency and good quality. You can produce with confidence!

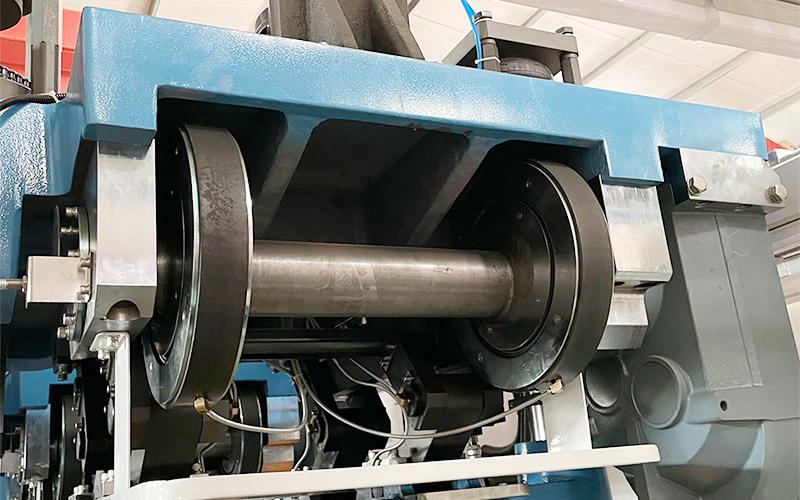

1.Every station is driven by the eccentric crank linkage structure.

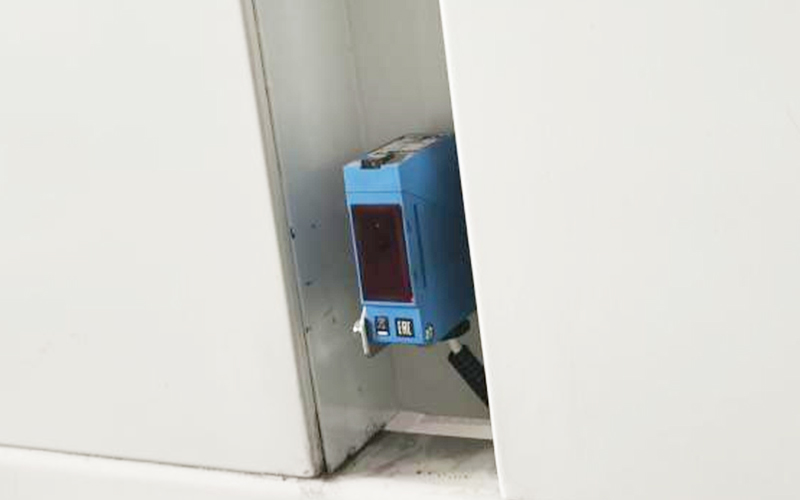

2.Feeding and heating part have optoelectronic switch in order to prevent error operating from production process.

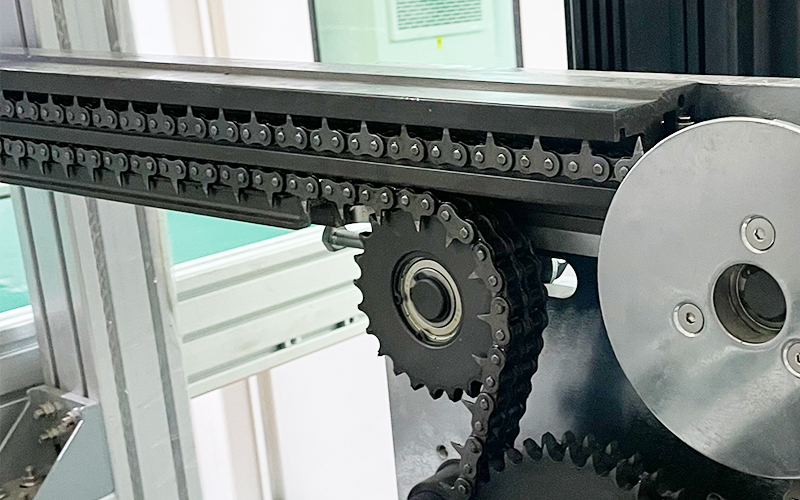

3.The toothed chain made of 65#Mn, helping convey sheet. Aluminum rails with water cooling, save water.

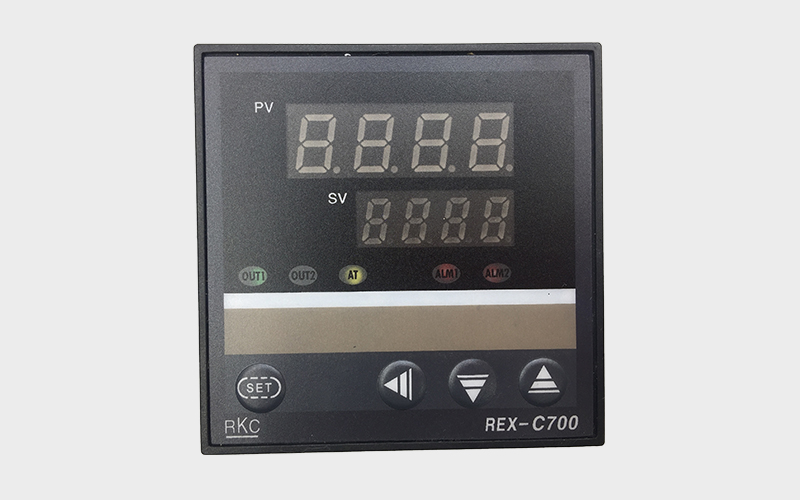

4.The machine adopts PID temperature system, it shows high precision, and temperature control tolerance ＜1℃.

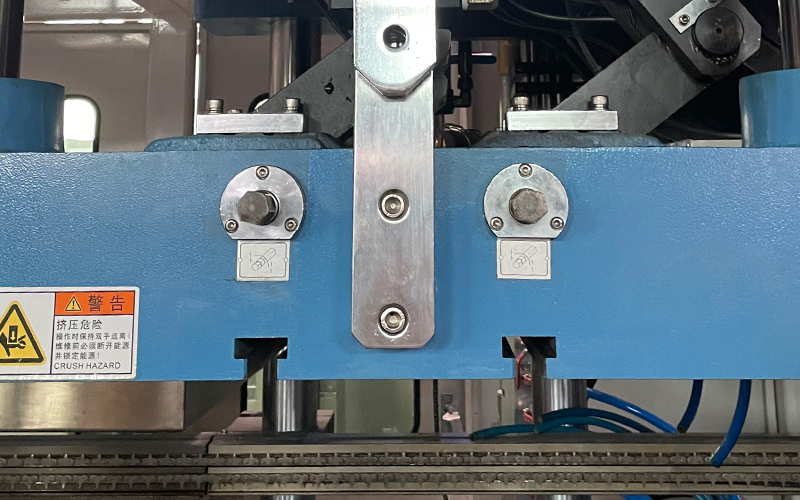

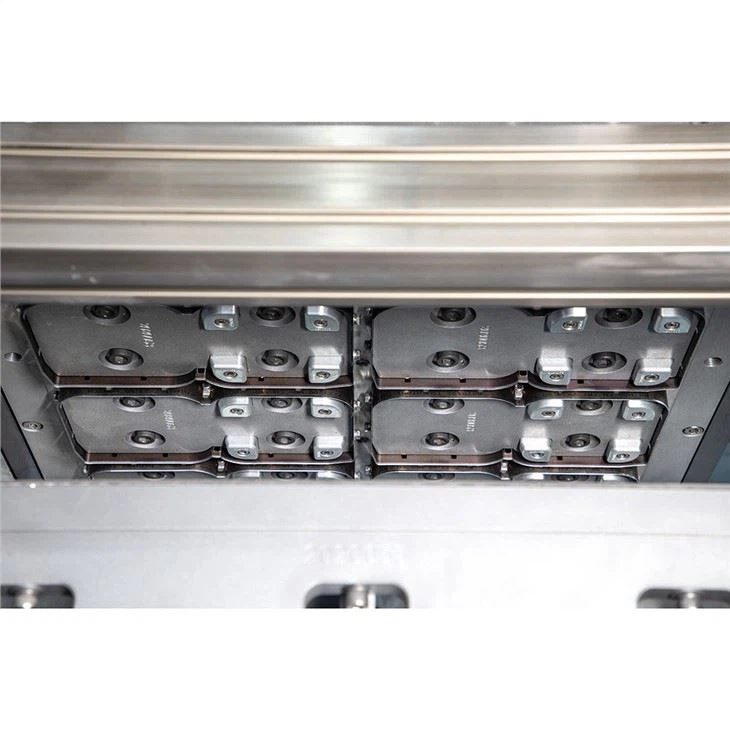

5.There is a rapid mould change device, which shortens the time for mould change extremely.

6.There is a rapid mould change device, which shortens the time for mould change extremely.

7.Low barycenter and height of finished products as well as steady running ensures easy operation and friendly viewing.

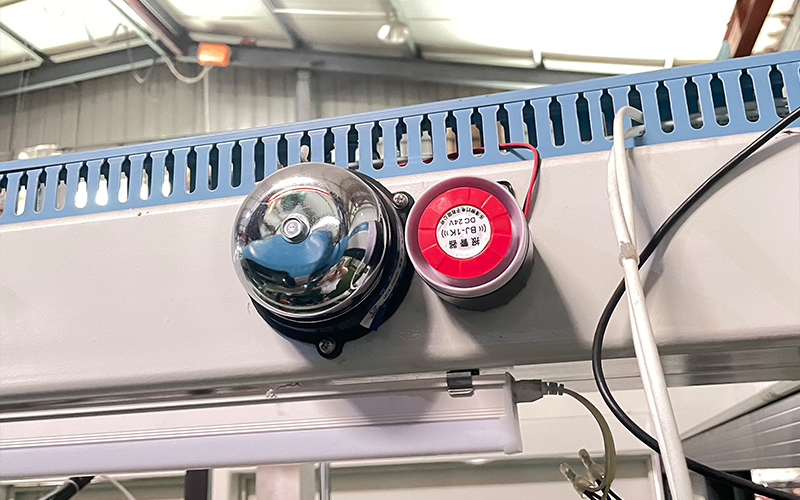

8.There is an alarm function of the sliding doors.
