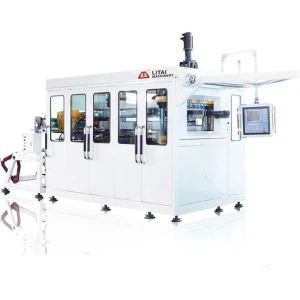

TFC-730 Flip Mold Thermoforming Cup Machine

TFC-730 Flip mold thermoforming cup machine is the latest product developed by our company, mainly used to produce plastic cup products of different specifications. The machine adopts positive and negative pressure molding, equipped with a mold turning system under full servo motor control, and uses two pairs of conjugate cam transmission connecting rods to complete the tilting, lifting and punching of the mold table. It is a new type of equipment developed for high output, low energy consumption, high stability, high automation and other requirements, providing a perfect solution for medium and high capacity disposable plastic cups.

Parameters of TFC-730 Flip Mold Thermoforming Cup Machine

TFC-730 Flip Mold Thermoforming Cup Machine for Features

Efficient production: The flip mold thermoforming cup machine offers high-speed output, producing tens of thousands of cups per hour to support large-scale manufacturing. Its servo-driven cup receiver and proprietary V-shaped flip device enable fast suction, flipping, and stacking, accommodating various cup diameters and heights. The servo-controlled sweeping and pushing system quickly transfers counted products onto the conveyor belt by row.

Versatility: The equipment supports the processing of a variety of materials, including PP, PS, PET, PVC, PLA, etc., and can produce cups of different materials. At the same time, the mold table can be flexibly adjusted to suit the production of various cup types.

High precision: Through advanced thermoforming technology and precise mold tilting device, the size and shape of each cup are ensured to be consistent, reducing the scrap rate and improving product quality. The feeding adopts servo motor driven sprocket transmission, with high feeding accuracy and fast start and stop response; the chain track opens and closes semi-automatically; and the tension of the chain track can be easily adjusted.

Highly automated: The fully automatic control system covers the entire process from sheet feeding, heating, forming, and mold flipping to finished output, minimizing manual intervention and cutting production costs. Integrated with a B&R controller and HMI, it ensures precise, easy operation. Automatic loading reduces manpower and motor load, enabling efficient one-person operation.

Environmental protection and energy saving: The flip mold thermoforming cup machine adopts energy-saving design, reduces energy consumption, supports the use of degradable materials, and meets environmental protection requirements. The heating area (electric furnace) is 2250mm long and uses German ceramic heating tiles. The upper heating zone has 36 zones and the lower heating zone has 12 zones, a total of 48 zones. The temperature control module is used for the entire temperature control. The solid-state relay has no contact output, which is stable and accurate. The temperature control error is ≤±1℃.

Flip Mold Thermoforming Cup Machine for Application

TFC-730 flip mold thermoforming cup machine is widely used in food packaging industry, especially in the production of beverage cups, yogurt cups, pudding cups, etc.

After-sales service

We provide comprehensive after-sales service, including equipment installation, commissioning, training and maintenance, to ensure that customers can smoothly put into production and operate stably in the long term. Our technical team is always ready to provide support to customers and solve any problems encountered during the production process.
