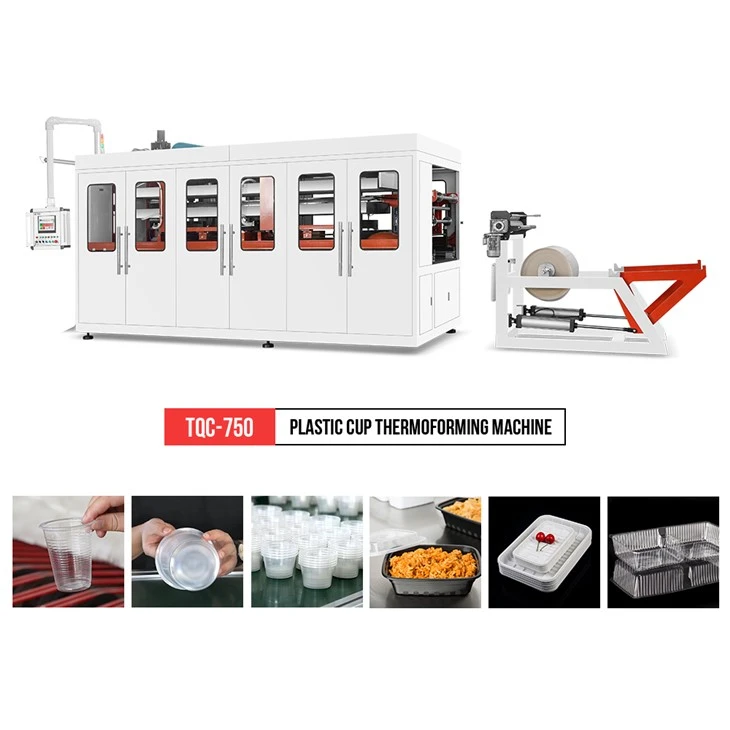

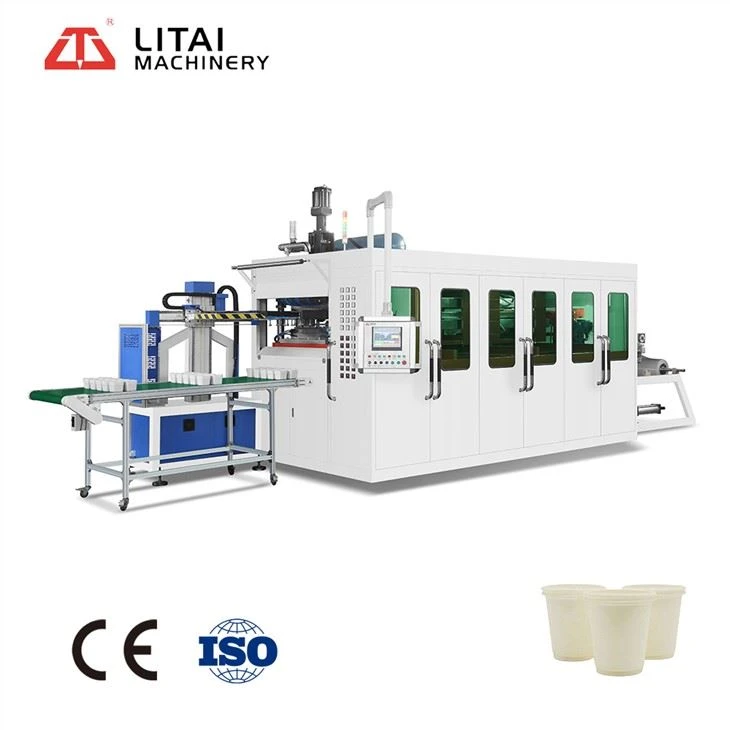

Disposable Glass PP Plastic Cup Making Machine
Model: TQC-750
Mould Size (Max.): 750mm x 480 mm
Forming Depth (Max.): 180mm
Sheet width (Max.): 770m
Main Motor Power: 188.55KW
Heating Power: 146KW
Dimension: L8500*W2200*H3200mm
Suitable Sheet Material:PP / PET / PVC / PS / HIPS / GPPS / Biodegradable Materials
The thermoforming machine can make disposable food trays, food containers, 4 or 6 compartment food trays, fruit plates, dishes, lids, covers, boxes, snack dishes, blister products for cosmetics, hardwares, toys, medicines, gardening etc. Suitable sheet: PVC, PS, PET, HIPS sheet. (For PP need double oven)
Disposable Glass PP Plastic Cup Making Machine of Paramenters
| Model | TQC-750 |
| Mould Size (Max.) | 750*480mm |
| Max. Forming Depth | 125-180mm(custom height) |
| Max. Forming Speed | 30times/min |
| Sheet Thickness | 0.3-1.8mm |
| Suitable Sheet Width | 770mm |
| Suitable Sheet | PP, PS, HIPS, PET, PVC, PLA etc. |
| Air Pressure | 0.6-0.8mpa |
| Air Consumption | 3.0m³/min |
| Water Consumption | 0.7m³/h |
| Rated Power | 173Kw |
| Heating Power | 146Kw |
| Power Supply | AC 380V,50Hz, Three-phase, Four-wire |
| Dimension | L8500*W2300*H3300mm |
| Weight | About 8T |
MACHINE FEATURES
1. Automaticsheet feeder with square steel structure, high wear resistance, more stable, efficiently, the accuracy of feeding size could be improved by automatic feeding.
2. Material holder combines with the machine, which is controlled by cylinder, can move up and down. It is easy for operation, and saving more space.
3. Machine adopts PID temperature system, it shows high precision, and temp control tolerance＜1℃

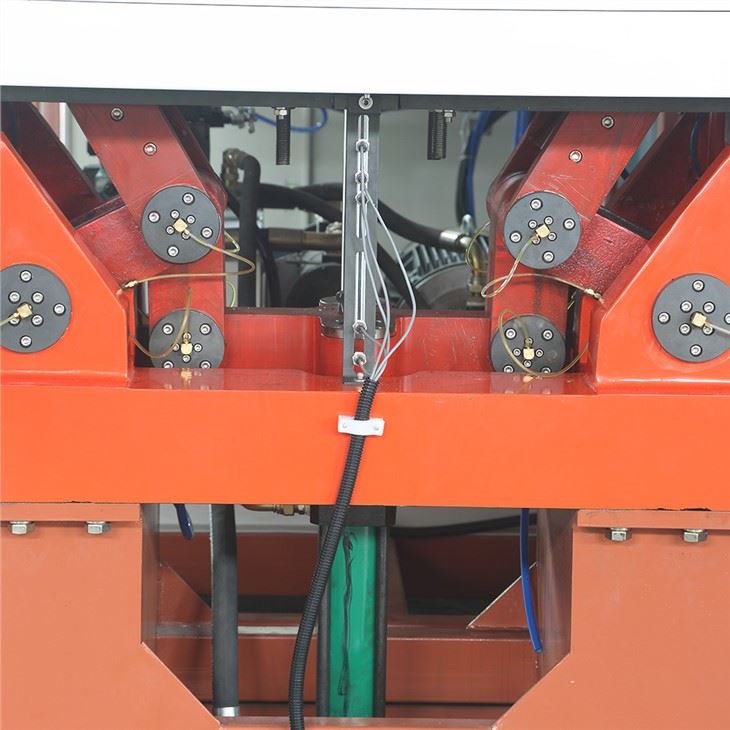

4. Movably mould device is conveniently to assemble and dismantle mold, and the vibration of the machine could be reduced by machine's counterbalance valve controls the opening and closing speed, good stability, conducive to forming.

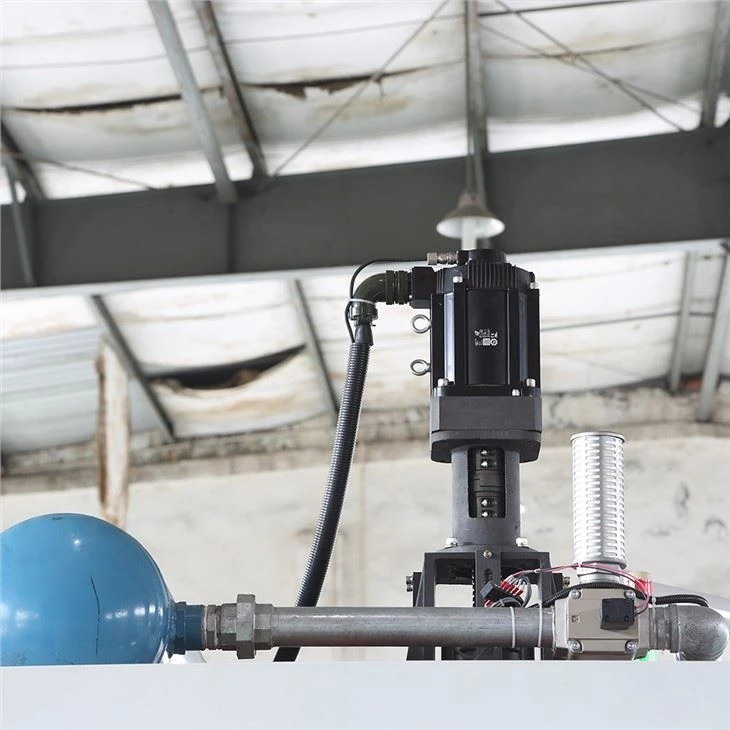

Servo motor

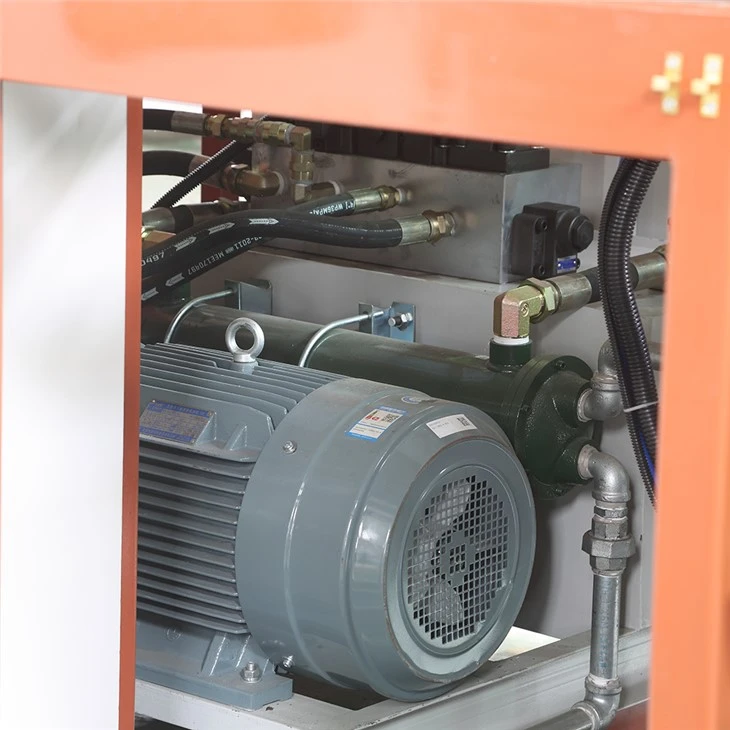

Hydraulic driven system can provide adequately movement speed and strongly punching power..

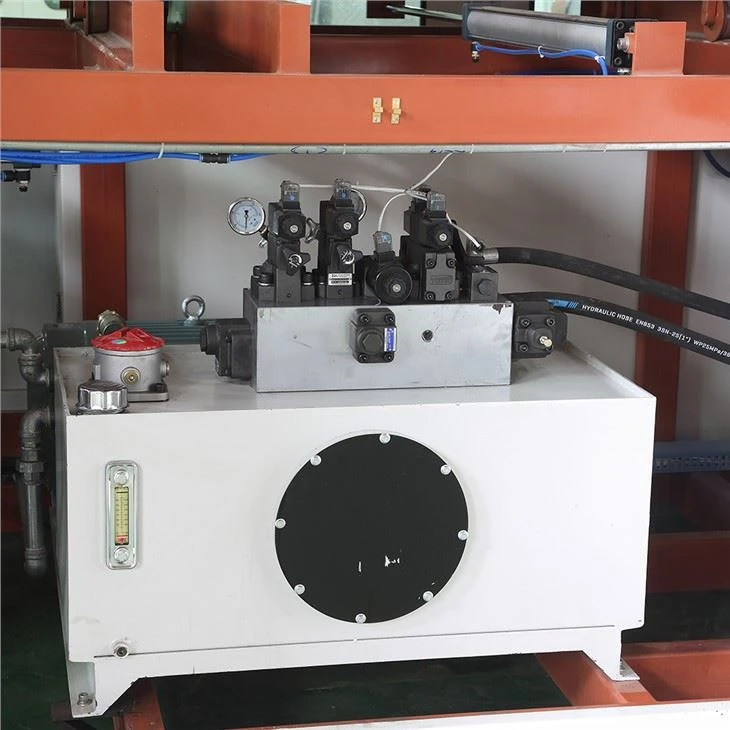

Hydraulic system
Electric lubricating oil pump
The electric lubricating oil pump can automatically inject lubricating oil regularly and quantitatively through the control of computer under the condition of unmanned control, which can make the rotating part of the machine get proper and reasonable lubrication.
What is features and advantages of our plastic thermoforming machine?
- Fully servo driven machine.no noise.no vibration,thermoforming good and fast.
- Fully machine in compact structure,taking small floor space.
- Can be adapted to a variety of materials,and the products thicker 8% than the average machine products.
- Furnaces automatic removal device,can be turned down at any time during production without breaking the sheet reaching without wasting materials.
- Electric furnace temperature control system uses intelligent automatic compensation control,a control,a control of a regulator,easy to adjust the temperature uniformity,easy to use,simple,fast heating,low temperature three times up and down the oven roast slices.
- Forming,cutting die servo-driven,two-way adjustable for upper and lower mold stroke,in which the upper mold electric adjustable in clamping direction. The upper and bwer molds height position can be adjusted conveniently and fast under the clamping state;lower mold in clamping direction readily accessible buffer,increasing the clamping speed,avoiding shock.
- Auto cutting,auto counting,auto transmission by PLC.
- Labor saving,only 1-2 workers packing.
FAQ
Q1: Are you a factory or trading company?A1: We are a factory, and we export our machines to more than 80 countries since 2001.
Q2: How long is the warranty period?
A2: We have a professional QC department in charge of products' quality.
Q3: How long is the warranty period?
A3: 13months calculated from the date of shipment from our factory.During warranty period, except the artificial factor, the spares are free to maintenance, beyond the warranty time, the buyer needs to pay the spare charge and shipping cost.
Q4: How to install the machine?
A4: We will send technician to your factory to install the machine, and teach your workers to use it. You pay all related costs, including visa charge, double-way tickets, hotel, meals, and technician salary.
