Glass Cup Thermoforming Machine
Model: TQC-650B
High Efficiency: Reduces cycle time by 30% with servo-motor drive.
Precision: ±0.01mm repeatability for complex forming.
Certified: CE & ISO 9001 Compliant standards.
Customizable: Worktable size and stroke tailored to needs.
Plastic cups, bowls and milk tea cups using PP, PET, PLA and HIPS materials.
Send Inquiry
Product Introduction
The TQC-650B is a versatile Plastic Thermoforming Machine for PP, PS, HIPS, PET, PVC, PLA etc. Fully automatic PLC control for making cups, bowls, and lids. Speed: 35 cycles/min.
TQC-650B Glass Cup Thermoforming Machine of Feature:
- -It adopts servo motor for sheet feeding and stretching, PLC for programming, touch screen for operation.

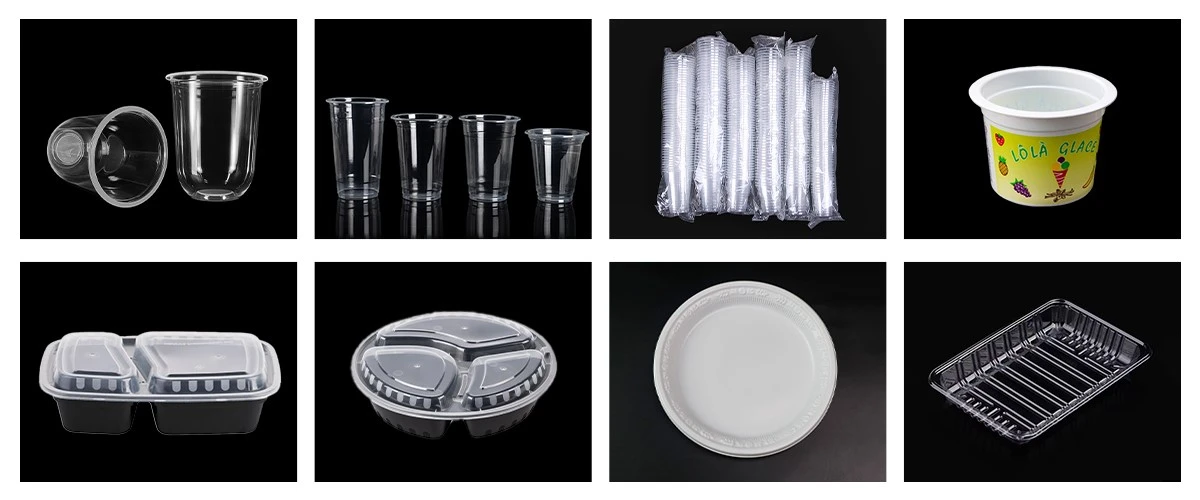

- -It is suitable for producing disposable products like plastic bowls, ice-cream cups, cold drinking cups, yoghourt cups, trays, covers, lids, containers, etc.
- -Stable, low, noise, high efficiency, suitable for producing disposable, low, noise, high efficiency
- -Feeding motor: 0.75kw,50Hz;loading motor：1.5kw, 50Hz
- -It can produce a number of cups quickly.
- -Energy saving, safety, environmental protection, high qualified products
- -The machine set piece, heating, stretching to send, molding, cut one-time completed.
- -The machine is completely automatic, productive speed is fast. Different products can be produced with different molds.
- -Machine, electricity, gas integration; have manual, semiautomatic, automatic three operation function.
Glass Cup Thermoforming Machine of Technical Parameters
| Model | TQC-650B |
| Max Forming Area | 650*320mm |
| Max Forming Depth | 125mm |
| Sheet Thickness | 0.3-1.8mm |
| Suitable Sheet Width | 660mm |
| Suitable Sheet | PP, PS, HIPS, PET, PVC, PLA etc. |
| Air Pressure | 0.6-0.8mpa |
| Air Consumption | 2.0m³/min |
| Water Consumption | 0.5m³/h |
| Rated Power | 98Kw |
| Heating Power | 78Kw |
| Power Supply | AC 380V,50Hz, Three-phase, Four-wire |
| Dimension | L7000*W2000*H3100mm |
| Weight | About 6T |
