Polypropylene Extrusion
1. Mono layer & Multi-layer Sheet Extrusion Systems
2. Versatile & reliable downstream equipment.
3. Complete Sheet Extrusion Line with extruders from 55-250mm.
4. Processing Capabilities:PP、PS、PET、PE、PLA and other thermoplastic materials.

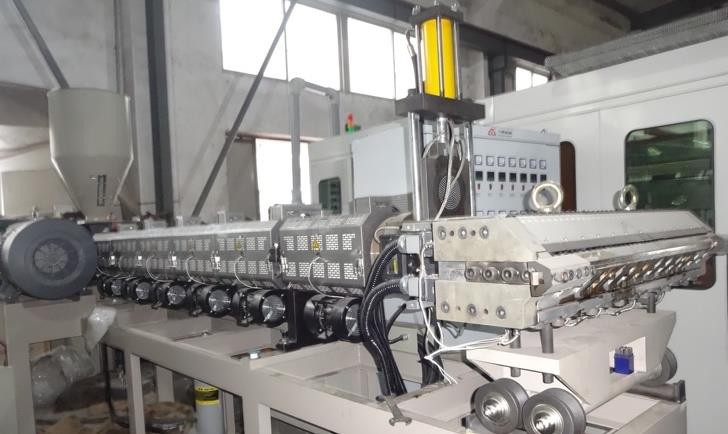

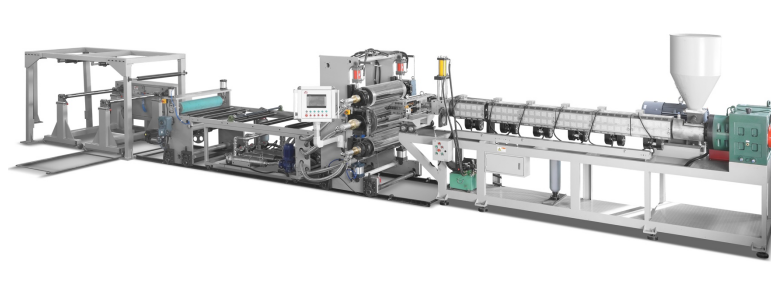

The polypropylene extrusion is composed of extrusion, calendaring, traction and rolling. The main parts are abrasion resistant, resistant to corrosion, high-temperature resistant by high quality specially-treated.
Low resistance force in die head extruding channel makes sheet thickness evenly, the internal spiral tank in three rollers ensures an effective cooling and it is easy to change and install net changer with the hydraulic pressure unit, no need to stop machine.
The machine extrudes PP/PS granule to PP/PS sheet with single color, which is used for producing plastic products by plastic thermoforming machines, like cups, food container, trays, dishes, bowls, lids, etc.

Main Features of Polypropylene Extrusion:
1. High strength,light weight.
2. Good designability.
3. Anti-fire,anti-water,anti-aging,anti-corrosive
4. Enviromental protection
5. Wide application
Samples:

Technical Parameter of Polypropylene Extrusion:
| Model | TJS-750E |
| Suitable Sheet | PP,PS |
| Sheet Width (Max.) | 750mm |
| Mould width | 950mm |
| Sheet Thickness | 0.3-2.0mm |
| Compressed air source pressure | 0.6-0.8Mpa |
| Screw Rod Dia | 125mm |
| Screw L/D Ratio | 35:1 |
| Max. Output | 400kg/hour |
| Rated Current | 500A |
| Rated Powe | 320kW |
| Energy consumption | 220kW |
| Main Motor Power | 160kw |
| Power Supply | AC 380V,50Hz, Three-phase, Four-wire |
| Dimension | L15388*W3615*H2900mm |
| Weight | About 12T |
Industries & Applications
- Food Packaging: Production of disposable food containers, trays, lids, and dividers.
- Disposable Tableware: Manufacturing spoons, plates, and other single-use items for microwave or takeaway use.
- Beverage & Takeaway: PP cups, lids, and holders for high-volume food service brands.
- Industrial Materials: Impact-resistant or rigid sheets for logistics liners and protective applications.
- Recycling & Sustainability: Supports the use of recycled PP materials to improve material reuse and circular production.
