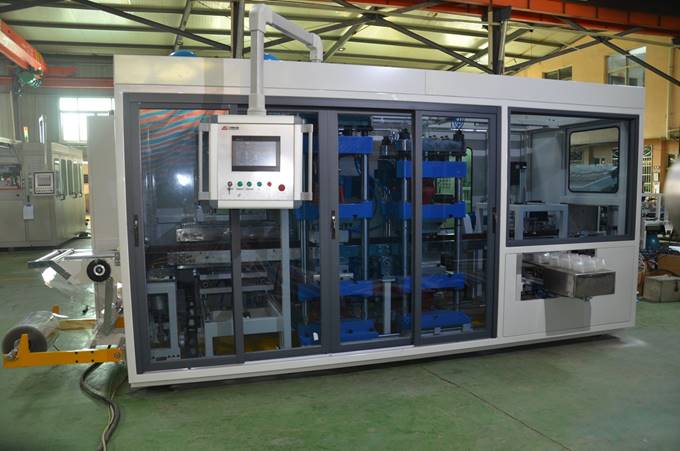

Plastic Packaging Box Thermoforming Machine

The Plastic Packaging Box Thermoforming Machine suitable for forming PP, PS, HIPS, PVC, PET, and other plastic sheets, producing various cups, bowls, plates, lids, boxes and other products, such as milk cups, jelly cups, disposable beverage cups, instant noodle bowl.

It is suitable for processing different materials, such as PP, PS, HIPS, PET, PVC, PLA etc. processing high transparency, high stretch, shallow stretch, round, square, upper and lower two-way stretch, flanged and other products, including trays, lids, fruit and vegetable boxes, flower pots, shells, seedling trays and plates, etc.

Plastic Packaging Box Thermoforming Machine of Parameter:

Finished Product Display

A plastic packaging box thermoforming machine is widely used in the processing of PP, PE, PVC, PS, PET, and other plastic sheets. It can produce various food packaging products such as plastic cups, plastic boxes, plastic plates, plastic trays, plastic bowls, and so on.

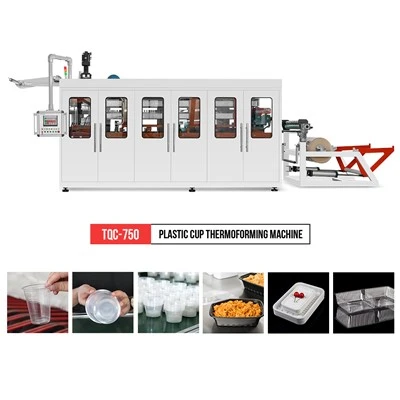

Plastic Cup Forming Process

The production of Plastic Packaging Box Thermoforming Machine has roughly gone through forming, heating, plastic forming, edge trimming, stacking, and finished products. A plastic cup making machine can complete the process from heating to forming the sheet. Sheet extruders process plastic pellets into sheet rolls.



Structure & Design

Explore the detailed structure and configuration to see how our machine ensure precision, stability, and efficiency

Feeding Device

Labor & Cost Savings
Improved Efficiency & Productivity
Able to work with double roll
Max.roll diameter: 1000mm

Heating Device

Energy Efficiency save 30%
Elstein ceramic heaters, individually adjustable(line by line)
Can control the temperature by PLC directly

Operation Screen

Live Data Display – Shows temperature, pressure, and cycle status in real time.

mergency Stop & Alarms – Ensures quick response to operational hazards.

Multi-Language Support – Accommodates global operators.

Forming Station

Max mould size:520*400mm
Max depth:110mm
Servo driven plug assist on top forming station
Stable square struction,provide stable forming

Cutting Station

Servo motor driven Movable cutters, to adjust the cutting by itself High-quality cutters, save spare parts costs Top nut locking structure, providing stronger force



Stacking Station

Different stacking schemes can be formulated according to the customer's requirements.

You just tell me the sample size & photo that you want,let us do the remaining work:

1. Recommend and manufacture suitable machine for you.

2. Before delivery, we will test the machine until you are completely satisfied. (You can come to our factory to inspect the running production line.)

3. After-sales service:
(1) Free Spare Parts;
(2) Machine installation and commissioning;

(3) Training your workers;
(4) Machine maintenance and repair service ;
(5) Video/Online technical support.

4.LITAI project service:

(1) Complete production line;
(2) Drawing for factory layout and other information for helping customer to build the factory;
(3) Electric cabinet, water pump, air compressor, etc. that will be used in the new factory;
(4) Raw material;
(5) After warranty service.
