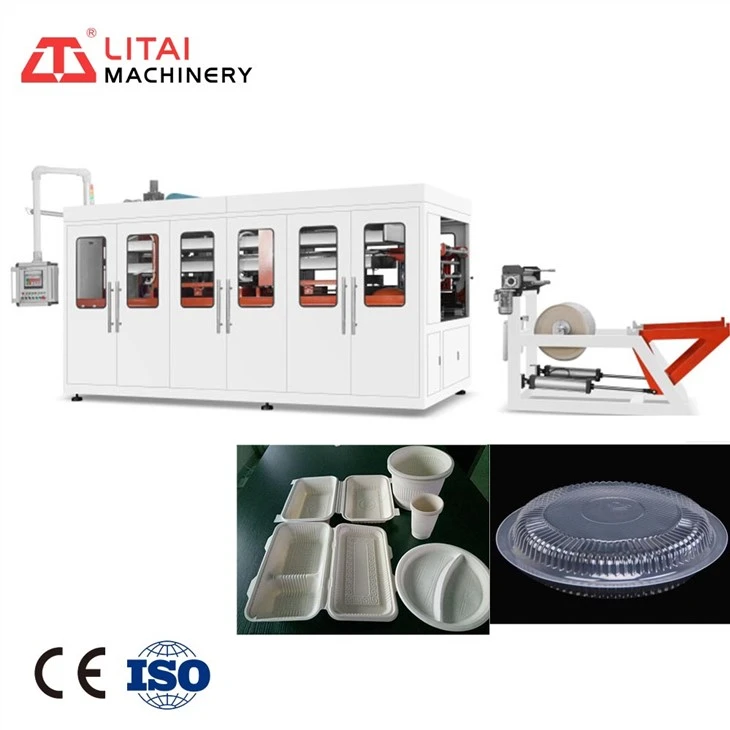

Plastic Kitchen Plate Making Machine
Model: TQC-650B
Mould Size (Max.): 650mm x 300 mm
Forming Depth (Max.): 125mm/180mm
Sheet width (Max.): 660mm
Main Motor Power: 98Kw
Heating power: 78KW
Dimension: L7000 x W2000 x H3100mm
Suitable Sheet Material:PP / PET / PVC / PS / HIPS / GPPS / Biodegradable Materials
Advantages of Our Plastic Glass Making Machine
1. Auto-Makes Cups Fast
This machine can produce 400 to 600 cups of coffee per hour, so an operator can produce 3,200 to 4,800 cups of coffee a day.
2. Works With Paper & Plastic
It takes 20 minutes to switch between materials - just switch the raw materials and adjust some Settings.
3. Makes Sturdy, Leak-Proof Cups
It uses precise folding (for paper) or molding (for plastic) to create a tight seal, so the cup won't drip or collapse when it's full.
4. Easy To Use
The control is very simple: Select your cup size from the panel (for example, 250 milliliters of coffee), fill it with a paper roll or plastic pellets, and then press "Start".
Samples:
Parameter of Plastic Kitchen Plate Making Machine:
| Model | TQC-650B |
| Mould Size (Max.) | 650*300mm |
| Sheet width | 660mm(Max) |
| Max. Forming Depth | 125-180mm(custom height) |
| Max. Forming Speed | 30times/min |
| Sheet Thickness | 0.3-1.8mm |
| Suitable Sheet Width | 660mm |
| Suitable Sheet | PP, PS, HIPS, PET, PVC, PLA etc. |
| Air Pressure | 0.6-0.8mpa |
| Air Consumption | 2.0m³/min |
| Water Consumption | 0.5m³/h |
| Rated Power | 98Kw |
| Heating Power | 78Kw |
| Power Supply | AC 380V,50Hz, Three-phase, Four-wire |
| Dimension | L7000*W2000*H3100mm |
| Weight | About 6T |
