Plastic Disposable Box With Lids Making Machine
Model: TTF-520AF
Station：Four station
Max.Forming Area: 520*400mm
Max.Forming Height: 110mm
Sheet thickness：0.2-2mm
Forming Speed (Max.): 40times/min
Power supply: AC 380V, 50Hz, Three-phase, Four-wire
Application: trays, containers, boxes, lids, etc.
Core Components: PLC, Engine, Bearing, Gearbox, Motor, Gear, Pump
Suitable Material: PP, PS, HIPS, PET, PVC, PLA etc.
TTF Series Plastic Disposable Box With Lids Making Machine adopts the most advanced thermoforming technology. It is a combination of mechanical,electrical and pneumatic components,and the whole system was controlled by micro PLC.The machine has man-interface operation,radiant heat,male and female die forming and laser blade cutting.it combines feeding,heating,forming,cutting and stacking into one process.
It is suitable for processing different materials, such as PP, PS, HIPS, PET, PVC, PLA etc. processing high transparency, high stretch, shallow stretch, round, square, upper and lower two-way stretch, flanged and other products, including trays, lids, fruit and vegetable boxes, flower pots, shells, seedling trays and plates, etc.
Parameters of Plastic Disposable Box With Lids Making Machine:
| Model | TTF-520AF |
| Station | Four station |
| Mould Size (Max.) | 520*400mm |
| Forming Depth (Max.) | 110mm |
| Sheet thickness | 0.2-2mm |
| Forming Speed (Max.) | 40times/min |
| Air pressure | 0.6-0.8mpa |
| Air consumption | 3.0 m³/min |
| Water consumption | 0.7m³/h |
| Sheet width (Max.) | 550mm |
| Suitable Sheet | PP, PS, HIPS, PET, PVC, PLA etc. |
| Power supply | AC 380V, 50Hz, Three-phase, Four-wire |
| Rated power | 136Kw |
| Heating power | 75Kw |
| Procedure | Forming-punching-cutting-stacking |
| Dimension | L10800*W4200*H2800mm |
| Weight | About 11.0T |
Main Functions:
Thermoforming-Punching-Cutting-Stacking.
All movements driven by servo motor.
Feeding,forming,cutting and stacking processing are compete production automatically.
Mould with rapid change device,easy maintenance.
Forming with 6bar air pressure and vacuum.
Maximum speed 50 cycles per minutes.

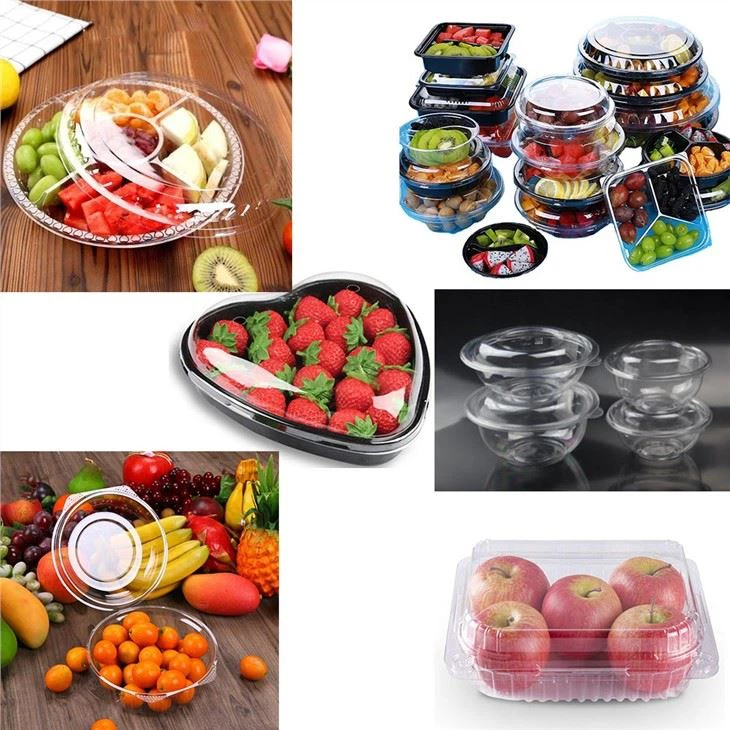

Finished Samples:
1. Purchase Service
Ruian Litai Company has a specialized and efficient working team. If you are new on the printing and packing area, some samples of your products shown to us will be appreicated, and we will give you professional suggestions of whole work.
2. Installation Service
Litai company will assigned 1 technician to coordinate installation, commissioning and training.
3. Warranty Service
12 months limited warranty. Starting from the date of machine arrival buyer's place excluding wear parts.
