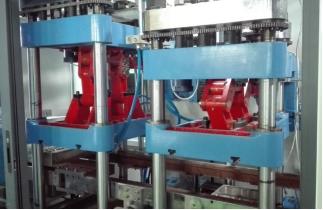

Disposable Plate Making Machine

The Disposable Plate Making Machine adopt PLC system to control: mould travel, mould opening and closing. The pressure of cutting is set on touch screen. It can automatically complete all actions such as loading, feeding, heating, forming, punching, cutting, stacking, finished product transportation, and edge material winding. The travel of mould can be regulated freely. It is widly used to produce disposable products, such as cups, lids, bowls, contaienrs and so on
It is suitable for processing different materials, such as PP, PS, HIPS, PET, PVC, PLA etc. processing high transparency, high stretch, shallow stretch, round, square, upper and lower two-way stretch, flanged and other products, including trays, lids, fruit and vegetable boxes, flower pots, shells, seedling trays and plates, etc.

Disposable Plate Making Machine----Technical parameters:

Disposable Plate Making Machine---Samples:

It is used to form plastic sheets such as PP PS HIPS PVC PET, etc. It can be widely used in the production of various plastic boxes, containers and other plastic products, such as ice cream cups, milk cups, chocolates, packaging boxes, candy boxes, fast food boxes, food boxes, etc.

Key Features of the Thermoforming Machine

1. Maximum Mold Dimensions: 820 x 580 mm, allowing the production of a variety of thermoforming products

2. Cycle Speed: Up to 75 cycles per minute, ensuring fast and consistent output

3. Maximum Sheet Width: 840 mm, enabling the use of larger thermoforming plastic sheets

4. Material Compatibility: PET, CPET, PP, PVC, PS, OPS, PLA, with a maximum sheet thickness of 2mm.

5. Advanced In-Mould Cutting Technology：The in-mould cutting feature ensures precise shaping and trimming of products directly within the mold.



Structure & Design

Explore the detailed structure and configuration to see how our machine ensure precision, stability, and efficiency

Heating Device

Energy Efficiency save 30%
Elstein ceramic heaters, individually adjustable(line by line)
Can control the temperature by PLC directly

Operation Screen

Live Data Display – Shows temperature, pressure, and cycle status in real time.

mergency Stop & Alarms – Ensures quick response to operational hazards.

Multi-Language Support – Accommodates global operators.

Forming Station

Max mould size:820*650mm
Max depth:140mm
Servo driven plug assist on top forming station
Stable square struction,provide stable forming

Cutting Station

Servo motor driven Movable cutters, to adjust the cutting by itself High-quality cutters, save spare parts costs Top nut locking structure, providing stronger force

Stacking Station

Different stacking schemes can be formulated according to the customer's requirements.

Waste Recycling

Edge trim is fed to the waste rewinding system for recycling. Its special clutch automatically cuts power when the roll becomes too large, preventing overload and extending motor lifespan.

Packaging & Shipping

FAQ

1. Can this thermoforming machine handle both vacuum and pressure forming methods?

Yes, the thermoforming machines support both vacuum forming and pressure forming techniques, allowing flexible production depending on mold complexity.

2. What thermoplastic materials are compatible with these thermoforming machines?

These machines are compatible with a wide range of thermoplastics including PET, PVC, Polypropylene (PP), and Polystyrene (PS).

3. Are fully automatic configurations available for these thermoforming machines?

Yes, the product range includes manual, semi-automatic, and fully automatic thermoforming machines featuring automatic sheet feeding, cutting, stacking, and inline quality control.

4. What industries commonly use these thermoforming machines?

Industries such as food packaging, automotive manufacturing, medical devices, electronics, and consumer goods extensively utilize these thermoforming machines.

5. How does the machine ensure precision for complex mold shapes?

The machines use precise temperature control and pressure regulation, combined with high-quality molds to achieve detailed and consistent product shapes.
