Disposable Plastic Plate Making Machine
Model: TTF-520A
Station：Three station
Max.Forming Area: 520*400mm
Max.Forming Height: 110mm
Sheet thickness：0.2-2mm
Forming Speed (Max.): 30times/min
Power supply: AC 380V, 50Hz, Three-phase, Four-wire
Application: trays, containers, boxes, lids, etc.
Core Components: PLC, Engine, Bearing, Gearbox, Motor, Gear, Pump
Suitable Material: PP, PS, HIPS, PET, PVC, PLA etc.
Disposable plastic palte making machine designed by our company is all-powerful. It can be used for forming kinds of plastic sheet. This machine adopt PLC control, it has group possesses reliable stability, large forming area, high production and automatic degree. The machine can mainly forming the PS/PP material which is used to produce food container, tray, bowl, cup etc. Forming, cutting, stacking are done in the same machine, saving labor, improving efficient, lowing labor intensity and reducing production cost. Production process is to put foam sheet into forming machine, and product and wastage will come out from the rear part.
Disposable Plastic Plate Making Machine---Technical parameter
| Model | TTF-520A |
| Station | Three station |
| Mould Size (Max.) | 520*400mm |
| Forming Depth (Max.) | 110mm |
| Sheet thickness | 0.2-2mm |
| Forming Speed (Max.) | 40times/min |
| Air pressure | 0.6-0.8mpa |
| Air consumption | 3.0 m³/min |
| Water consumption | 0.7m³/h |
| Sheet width (Max.) | 550mm |
| Suitable Sheet | PP, PS, HIPS, PET, PVC, PLA etc. |
| Power supply | AC 380V, 50Hz, Three-phase, Four-wire |
| Rated power | 120Kw |
| Heating power | 75Kw |
| Procedure | Forming-cutting-stacking |
| Dimension | L9300*W4200*H2800mm |
| Weight | About 9.0T |
Key Features of the Thermoforming Machine
- Maximum Mold Dimensions: 520 x 400 mm, allowing the production of a variety of thermoforming products
- Cycle Speed: Up to 35 cycles per minute, ensuring fast and consistent output
- Maximum Sheet Width: 550 mm, enabling the use of larger thermoforming plastic sheets
- Material Compatibility: PET, CPET, PP, PVC, PS, OPS, PLA, with a maximum sheet thickness of 2mm.
- Advanced In-Mould Cutting Technology：The in-mould cutting feature ensures precise shaping and trimming of products directly within the mold.
Structure & Design
Explore the detailed structure and configuration to see how our machine ensure precision, stability, and efficiency

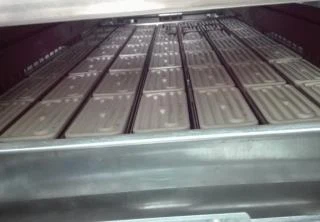

Heating Device
Energy Efficiency save 30%
Elstein ceramic heaters, individually adjustable(line by line)
Can control the temperature by PLC directly
Operation Screen
Live Data Display – Shows temperature, pressure, and cycle status in real time.
mergency Stop & Alarms – Ensures quick response to operational hazards.
Multi-Language Support – Accommodates global operators.

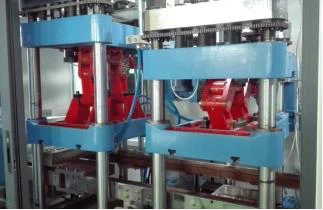

Forming Station
Max mould size:520*400mm
Max depth:110mm
Servo driven plug assist on top forming station
Stable square struction,provide stable forming
Cutting Station
Servo motor driven Movable cutters, to adjust the cutting by itself High-quality cutters, save spare parts costs Top nut locking structure, providing stronger force
Stacking Station
Different stacking schemes can be formulated according to the customer's requirements.
Waste Recycling
Edge trim is fed to the waste rewinding system for recycling. Its special clutch automatically cuts power when the roll becomes too large, preventing overload and extending motor lifespan.
FAQ
1. Are you a manufacturer?
Yes, we are professional manufactuer of producing thermofoming machines.
2. What is your product advantage?
Full servo motor drive,high heating speed , effective energy saving.
3. Machine adjustment and installation
We can dispatch technicians to customers' country for machine installation and
adjustment.
4. Guarantee time and after-sale service
One year guarantee time, after one year, professional after-sales department
providing best service to you if any problems.
