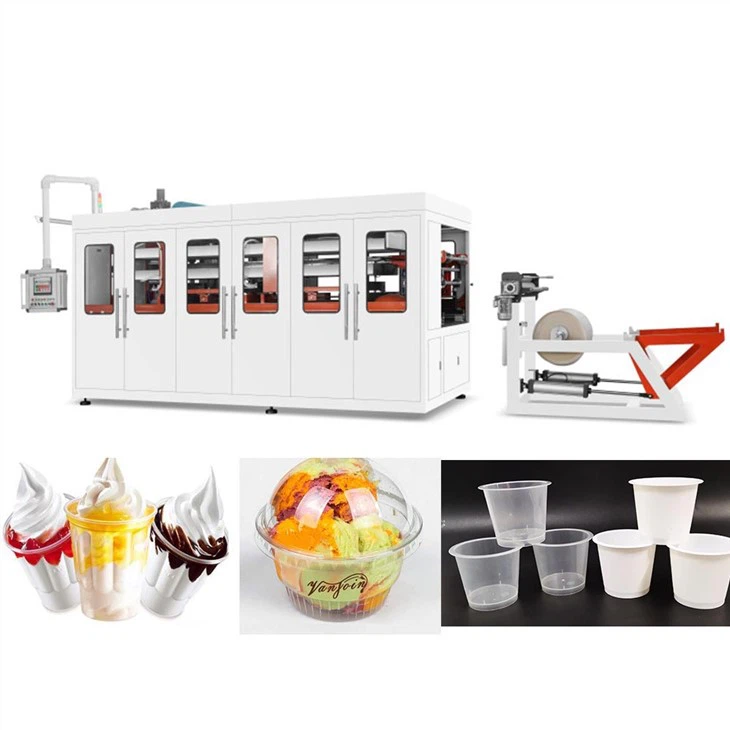

High Efficiency Automatic Forming Machine Plastic Water Cup Making Machine
Model: TQC-750
Mould Size (Max.): 750mm x 480 mm
Forming Depth (Max.): 180mm
Sheet width (Max.): 770m
Main Motor Power: 188.55KW
Heating Power: 146KW
Dimension: L8500*W2200*H3200mm
Suitable Sheet Material:PP / PET / PVC / PS / HIPS / GPPS / Biodegradable Materials

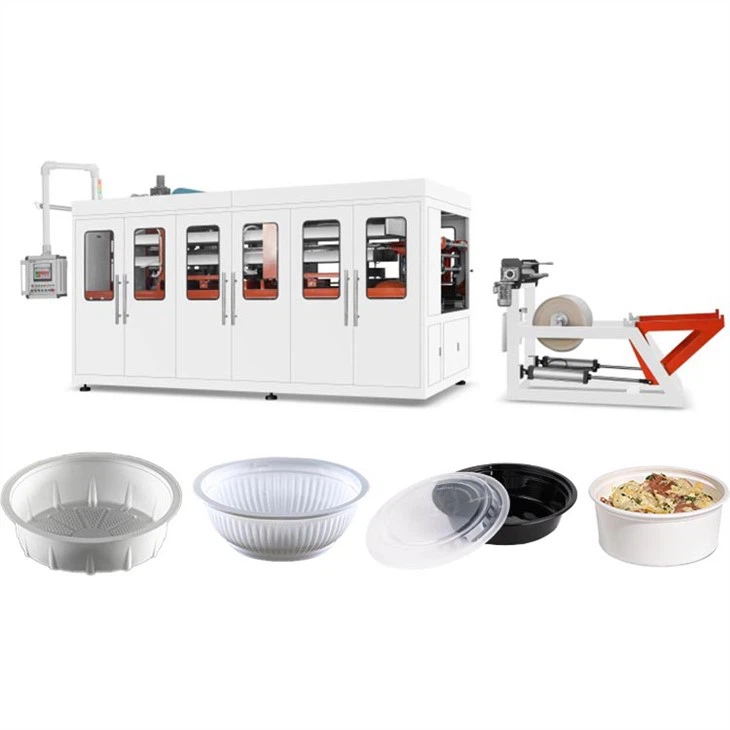

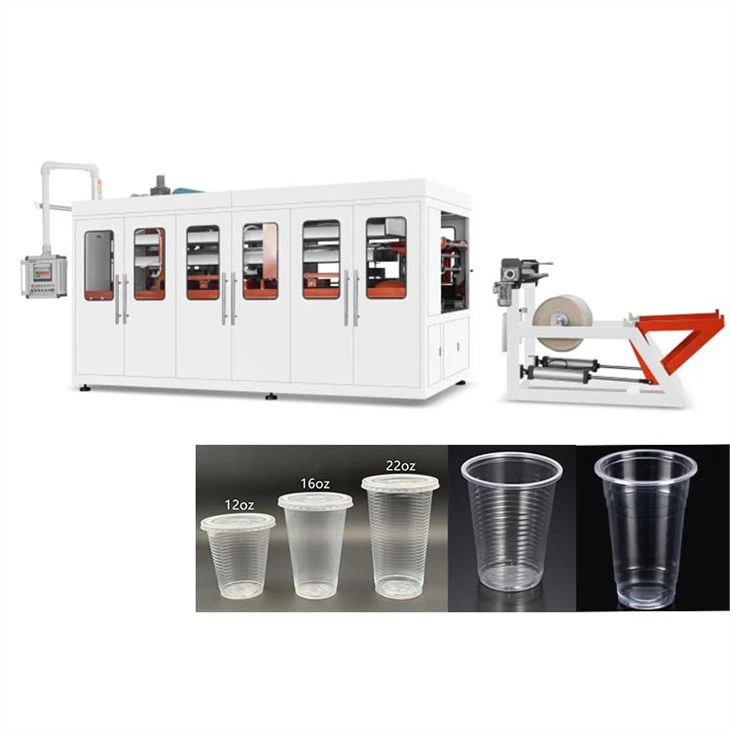

PLASTIC CUP MAKING MACHINE is widely used in producing disposable tablewares as various kinds of cups like ice cream cups, milk cups, jelly cups,cup covers, instant noodle bowls, toy boxes, etc. It can also be used in plastic package in medicine manufacturing, light industry, textile, tourism, etc.
High Efficiency Automatic Forming Machine Plastic Water Cup Making Machine working process:

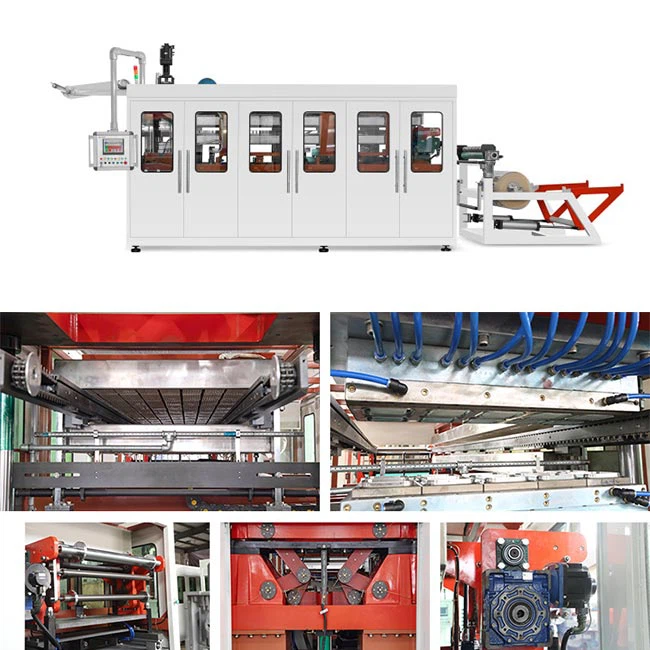

First, put the sheet on sheet loarder. Motor drives sheet to electric furnace,after heat the sheet by heater, transmit sheet to forming part, then stretch the piston and compress the air so that the thermoplastic can be closely attached to the mould and take shape finally, the products come into being after die cutting and automatic blowing, motor drive to rewind waste sheet.
Automatic Forming Machine Plastic Water Cup Making Machine
Features:

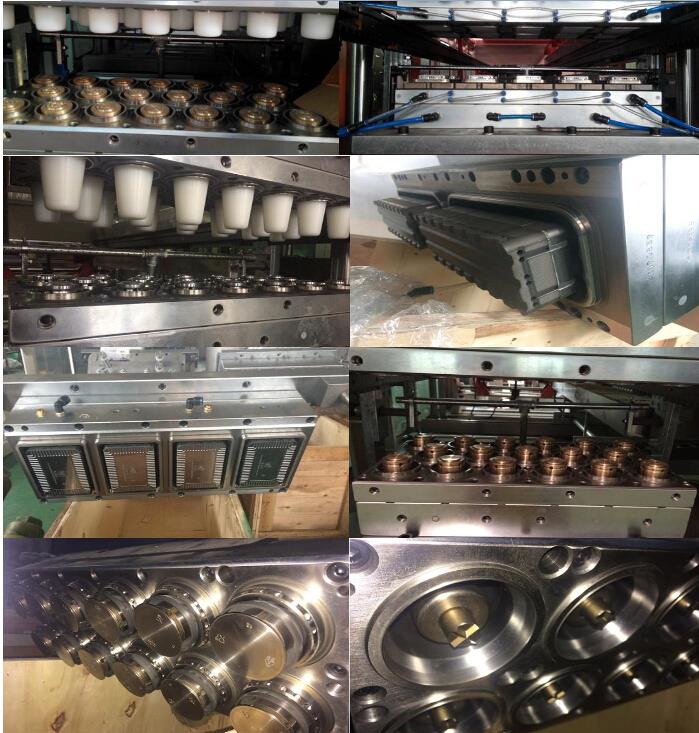

1. The machine is completely automatic, productive speed is fast.2. It uses import famous brands of electric and pneumatic fittings, so the operation is stable, quality is reliable and life is long. 3. The design of the mold is advanced and special, heat the thermoplastic plastic flake sheet and put on the mold, pull the piston, give the pressure to the air, keep the flake board close to the inside of the mold to form, then, cut and automatically blow the product.Automatic Forming Machine Plastic Water Cup Making Machine
parameters:
| Model | TQC-750 | TQC-650B |
| Mould Size (Max.) | 750*480mm | 650*300mm |
| Max. Forming Depth | 125-180mm(custom height) | 125mm |
| Max. Forming Speed | 30times/min | |
| Sheet Thickness | 0.3-1.8mm | |
| Suitable Sheet Width | 770mm | 660mm |
| Suitable Sheet | PP, PS, HIPS, PET, PVC, PLA etc. | |
| Air Pressure | 0.6-0.8mpa | |
| Air Consumption | 3.0m³/min | 2.0m³/min |
| Water Consumption | 0.7m³/h | 0.5m³/h |
| Rated Power | 173Kw | 98Kw |
| Heating Power | 146Kw | 78Kw |
| Power Supply | AC 380V,50Hz, Three-phase, Four-wire | |
| Dimension | L8500*W2300*H3300mm | L7000*W2000*H3100mm |
| Weight | About 8T | About 6T |
Samples:
FAQ
1. Can this machine produce Biodegradable (PLA) cups?
Yes, absolutely. PLA material is sensitive to temperature. The TQC-750S features German Heaters with Segment Control, allowing for precise temperature management to form PLA sheets perfectly without melting or deforming them.
2. What is the actual production capacity?
The machine runs at a maximum speed of 42 cycles per minute. Your total output depends on the mold layout (cavities). For example, if you use a 32-cavity mold for small water cups, the output would be 32 x 42 = 1,344 cups per minute.
3. How does the control system work?
The machine uses a Micro PLC system combined with a Man-Machine Interface (touchscreen). This allows the entire operation-from material feeding to cutting-to be automated and easily monitored by a single operator.
