Coffee Cup Lid Forming Machine

Coffee Cup Lid Forming Machine

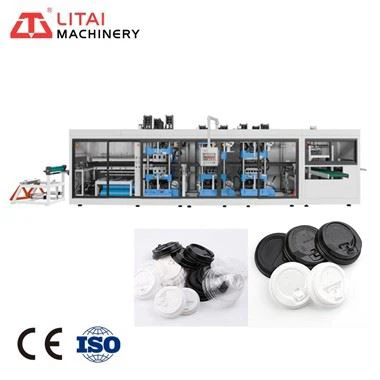

Application of coffee cup lid machine

TTF series thermoforming machine is forming, cutting and stacking in one line. It is completely driven by servo motor, stable operation, low noise, high efficiency, suitable for producing plastic trays, containers, boxes, lids, etc.

Product Description

Multi function plastic automatic thermoforming machine, using the latest international plastic sheet forming process technology It uses microcomputer and programmable control PLC control system, the entire system HMI (man-machine interface ). Laser blade punching, heating, forming, cutting, stacking four stations, advanced technology simultaneous running that is plastic sheet sending, heating, forming, punching, cutting, Stacking together to complete the plastic sheeting thermoforming machine.

Samples

Technical Parameter

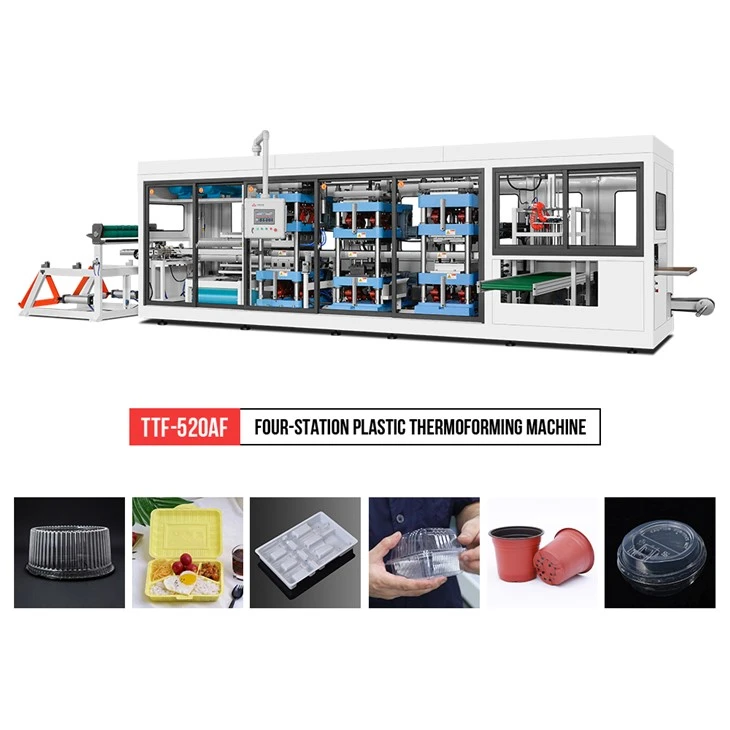

Detailed Introduction of the Equipment

1. It has a safety door alarm function. Once the door is opened, the machine will stop or alarm. When the door is closed, the machine starts working.
2. The equipment has a low center of gravity, high yield rate, stable operation, easy operation, and an attractive visual appearance.
3. It adopts a full servo motor drive to ensure the perfection of the product and the long life of the machine. Each servo motor is equipped with overload protection to prevent the machine from overloading.
4. The forming and punching stations are equipped with a quick mold change device, which greatly shortens the mold change time and reduces production costs.
5. Elstein adopts a fast response and effective temperature control module. The heating tile, combined with vacuum insulation cotton and a far-infrared heating method, improves heat conversion efficiency, ensures uniform heating of the board, increases production speed, and saves energy.
6. The conveying part adopts aluminum rails and #65Mn toothed chains, which have high hardness, good resilience, heat resistance, and internal cooling water to improve the cooling efficiency of the board. The paper feeding is driven by servo motors, making it more accurate and efficient.
7. The feeding and heating parts are equipped with photoelectric switches to prevent safety accidents caused by misoperation during the production process. The loading rack is combined with the machine to save workshop space and is easy to control.
8. Each station adopts an eccentric crank connecting rod structure transmission, which has higher transmission efficiency and ensures stable and efficient equipment operation.
9. The intelligent console interface (Delta) has a storage function. All parameters can be saved in the equipment for easy operation next time.
10. Each station is composed of a stable four-guide column (GCr15 steel, hard chrome plated on the outside) structure. This structure is wear-resistant, extending the service life of the equipment.

Packing&shipping

Service:

1. Professional deisgn department.

2. Engineers available to service machinery overseas

3. One year warranty.

4. Experienced after-sale department.

5.Installation Services are available with all customers. we can send our Enginner to your company to install the machines

FAQ

1. How&When can I get the price?

Email us your inquiry or communicate online, state your specifications (product, material, size, quantity etc).We usually quote within 24 hours. Please call us or inform in your email when it is urgent, we will regard your inquiry priority.

2. Can we see the machine operation in your factory?

Yes , We can arrange to run the machines when you come to visit your factory.

3. How do you after-sale service word if the product got damaged?

In the guarantee time 12 months,our general after-sale service is  changing the damaged parts for the customers
