TQC-650B Plastic Cup Thermoforming Machine

TQC-650B Plastic Cup Thermoforming Machine is a highly efficient equipment specially used for manufacturing disposable plastic cups. This equipment is the latest product developed by our company. The paper feeding and stretching parts are hydraulically driven. This machine produces plastic cups of various shapes and specifications through the process of feeding, heating, forming, slitting and blowing. The maximum forming area of ​​the equipment is 650*300mm, the forming depth is 125-180mm, the maximum forming speed is 30 times/min, and the water consumption is 0.5m³/h. The plastic cup thermoforming machine TQC-650B is widely used in the food and beverage industry, medical industry, household daily necessities manufacturing and other fields. PLC programming, manual interface operation, stable operation, low noise and high efficiency.

TQC-650B Plastic Cup Thermoforming Machine of Technical parameters

2. Working Principle

High-efficiency production:

The plastic cup thermoforming machine adopts a fully automated design, which can be completed in one go from heating, forming, cutting to collecting, greatly improving production efficiency. Tens of thousands of plastic cups can be produced per hour to meet the needs of large-scale production.

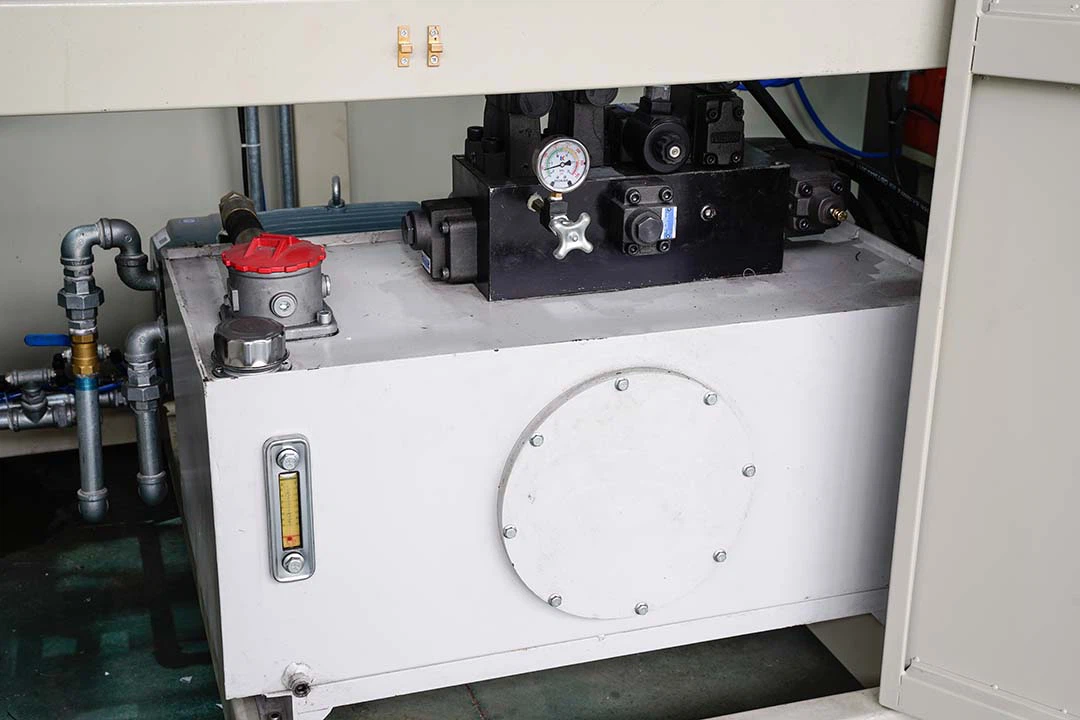

The equipment adopts hydraulic drive, and the hydraulic oil is pressurized by the hydraulic pump, and then transported to the hydraulic cylinder through the pipeline to push the piston to move, thereby pressurizing and releasing the mold. The pressure and flow of the hydraulic system can be precisely controlled, thereby ensuring the stability of the molding process and the quality of the product.

Precise control:

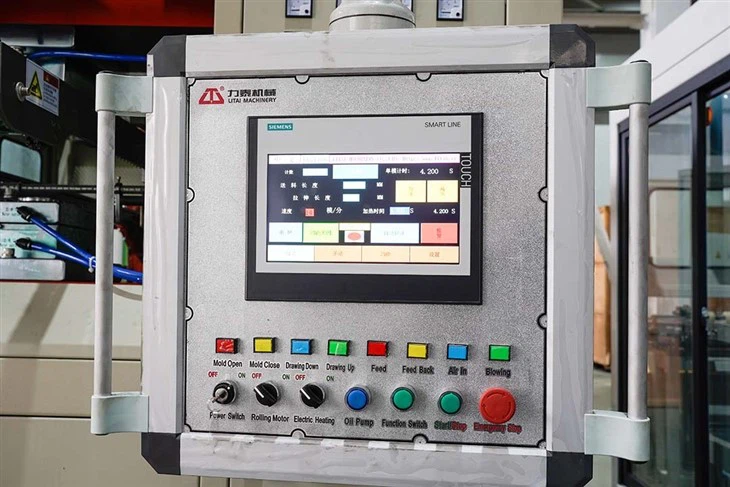

Advanced PLC control system achieves precise control of parameters such as temperature, pressure, molding time, etc., ensuring the quality consistency of each plastic cup. Touch screen interface, easy and intuitive operation, easy to adjust and monitor the production process.

Temperature controller: The temperature controller is the core control component of the thermoforming machine, receiving signals from the temperature sensor and maintaining the set temperature by adjusting the power output of the heater to achieve precise temperature regulation.

Energy saving and environmental protection: The equipment adopts an energy-saving heating system to reduce energy consumption and production costs. It is equipped with a waste recycling system to recycle the scraps generated during the production process, which meets environmental protection requirements.

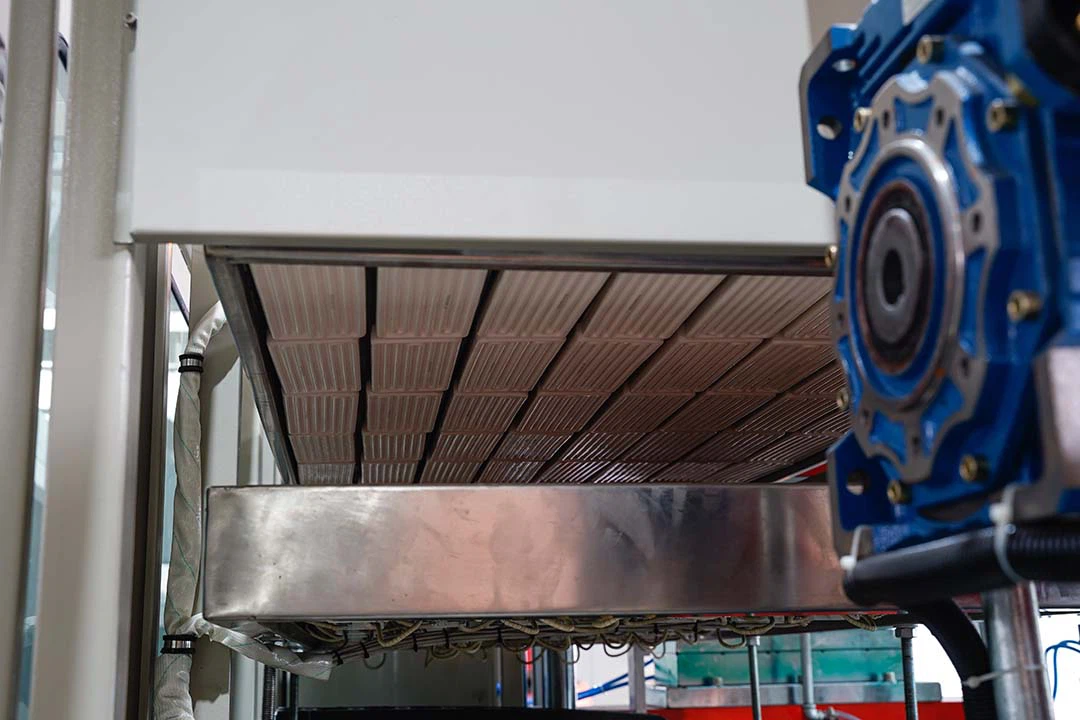

Heating tiles: The heater of a plastic thermoforming machine is composed of multiple ceramic heating tiles arranged in an array. Electric current is used to generate heat to heat the plastic sheet or plate to a temperature suitable for forming. The heaters are usually distributed in different areas of the machine to ensure uniform heating.

Multifunctional application:

By changing the mold, plastic cups of different specifications and shapes can be produced to meet various market needs. Applicable to a variety of plastic materials such as PP, PET, PS, etc., with a wide range of applications.

High stability and durability:

The main body of the equipment is made of high-strength steel and wear-resistant parts to ensure long-term stable operation and reduce maintenance costs. Key components are precisely processed and strictly tested to ensure the high reliability and durability of the machine.

TQC-650B Plastic Cup Thermoforming Machine of Application fields

Food and beverage industry: Manufacture of disposable beverage cups, ice cream cups, yogurt cups, etc.

Medical industry: Manufacture of disposable medical measuring cups, test tube racks, etc.

Household daily necessities: Manufacture of disposable household cups, picnic utensils, etc.

5. Customer Support and Service

We provide comprehensive pre-sales, sales and after-sales services:

Pre-sales service: Provide detailed product consultation and technical support, and recommend the most suitable equipment according to customer needs.

Sales service: Professional installation and commissioning team ensures smooth commissioning of equipment and conducts operation training.

After-sales service: Regular maintenance service, timely response to customer feedback, spare parts replacement and technical upgrades.
