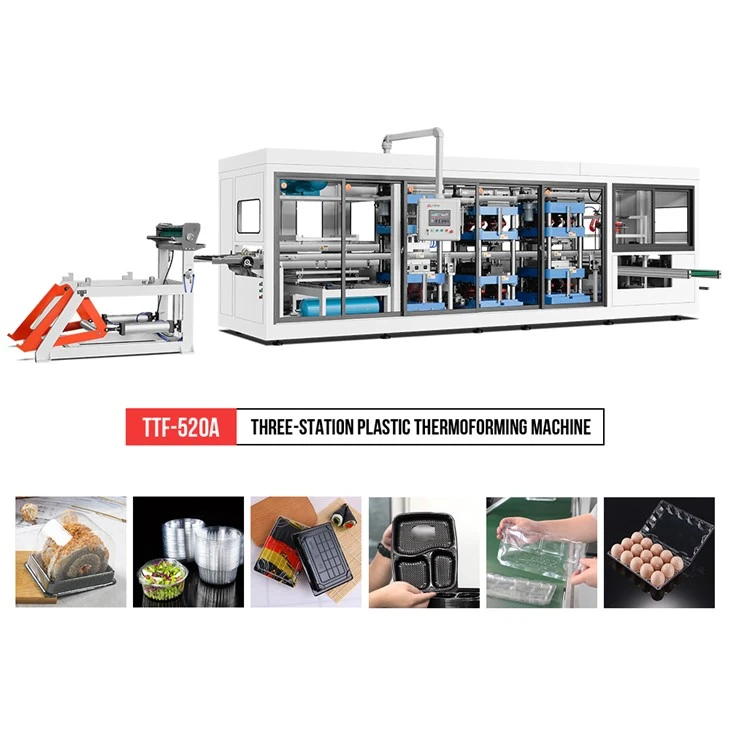

Meat Trays Making Machine
Model: TTF-520A
Station：Three station
Max.Forming Area: 520*400mm
Max.Forming Height: 110mm
Sheet thickness：0.2-2mm
Forming Speed (Max.): 30times/min
Power supply: AC 380V, 50Hz, Three-phase, Four-wire
Application: trays, containers, boxes, lids, etc.
Core Components: PLC, Engine, Bearing, Gearbox, Motor, Gear, Pump
Suitable Material: PP, PS, HIPS, PET, PVC, PLA etc.
LITAI is a China Meat Trays Making Machine manufacturer specializing in multi-station and automatic thermoforming machines for cups, trays, lids, bowls and food packaging products. Our systems support PP, PET, PVC, PLA and other thermoplastic sheet materials for high-speed, stable production.
Wide material compatibility: Suitable for PP, PE, PVC, PET and other thermoplastic materials, processing sheet thickness from 0.2 mm films to 2 mm sheets.
Multi-station production process: Integrates forming, punching, cutting and related production steps to support efficient packaging manufacturing.
Stable forming performance: Designed for precise production, reliable operation and consistent product quality across different thermoforming applications.
Flexible application range: Suitable for food packaging, disposable plastic products and other thermoformed packaging needs.
Meat Trays Making Machine of Parameters
| Model | TTF-520A |
| Station | Three station |
| Mould Size (Max.) | 520*400mm |
| Forming Depth (Max.) | 110mm |
| Sheet thickness | 0.2-2mm |
| Forming Speed (Max.) | 40times/min |
| Air pressure | 0.6-0.8mpa |
| Air consumption | 3.0 m³/min |
| Water consumption | 0.7m³/h |
| Sheet width (Max.) | 550mm |
| Suitable Sheet | PP, PS, HIPS, PET, PVC, PLA etc. |
| Power supply | AC 380V, 50Hz, Three-phase, Four-wire |
| Rated power | 120Kw |
| Heating power | 75Kw |
| Procedure | Forming-cutting-stacking |
| Dimension | L9300*W4200*H2800mm |
| Weight | About 9.0T |
Finished Product Display
Meat Tray Making machine Features:
The high-efficiency fully automatic positive and negative pressure machine,Using the most advanced plastic thermoforming technology at present, the whole machine adopts servo drive and programmable PLC control system, feeding, heating, forming, cutting, stacking integrated design.
Quality Assurance:
1. Machine using the latest international plastic sheet forming process technology.
2. The machine's core components are purchased by the developed manufacturing countries in order to guarantee the best quality machines, such as Germany, Japan and China Taiwan.
3. Each machine is fully tested by technical engineers before leaving the factory to ensure that each shipment to the customer's machine is the best performance.
Structure & Design
Explore the detailed structure and configuration to see how our machine ensure precision, stability, and efficiency.
Heating Device
Energy Efficiency save 30%
Elstein ceramic heaters, individually adjustable(line by line)
Can control the temperature by PLC directly
Operation Screen
Live Data Display – Shows temperature, pressure, and cycle status in real time.
mergency Stop & Alarms – Ensures quick response to operational hazards.
Multi-Language Support – Accommodates global operators.
Forming Station
Max mould size:520*400mm
Max depth:110mm
Servo driven plug assist on top forming station
Stable square struction,provide stable forming
Cutting Station
Servo motor driven Movable cutters, to adjust the cutting by itself High-quality cutters, save spare parts costs Top nut locking structure, providing stronger force
Stacking Station
Different stacking schemes can be formulated according to the customer's requirements.
Waste Recycling
Edge trim is fed to the waste rewinding system for recycling. Its special clutch automatically cuts power when the roll becomes too large, preventing overload and extending motor lifespan.
