Plastic Box Forming Machine
Plastic Box Forming Machine – High-Efficiency Automated Production Solution
LITAI MACHINERY CO., LTD.
Litai Machinery-24 years of focus on intelligent manufacturing of polymer material thermoforming equipment, ISO9001 internationally certified high-tech enterprise, with 100+ core patent certifications, providing precision thermoforming system solutions for medical, food packaging and other fields.tomers, and unlock new opportunities for growth and success in the beauty indsty.Send Inquiry Now

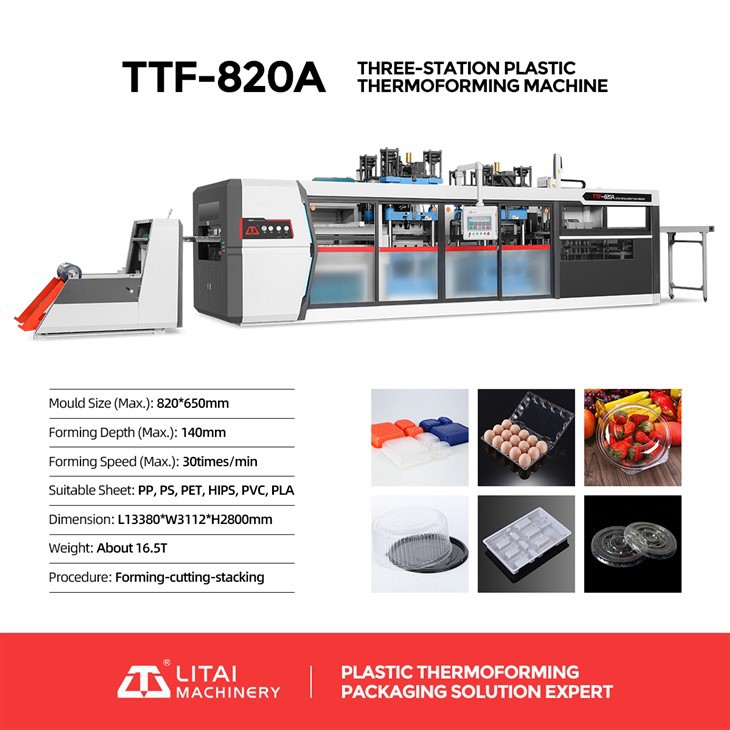

The TTF-820A Plastic Box Forming Machine delivers high-efficiency thermoforming with an 820×650mm forming area and 140mm max height, producing 30 cycles/minute. Compatible with PP, PS, HIPS, PET, PVC, PLA and other materials, this heavy-duty machine (16.5T, 13380×3112×2800mm) operates on 380V/50Hz three-phase power (199kW total, 140kW heating). Ideal for manufacturing food containers, egg trays, disposable bowls, and plastic pallets with precision and speed. Its robust design ensures reliable mass production of eco-friendly packaging solutions."
Why Choose LITAI TTF-820A?
Proven in Global Markets: Trusted by food packaging, pharmaceutical, and logistics industries.
Turnkey Support: Includes mold design, installation, and after-sales service.
Certified Safety: CE-compliant with overload protection and emergency stops.
Request a Quote Today!
Optimize your production line with the TTF-820A Plastic Box Forming Machine-combining speed, versatility, and reliability. Contact LITAI MACHINERY for technical details or a live demo.
| Technical Parameters | ||||
| Station | Four station | Three station | Four station | Three station |
| Model | TTF-820AF | TTF-820A | TTF-520AF | TTF-520A |
| Mould Size (Max.) | 820*650mm | 520*400mm | ||
| Forming Depth (Max.) | 140mm | 110mm | ||
| Sheet thickness | 0.2-1.6mm | |||
| Forming Speed (Max.) | 30times/min | |||
| Air pressure | 0.6-0.8mpa | |||
| Air consumption | 4.2m³/min | 4.0m³/min | 3.0 m³/min | |
| Water consumption | 1.0m³/h | 0.7m³/h | ||
| Sheet width (Max.) | 850mm | 550mm | ||
| Suitable Sheet | PP, PS, HIPS, PET, PVC, PLA etc. | |||
| Power supply | AC 380V, 50Hz, Three-phase, Four-wire | |||
| Rated power | 246Kw | 199Kw | 136Kw | 120Kw |
| Heating power | 171Kw | 140Kw | 75Kw | |
| Procedure | Forming-punching-cutting-stacking | Forming-cutting-stacking | Forming-punching-cutting-stacking | Forming-cutting-stacking |
| Dimension | L13000*W4300*H2800mm | L13380*W3112*H2800mm | L10800*W4650*H2670mm | L8200*W4650*H2670mm |
| Weight | About 21.0T | About 16.5T | About 11.0T | About 9.0T |
The Plastic Box Forming Machine is a fully automated, multi-station system designed for forming, punching, cutting, and stacking plastic containers. It significantly reduces labor input and production costs while improving efficiency. Ideal for manufacturing PP, PS, PET, PVC, and HIPS products in industries such as:
Pharmaceutical
Electronics
Agriculture
Food Packaging
Pharmaceutical
Plastic Box Forming Machine can produce plastic injection trays, tablet packaging trays, injection trays, etc.
Electronics
Plastic Box Forming Machine can produce charger packaging trays, USB disk packaging trays, mobile phone trays, etc.
Agriculture
Plastic Box Forming Machine can produce seedling trays, plastic flower pots, etc.
Food Packaging
Plastic Box Forming Machine can produce plastic takeaway boxes, biscuit boxes, cake boxes, fresh-keeping boxes, fruit boxes, etc.
Key Features of the Plastic Box Forming Machine
Multi-Station Design for Maximum Efficiency
Heating Station
Preheats plastic sheets for optimal molding.
Forming Station
Shapes softened plastic into precise container designs.
Cooling Station
Rapidly sets the molded product for stability.
Cutting & Stacking Station
Automatically trims and organizes finished products.
Main features
Multi-Station Design for Maximum Efficiency
High-Speed Production
Simultaneous multi-station operation minimizes downtime, boosting output.
Continuous workflow ensures smooth, high-volume manufacturing.
Precision Control for Consistent Quality
Advanced PLC systems regulate temperature, pressure, and timing for uniform results.
Ensures defect-free plastic boxes with tight tolerances.
Flexible & Adaptable
Compatible with various molds and plastic materials (PP, PS, PET, PVC, HIPS).
Quick mold changes enable fast transitions between product designs.
Fully Automated Operation
Integrated auto-feeding, robotic arms, and conveyor systems reduce manual labor.
Smart sensors enhance process reliability.
Energy-Efficient & Eco-Friendly
Optimized heating/cooling systems lower power consumption.
Reduced scrap rates minimize material waste.
Easy maintenance
Modular design simplifies servicing and part replacement.
Robust construction ensures long-term performance.
LITAI MACHINERY
Litai Machinery established in 2001,Located in the beautiful and rich coastal city - Wenzhou, Zhejiang province,excellent location,less than one hour drive from airport and high-speed rail station,close to major international ports--Ningbo and Shanghai port,very convenient transportation.
We are specialize in plastic thermoforming machines more over 24 years ,two main workshops cover area more than 13,000²,useable area more than 30,000²,Annual production capacity can reach 20-30 million US dollars.
We are mainly engaged in multi-station plastic thermoforming machines, plastic cup thermoforming machines, sheet extruder machines and more kinds of plastic thermoforming machines to meet customers' various needs for different products, materials, and output
Our machines are far exported to the United States, Mexico, Saudi Arabia, Russia, Egypt, Algeria, Indonesia, Thailand, Vietnam and other nearly 100 countries and regions at home and abroad
We established a complete service and quality assurance system from product developing and designing, manufacturing ,marketing and after-sales according to ISO 9001: 2000 International quality standard system and CE certification system, strictly controlled all aspects that may affect the quality of products and working.We will provide the best products and services for our customer who trusted us as "Serive first , customer foremost" is our company value!
vision of the future
Committed to providing customers with more competitive solutions for achieving automation and intelligent factories.
mission
Become a technology-innovative company welcomed by the society.
system of values
Customer first, active innovation, honest management, love for work and dedication.
company philosophy
Pioneering, innovating, breaking through, creating
