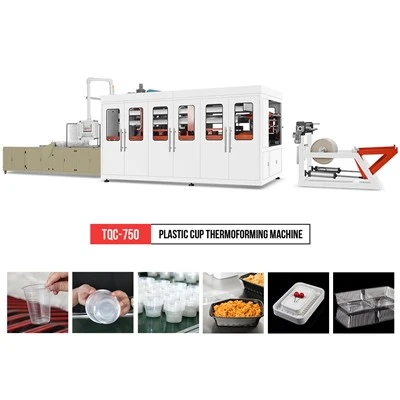

Plastic Pet Cup Making Machine
Model: TQC-650B
Mould Size (Max.): 650mm x 300 mm
Forming Depth (Max.): 125mm/180mm
Sheet width (Max.): 660mm
Main Motor Power: 98Kw
Heating power: 78KW
Dimension: L7000 x W2000 x H3100mm
Suitable Sheet Material:PP / PET / PVC / PS / HIPS / GPPS / Biodegradable Materials
We are the leading manufacturers and suppliers of Thermocol Disposable Plate Making Machine TQC series plastic thermoforming machine(plastic pet cup making machine ) adopt servo motor for sheet feeding and streching, PLC for programe, touch screen for operation, stable, low noise and high efficiency. Suitable for producing plastic cups(PET, PP, PS material), fruit containers, bowls, trays, fast food boxes and etc.
Plastic Pet Cup Making Machine of Technical Parameter:
| Model | TQC-750S | TQC-750 | TQC-650B |
| Mould Size (Max.) | 750*480mm | 750*480mm | 650*300mm |
| Max. Forming Depth | 180mm | 125-180mm(custom height) | 125mm |
| Max. Forming Speed | 30times/min | ||
| Sheet Thickness | 0.3-1.8mm | ||
| Suitable Sheet Width | 770mm | 660mm | |
| Suitable Sheet | PP, PS, HIPS, PET, PVC, PLA etc. | ||
| Air Pressure | 0.6-0.8mpa | ||
| Air Consumption | 3.0m³/min | 2.0m³/min | |
| Water Consumption | 0.7m³/h | 0.5m³/h | |
| Rated Power | 207Kw | 173Kw | 98Kw |
| Heating Power | 180Kw | 146Kw | 78Kw |
| Power Supply | AC 380V,50Hz, Three-phase, Four-wire | ||
| Dimension | L7900*W2300*H3400mm | L8500*W2300*H3300mm | L7000*W2000*H3100mm |
| Weight | About 8.2T | About 8T | About 6T |
Structure & Design
Material Conveying System
The sheet is smoothly guided into the conveyor chain through transition rollers, ensuring simple operation and more uniform heating across the sheet area.
Heating Device
Two brands of heating tiles are available to meet the needs of customers with different budgets. The heater is added with vacuum insulation cotton, which has fast heating feedback, short heating time and energy saving.
Forming Station
TQC-650B uses in-mold cutting technology, forming and cutting are done at the same station, the product cutting effect is better. The integrated station saves the machine's floor space and reduces customer costs.
Operation Screen
Operator-friendly HMl, and the system has the function of remote connection. lntelligent operation, the whole machine is equipped with formula storage and automatic adjustment without shutdown.
Waste Recycling
We have installed a waste reel device under the machine to reel up waste plastic sheets, making it easier for customers to handle waste sheets and reducing labor waste.
Belt-Type Cup Stacker
Optional belt-type cup stacker automatically arranges cups neatly as they drop into the machine, reducing the need for manual cup handling.
Plastic Pet Cup Making Machine Features:
1. Produce Disposable cups ,lids, dish, containers and trays with round ,square and rectangular or other shapes.
2 special cam and Toggle system of low noise and faster running,
3. Forming station driven by simple servo system
4. Touch screen and programmable PLC control
5. Precise index accuracy utilizing frequency inverter drive system
6. Retractable, independently operated upper and lower ovens moving forwards and backwards for more even temperature distribution
