Cupcake Box Thermoforming Machine
Model: TTF-520AF
Station：Four station
Max.Forming Area: 520*400mm
Max.Forming Height: 110mm
Sheet thickness：0.2-2mm
Forming Speed (Max.): 30times/min
Power supply: AC 380V, 50Hz, Three-phase, Four-wire
Application: trays, containers, boxes, lids, etc.
Core Components: PLC, Engine, Bearing, Gearbox, Motor, Gear, Pump
Suitable Material: PP, PS, HIPS, PET, PVC, PLA etc.
Cupcake Box Thermoforming Machine uses internationally advanced plastic sheet forming technology. It is a plastic sheet forming equipment with mechanical, pneumatic and electrical integrated design. It can automatically complete all actions such as loading, feeding, heating, forming, punching, cutting, stacking, finished product transportation, and edge material winding.
Plastic container cookie box thermoforming machine is used to producing high standard quality egg trays, cookie box, meat trays, bowls, clam shell packing, medical packaging and etc. Suitable material is PP,PS,PET,PVC,HIPS,Corn Starch and etc.
Parameters of Cupcake Box Thermoforming Machine
| Model | TTF-520AF |
| Station | Four station |
| Mould Size (Max.) | 520*400mm |
| Forming Depth (Max.) | 110mm |
| Sheet thickness | 0.2-2mm |
| Forming Speed (Max.) | 40times/min |
| Air pressure | 0.6-0.8mpa |
| Air consumption | 3.0 m³/min |
| Water consumption | 0.7m³/h |
| Sheet width (Max.) | 550mm |
| Suitable Sheet | PP, PS, HIPS, PET, PVC, PLA etc. |
| Power supply | AC 380V, 50Hz, Three-phase, Four-wire |
| Rated power | 136Kw |
| Heating power | 75Kw |
| Procedure | Forming-punching-cutting-stacking |
| Dimension | L10800*W4200*H2800mm |
| Weight | About 11.0T |
Finished Product Display
Cupcake box thermoforming machine is used to making plastic cupcake box, fruit box, food container, plastic trays, blister clamshell and etc. Suitable material is PP/PS/PET/PVC/HIPS/Corn starch and etc.
Features of Cupcake Box Thermoforming Machine
1. The machine is positive and negative pressure forming combined
2. It is low energy consumption, low noise, high degree of safety. Convenient operation and maintenance.
3. The machine are all driven by servo motor
4. Sheet loading is automatic and the max weight can be 1000KG.

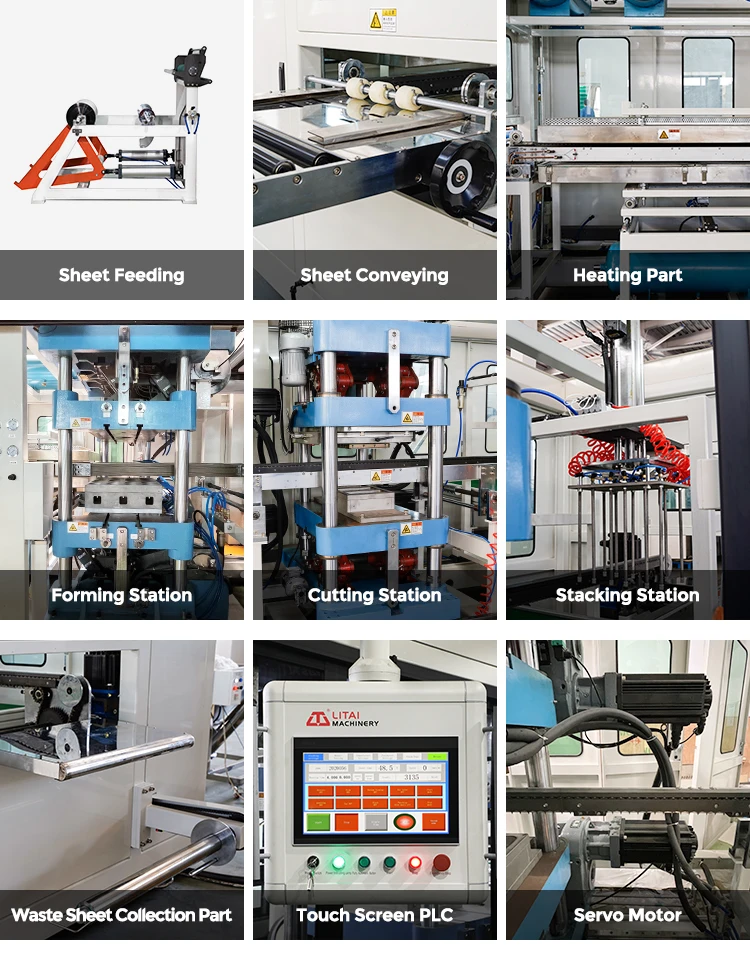

Machine detail
FAQ
1. Can this machine produce Biodegradable (PLA) cups?
Yes, absolutely. PLA material is sensitive to temperature. The TQC-750S features German Heaters with Segment Control, allowing for precise temperature management to form PLA sheets perfectly without melting or deforming them.
2. What is the actual production capacity?
The machine runs at a maximum speed of 42 cycles per minute. Your total output depends on the mold layout (cavities). For example, if you use a 32-cavity mold for small water cups, the output would be 32 x 42 = 1,344 cups per minute.
3. How does the control system work?
The machine uses a Micro PLC system combined with a Man-Machine Interface (touchscreen). This allows the entire operation-from material feeding to cutting-to be automated and easily monitored by a single operator.
