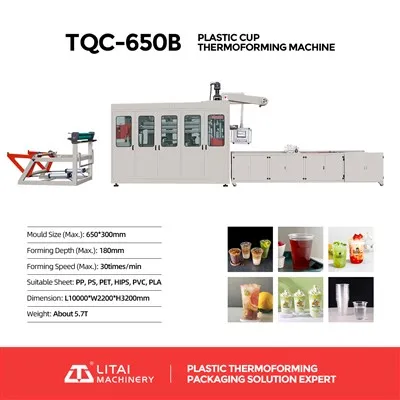

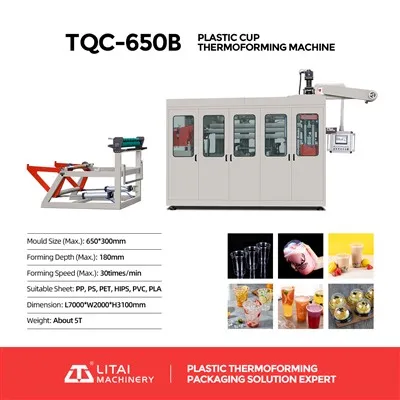

Plastic Coffee Cup Thermoforming Machine
Model: TQC-650B
Mould Size (Max.): 650mm x 300 mm
Forming Depth (Max.): 125mm/180mm
Sheet width (Max.): 660mm
Main Motor Power: 98Kw
Heating power: 78KW
Dimension: L7000 x W2000 x H3100mm
Suitable Sheet Material:PP / PET / PVC / PS / HIPS / GPPS / Biodegradable Materials
The plastic coffee cup thermoforming machine is a highly efficient and versatile equipment specially designed for mass production of plastic coffee cups and other plastic containers. It uses a thermoforming process to heat the plastic sheet to a suitable temperature to produce a deformed soft film, and then uses a mold to process it into the desired shape. This equipment is widely used in the food and beverage, catering and fast food industries, providing enterprises with efficient, stable and environmentally friendly solutions.
Applicable materials
The plastic coffee cup thermoforming machine is suitable for a variety of plastic materials, including PET, PS, PP, PLA, PVC, HIPS, etc. The equipment is widely evaluated by various food and beverage packaging manufacturers, fast food chains, catering service providers, etc., to provide the market with high-quality, environmentally friendly disposable plastic cup products.
Plastic Coffee Cup Thermoforming Machine of Parameters
| Model | TQC-650B |
| Mould Size (Max.) | 650*300mm |
| Sheet width | 660mm(Max) |
| Max. Forming Depth | 125-180mm(custom height) |
| Max. Forming Speed | 30times/min |
| Sheet Thickness | 0.3-1.8mm |
| Suitable Sheet Width | 660mm |
| Suitable Sheet | PP, PS, HIPS, PET, PVC, PLA etc. |
| Air Pressure | 0.6-0.8mpa |
| Air Consumption | 2.0m³/min |
| Water Consumption | 0.5m³/h |
| Rated Power | 98Kw |
| Heating Power | 78Kw |
| Power Supply | AC 380V,50Hz, Three-phase, Four-wire |
| Dimension | L7000*W2000*H3100mm |
| Weight | About 6T |
Plastic Coffee Cup Thermoforming Machine of Features
Efficient production
The thermoforming machine adopts advanced heating and forming technology, which can quickly bond plastic sheets into finished coffee cups. The high production speed can greatly improve production efficiency and meet the needs of large-scale production.
Automated operation
The equipment is equipped with a control system, and the operation is not required, reducing human intervention. The customized PLC controller and touch screen interface make the operation more intuitive and reduce the number of people to operate the control.
Precise molding
The precise mold design and control system are adopted to ensure that each finished product has the same size and uniform thickness, meeting strict quality standards.
Energy saving and environmental protection
Equipped with an efficient heating system, it can maintain a stable heating temperature while reducing the temperature, effectively reducing energy consumption. In addition, the equipment also supports the use of environmentally friendly and degradable materials, which is in line with the environmental protection trend.
Versatility
The thermoforming machine is not limited to the production of coffee cups, but can also produce plastic containers of different shapes and sizes, such as plastic bowls, cups, etc. by replacing the mold, with multiple flexibility and scalability.
Easy maintenance
The equipment design takes into account easy maintenance, and the modular structure allows the parts to be checked and replaced with each other. High-quality parts and stable performance ensure the long-term operation of the equipment.
Plastic coffee cup thermoforming machine is an ideal choice for the modern packaging industry. It is efficient, stable, energy-saving and environmentally friendly, which helps enterprises improve productivity and meet the market demand for bulk plastic products.
