PP PS Plastic Sheet Extruder Machine Single Layer
PP plastic sheet - Polypropylene ( PP ).Applications : Polypropylene is often used in the production of disposable tableware, and easy to recycle, at the same time due to the high temperature resistance of PP plastic, can be used in plastic products need microwave heating.
PET plastic sheet - Polyethylene terephthalate ( PET ). Applications : Soft drink bottles are the most common. It does not react with any food or liquid in contact with the material, making the PET bottle risk-free and safe to drink. It is 100% recyclable and highly sustainable.
Plastic thermoforming machine adopts servo motor driven systems and PLC control system with data operation, alarm. Suitable for producing PET, PLA sheet and recycled materials. It does not need the pre-crystallization drying system, low power consumption and high plasticizing effect.

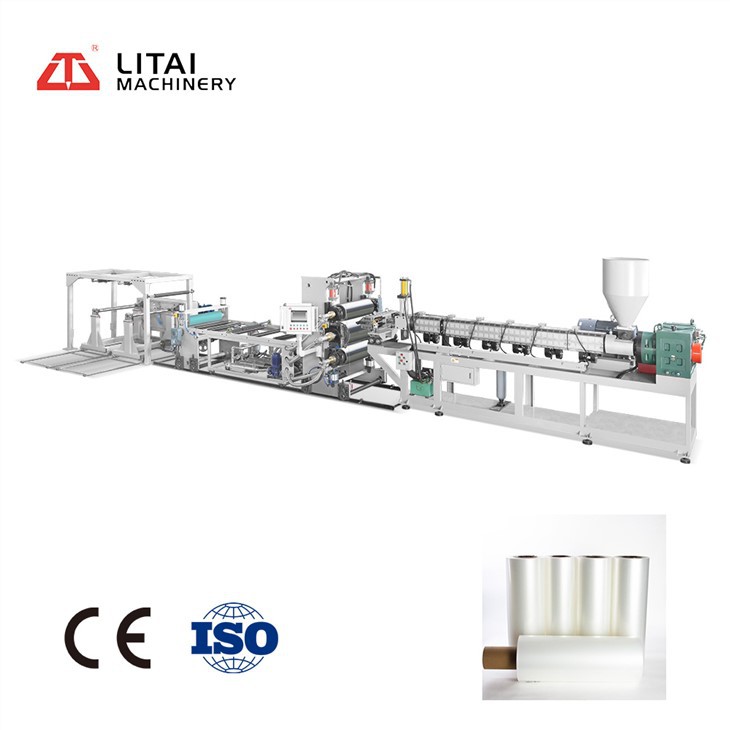

PP Sheet Extruder Line Schematic diagram of the production process
Polystyrene Sheet Extruder Line Application

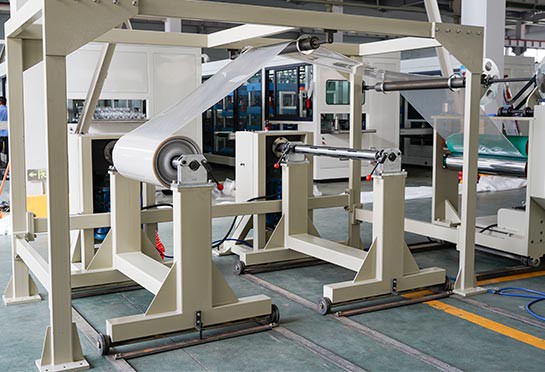

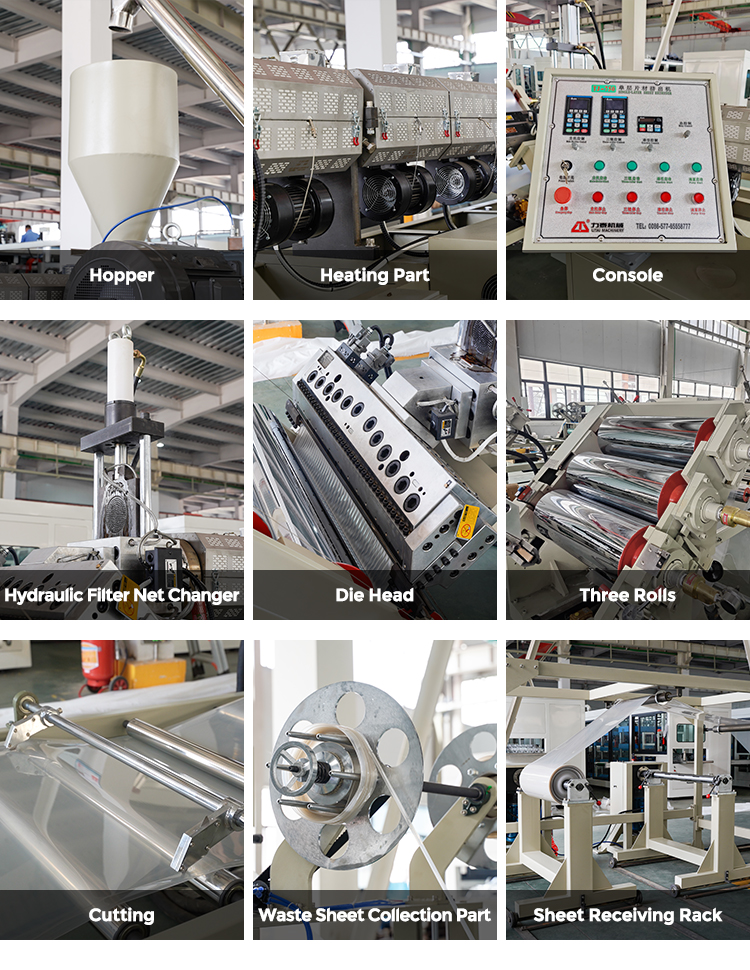

The sheet extruder is composed of extrusion, calendaring, traction and rolling.

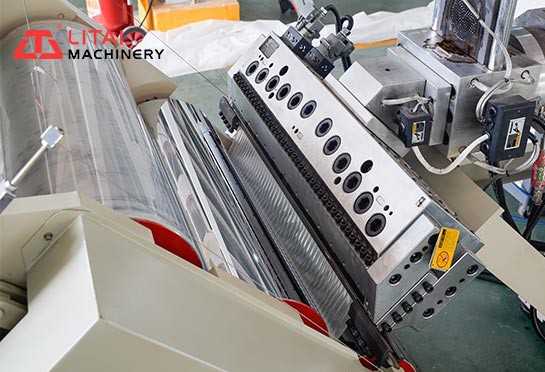

The main parts are abrasion resistant, resistant to corrosion, high-temperature resistant by high quality specially-treated. Low resistance force in die head extruding channel makes sheet thickness evenly, the internal spiral tank in three rollers ensures an effective cooling and it is easy to change and install net changer with the hydraulic pressure unit, no need to stop machine.

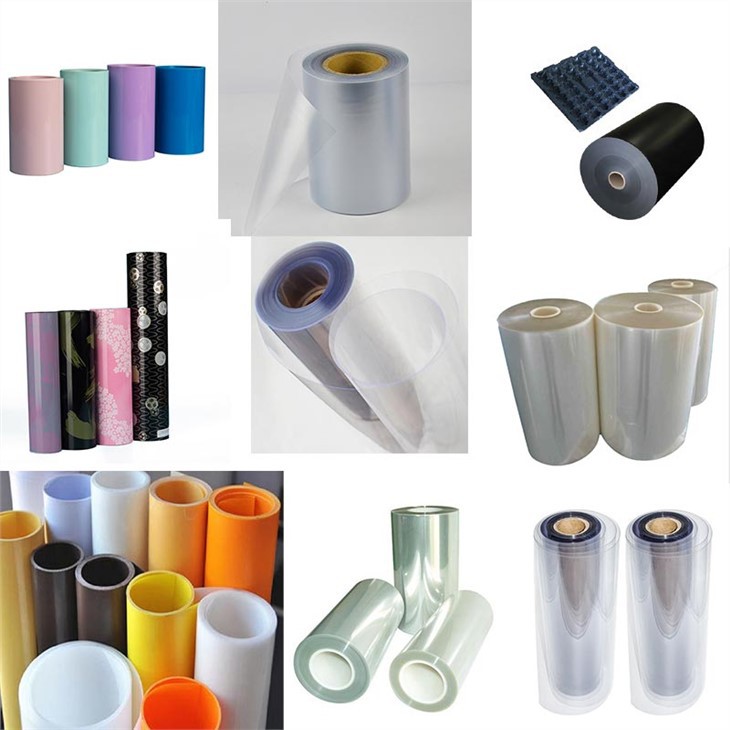

The machine extrudes PP/PS/PET granule to PP/PS/PET sheet with single color, which is used for producing plastic products by plastic thermoforming machines, like cups, food container, trays, dishes, bowls, lids, etc.
PP PS Plastic Sheet Extruder Machine of Technical Parameters
| Model | TJ-750E | TJ-750D | TJS-750F | TJP-900E |
| Suitable Sheet | PP,PS | PET,PLA | ||
| Sheet Width (Max.) | 750mm | 900mm | ||
| Mould width | 950mm | 1050mm | ||
| Sheet Thickness | 0.3-2.0mm | 0.2-1.8mm | ||
| Compressed air source pressure | 0.6-0.8Mpa | |||
| Screw Rod Dia | 125mm | 110mm | 120mm | Double Φ75mm |
| Screw L/D Ratio | 35:1 | 33:1 | 35:1 | 40:1 |
| Max. Output | 400kg/hour | 240kg/hour | 400-500kg/hour | 400kg/hour |
| Rated Current | 500A | 340A | 740A | 560A |
| Rated Powe | 320kW | 160kW | 420kW | 360kW |
| Energy consumption | 220kW | 220kW | 280kW | 280kW |
| Main Motor Power | 160kw | 110kw | 132kw | 132kw |
| Power Supply | AC 380V,50Hz, Three-phase, Four-wire | |||
| Dimension | L15388*W3615*H2900mm | L14000*W2600*H1800mm | L17000*W3615*H2718.5mm | L21500*W5430*H4710mm |
| Weight | About 12T | About 8T | About 12T | About 15T |
FAQ
Q: Are you a factory or trading company?
A：We are a factory, and we export our machines to more than 80 countries since 2001.
Q: How long is the warranty period?
A: 13months calculated from the date of shipment from our factory.During warranty period, except the artificial factor, the spares are free to maintenance, beyond the warranty time, the buyer needs to pay the spare charge and shipping cost.
Q: How to install the machine?
A: We will send technician to your factory to install the machine, and teach your workers to use it. You pay all related costs, including visa charge, double-way tickets, hotel, meals, and technician salary.
Q: Where is your factory located? How can we visit there?
A: Our factory is located in Ruian city, near to Wenzhou airport, about 40minutes to our factory by car. We will provide transporation service during your visit at our factory.
