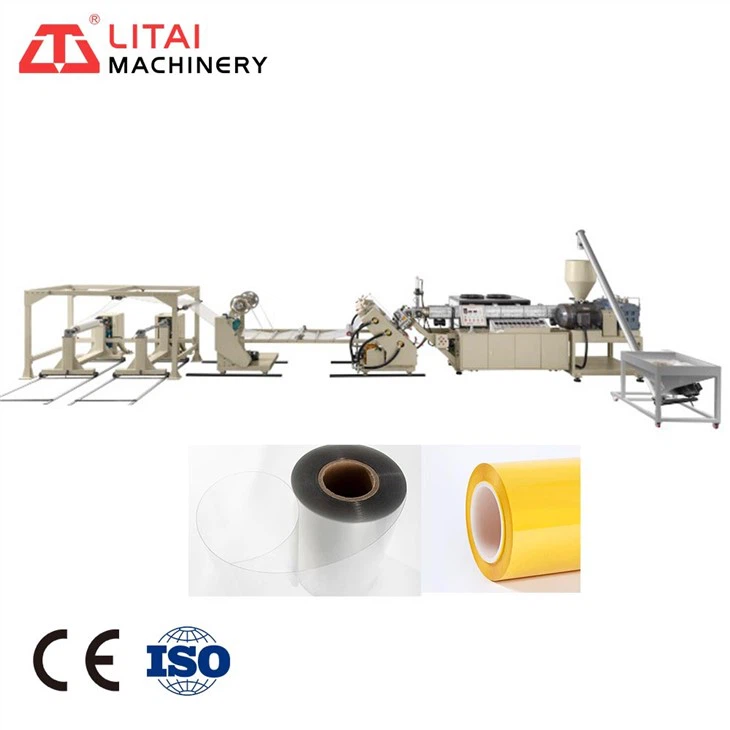

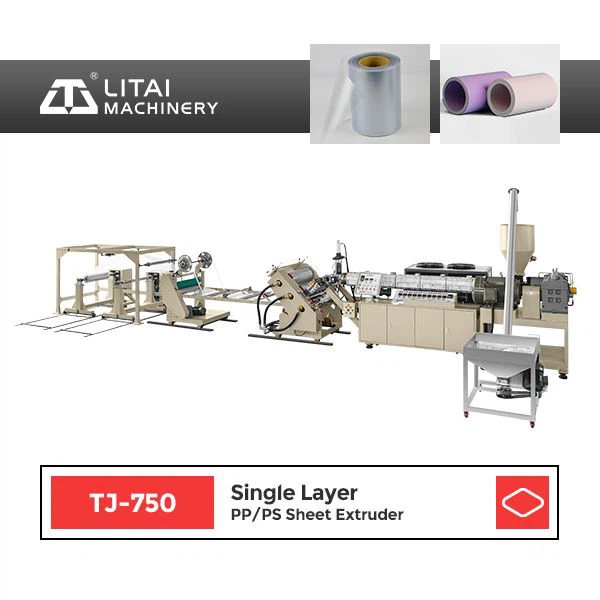

Single Layer PP/PS Sheet Extruder
Single layer Sheet Extruder is used for produce various plastic sheet of PP\PS etc, which can be widely used for produce plastic formed sheet,stationery sheet and corrosion resistance adhesive tape etc. Completely automatic machine, compact structure,fast productive speed. Different products can be produced with different molds. Environmental protection, high qualified products It can be used for producing all kinds of plastic products ,such as disposable lunch box,trays for liquid,vegetables,cookies etc. With large output, it is warmly welcomed by cup manufacturing industries. And it can automatically move out when the power is off.Thus, it is safe and won't do harm to the worker.
-

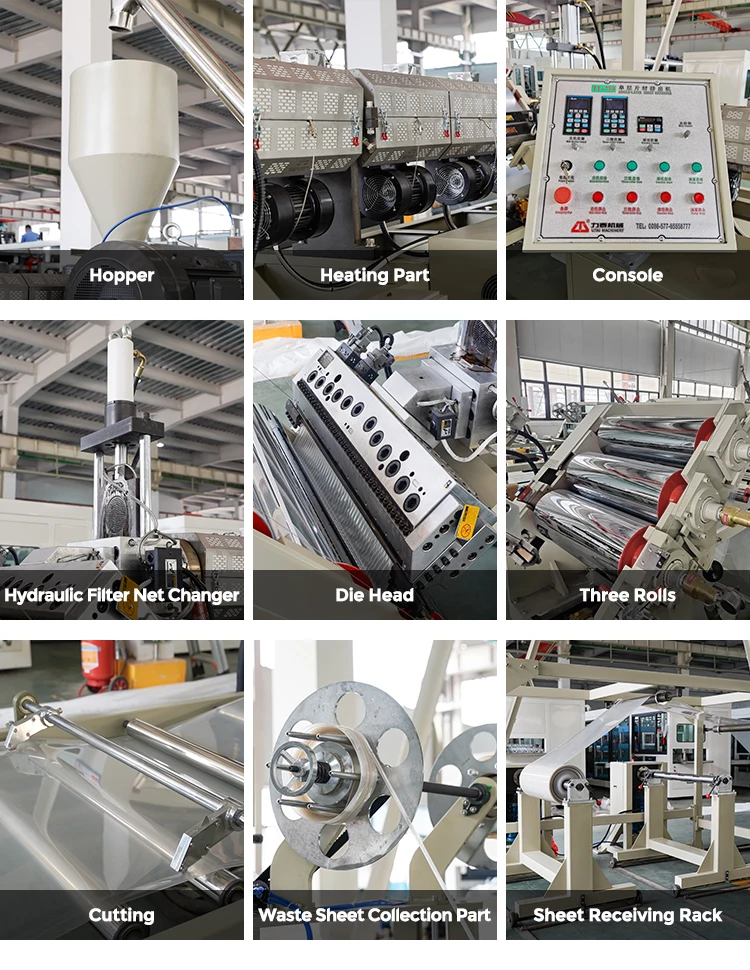

Single Layer PP/PS Sheet Extruder Products Description
-

Single Layer PP/PS Sheet Extruder of Technical Parameter:
| Model | TJ-750E | TJ-750D | TJS-750F | TJP-900E |
| Suitable Sheet | PP,PS | PET,PLA | ||
| Sheet Width (Max.) | 750mm | 900mm | ||
| Mould width | 950mm | 1050mm | ||
| Sheet Thickness | 0.3-2.0mm | 0.2-1.8mm | ||
| Compressed air source pressure | 0.6-0.8Mpa | |||
| Screw Rod Dia | 125mm | 110mm | 120mm | Double Φ75mm |
| Screw L/D Ratio | 35:1 | 33:1 | 35:1 | 40:1 |
| Max. Output | 400kg/hour | 240kg/hour | 400-500kg/hour | 400kg/hour |
| Rated Current | 500A | 340A | 740A | 560A |
| Rated Powe | 320kW | 160kW | 420kW | 360kW |
| Energy consumption | 220kW | 220kW | 280kW | 280kW |
| Main Motor Power | 160kw | 110kw | 132kw | 132kw |
| Power Supply | AC 380V,50Hz, Three-phase, Four-wire | |||
| Dimension | L15388*W3615*H2900mm | L14000*W2600*H1800mm | L17000*W3615*H2718.5mm | L21500*W5430*H4710mm |
| Weight | About 12T | About 8T | About 12T | About 15T |
