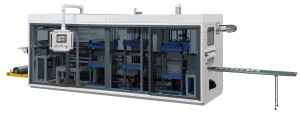

PP Cup Lid Forming Machine
Model: TQC-750S
Mould Size (Max.): 750 x 480mm
Forming Depth (Max.): 180mm
Sheet width (Max.): 770mm
Total Power: 215KW
Heating power: 180KW
Dimension: L7900 x W2300 x H3450mm
Suitable Sheet Material:PP / PET / PVC / PS / HIPS / GPPS / Biodegradable Materials
The PP Cup Lid Forming Machine suitable for forming PP, PS, HIPS, PVC, PET, and other plastic sheets, producing various cups, bowls, plates, lids, boxes and other products, such as milk cups, jelly cups, disposable beverage cups, instant noodle bowl.
The Principle Of Plastic Cup Forming:
Thermoplastic plastic sheets are heated and placed on the mold. A plunger stretches the sheet, while compressed air presses it against the mold cavity to form the product. After the cutting process, the finished product is automatically ejected.
Mold: The mold integrates functions such as pressing, forming, cutting, cooling, and product ejection into one unit.
Application of PP Cup Lid Forming Machine:
PP cup lid forming machine is applicable for producing PP cups, ice cream cups, yogurt cups, food containers, lids, trays and etc. Servo motor from YASKAWA, PLC and touch screen from Simens.
Parameter of PP Cup Lid Forming Machine
| Model | TQC-750S |
| Mould Size (Max.) | 750*480mm |
| Sheet width | 770mm(Max) |
| Max. Forming Depth | 180mm |
| Max. Forming Speed | 30times/min |
| Sheet Thickness | 0.3-1.8mm |
| Suitable Sheet Width | 770mm |
| Suitable Sheet | PP, PS, HIPS, PET, PVC, PLA etc. |
| Air Pressure | 0.6-0.8mpa |
| Air Consumption | 3.0m³/min |
| Water Consumption | 0.7m³/h |
| Rated Power | 215Kw |
| Heating Power | 180Kw |
| Power Supply | AC 380V,50Hz, Three-phase, Four-wire |
| Dimension | L7900*W2300*H3400mm |
| Weight | About 8.2T |
Machine detail
