Plastic Plate Making Machine

Plastic Plate Making Machine which is a combination of mechanical, electrical and pneumatic components, adopts the most advanced thermoforming technology. The whole system is controlled by micro plc and operated by the man-machine interface. It combines the feeding, heating, forming, punching, cutting and stacking into one process.

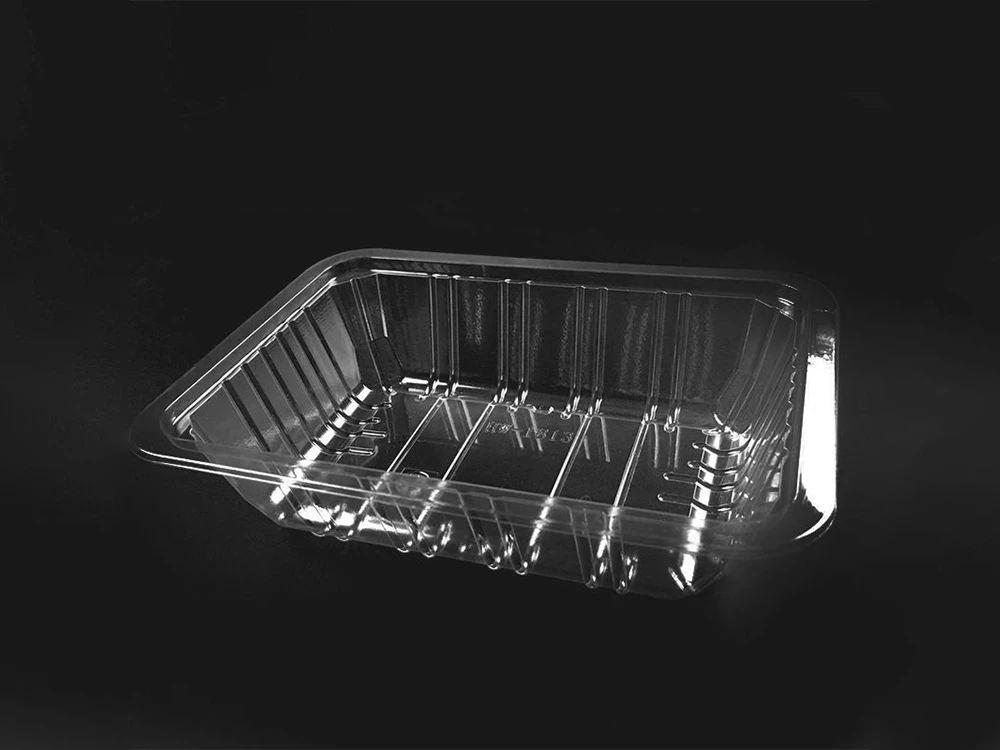

It is suitable for processing different materials, such as PP, PS, HIPS, PET, PVC, PLA etc. processing high transparency, high stretch, shallow stretch, round, square, upper and lower two-way stretch, flanged and other products, including trays, lids, fruit and vegetable boxes, flower pots, shells, seedling trays and plates, etc.

Parameters of Plastic Plate Making Machine:

Application of Plastic Plate Making Machine

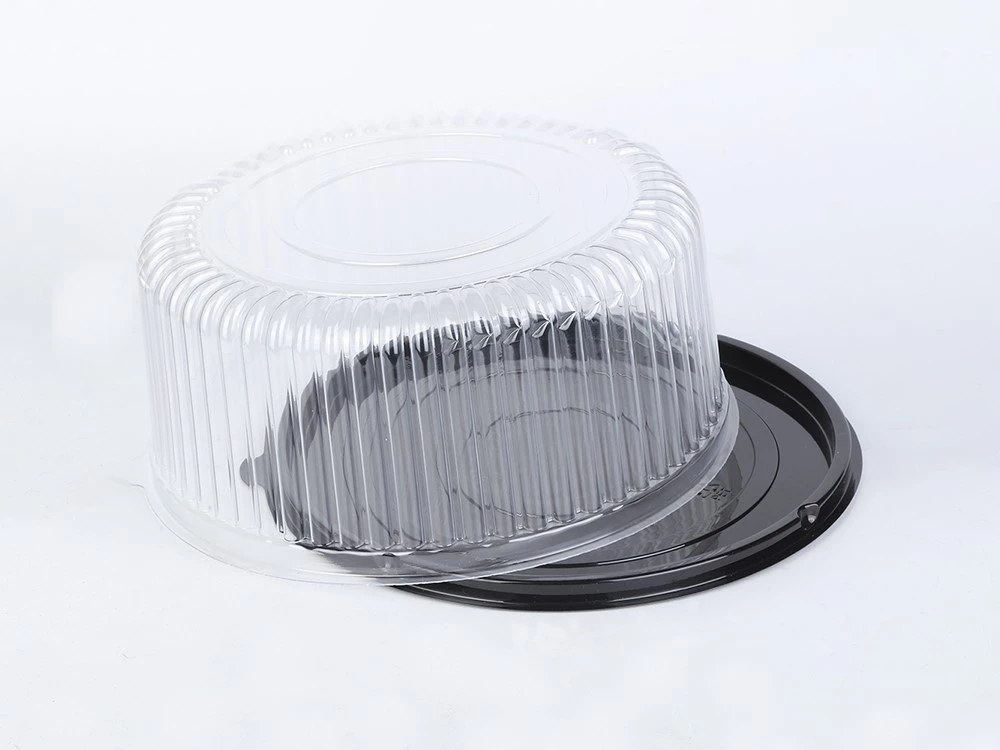

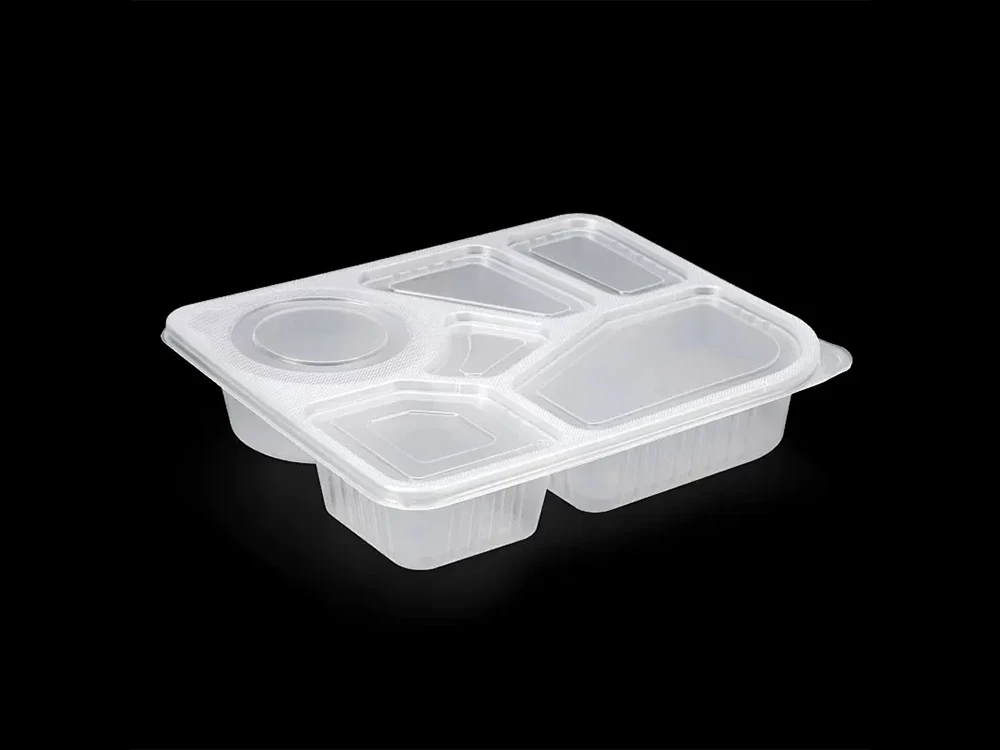

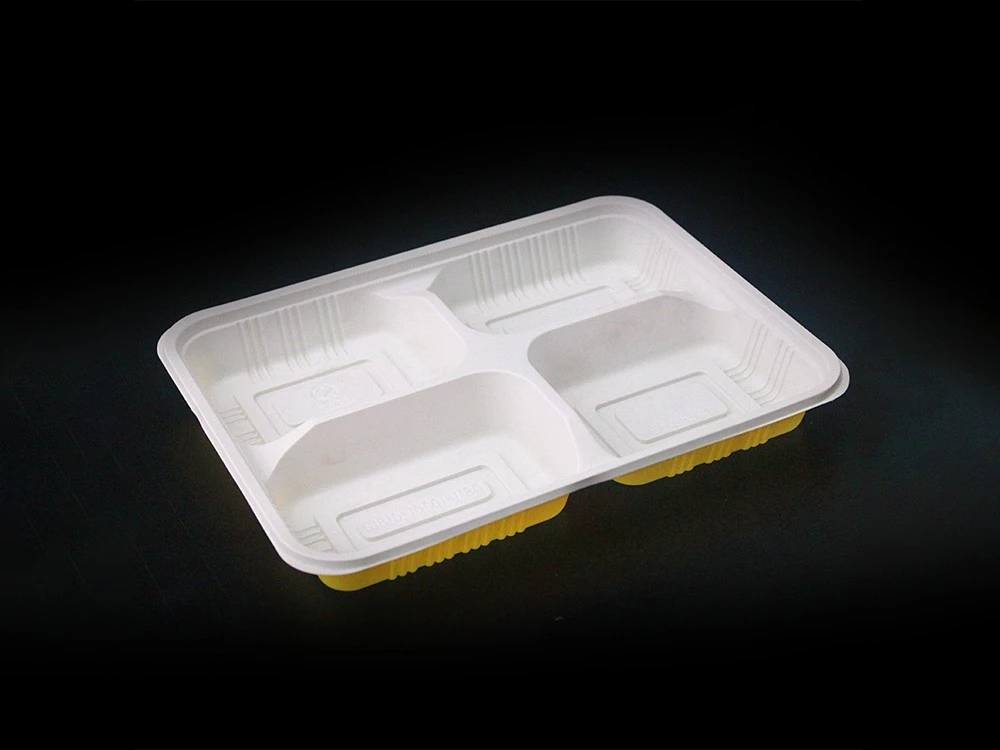

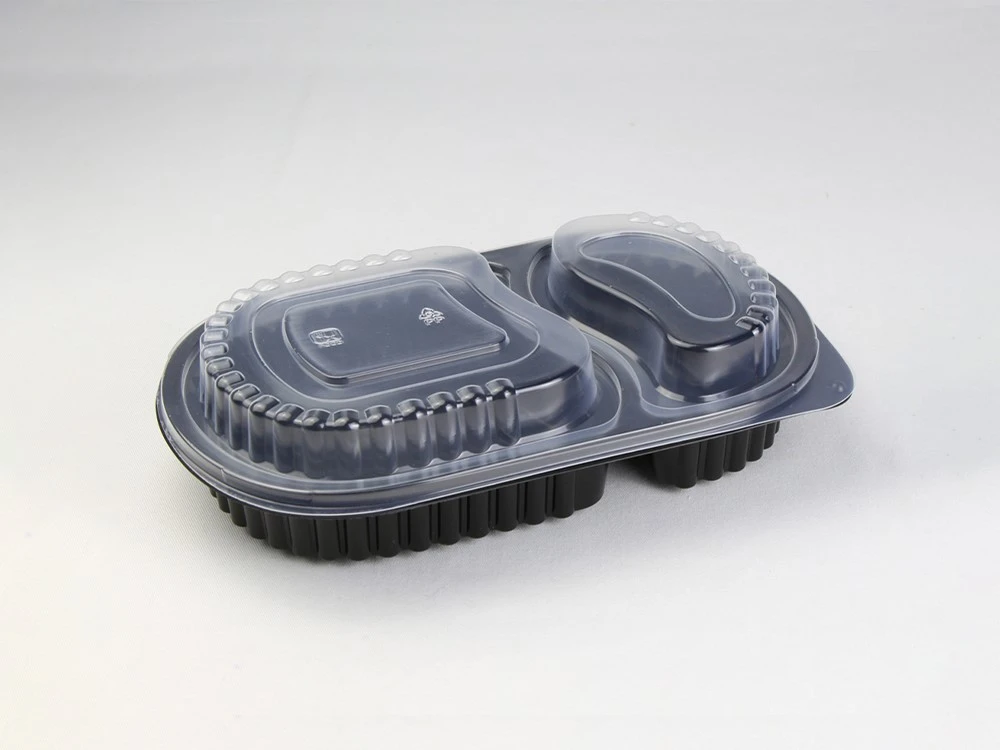

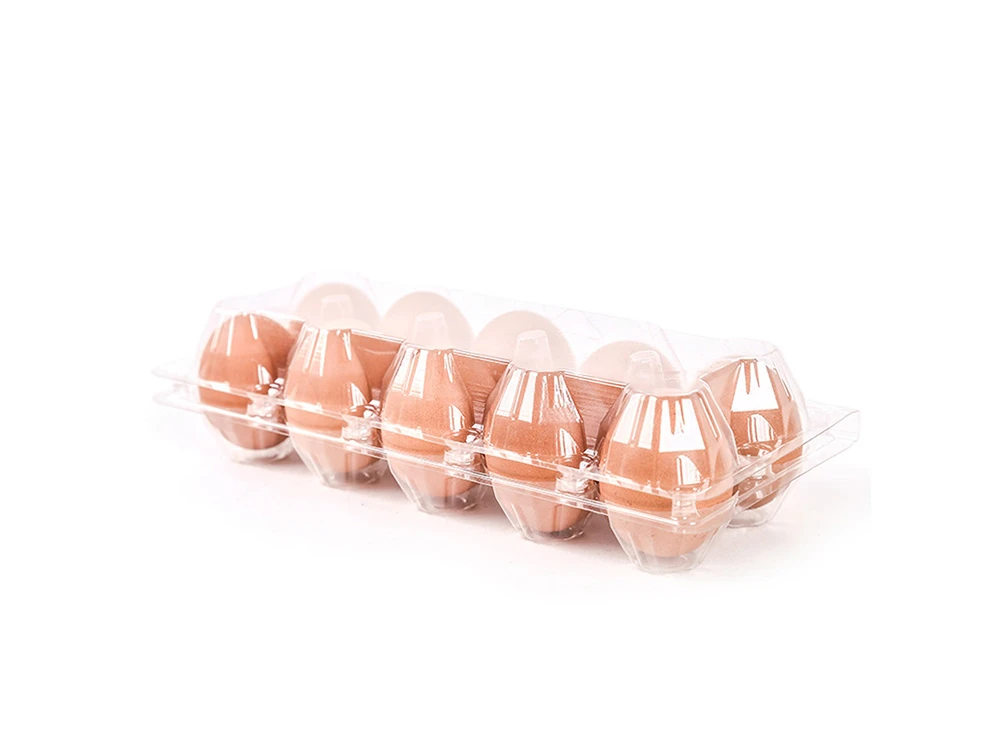

It is used to form plastic sheets such as PP PS HIPS PVC PET, etc. It can be widely used in the production of various plastic boxes, containers and other plastic products, such as ice cream cups, milk cups, chocolates, packaging boxes, candy boxes, fast food boxes, food boxes, etc.

Specification of Plastic Plate Making Machine

• Working stations adopts four pillars, which makes this machine more stable, precision.
• Touch screen and PLC and servo motor adopt Delta brand from Taiwan.
• Sheet feeding use servo motor, Yaskawa, Japan brand.
• The Guiding part, Driven by hydraulic system, is whole together part, more reliable and steady, long life time.
• Oil pump and oil pump motor ensure lower mould has enough movement speed and strong punching power
• Material holder combines with the machine, it can save workshop space, avoid electrostatic percipitation, easy to control.
• Mechanism movement part can be lubricated automatically at certain times, protecting machine.



Structure & Design

Explore the detailed structure and configuration to see how our machine ensure precision, stability, and efficiency

Feeding Device

Labor & Cost Savings
Improved Efficiency & Productivity
Able to work with double roll
Max.roll diameter: 1000mm



Heating Device

Energy Efficiency save 30%
Elstein ceramic heaters, individually adjustable(line by line)
Can control the temperature by PLC directly

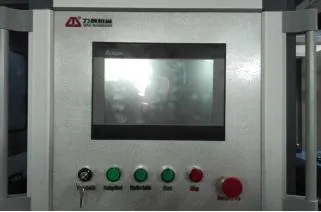

Operation Screen

Live Data Display – Shows temperature, pressure, and cycle status in real time.

mergency Stop & Alarms – Ensures quick response to operational hazards.

Multi-Language Support – Accommodates global operators.

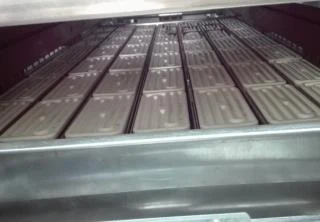

Forming Station

Max mould size:700*550mm
Max depth:120mm
Servo driven plug assist on top forming station
Stable square struction,provide stable forming

Cutting Station

Servo motor driven Movable cutters, to adjust the cutting by itself High-quality cutters, save spare parts costs Top nut locking structure, providing stronger force

Stacking Station

Different stacking schemes can be formulated according to the customer's requirements.

FAQ

1. Can this thermoforming machine handle both vacuum and pressure forming methods?

Yes, the thermoforming machines support both vacuum forming and pressure forming techniques, allowing flexible production depending on mold complexity.

2. What thermoplastic materials are compatible with these thermoforming machines?

These machines are compatible with a wide range of thermoplastics including PET, PVC, Polypropylene (PP), and Polystyrene (PS).

3. Are fully automatic configurations available for these thermoforming machines?

Yes, the product range includes manual, semi-automatic, and fully automatic thermoforming machines featuring automatic sheet feeding, cutting, stacking, and inline quality control.

4. What industries commonly use these thermoforming machines?

Industries such as food packaging, automotive manufacturing, medical devices, electronics, and consumer goods extensively utilize these thermoforming machines.

5. How does the machine ensure precision for complex mold shapes?

The machines use precise temperature control and pressure regulation, combined with high-quality molds to achieve detailed and consistent product shapes.
