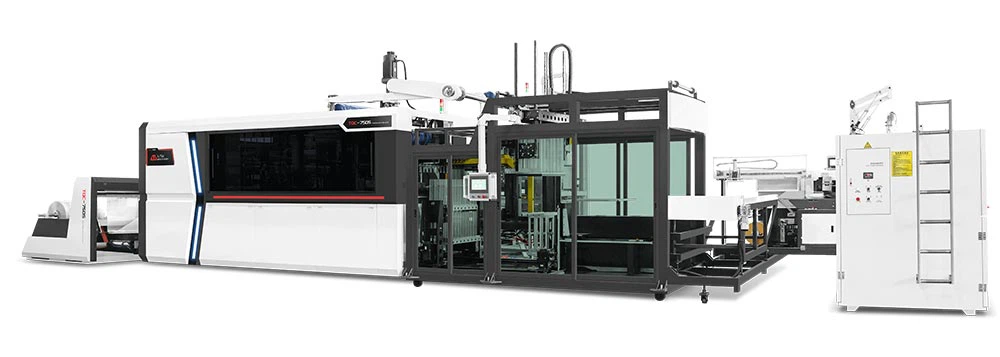

The biggest difference between our newly developed servo cup machine and the previous plastic thermoforming cup machine is that the forming speed increases and the width of the forming area increases from 480mm to 520mm.
| Technical specification | |
| Model | TQC750S |
| Max.Forming Area | 750×520mm |
| Max.Forming Depth | ≤180mm |
| Maximum mold opening and closing stroke | 260mm |
| Sheet Thickness | 0.3-1.8mm |
| Max. Forming Speed | ≤35times/min |
| Air Pressure | 0.6-0.8Mpa |
| Air Consumptin | 3.6m³/min |
| Water Consumptin | 0.7m³/h |
| Max.sheet Width | 760mm |
| Suitable Sheet Material | PP PS HIPS PET PVC etc |
| Dimension | L4910×W2305×H3190mm |
| Weight | About 5T |
| Heating rated power (three-phase) | 146KW |
| Drive the main motor (servo motor) | 15KW |
| Stretching Servo Main Motor | 7.5KW |
| Film feeding servo motor | 4.5KW |
| Power supply | AC380V/50Hz Three-phase and Four-wire |
Wide range of application in the field of packaging, food, electronics industry, such as plastic drinking cups, ice cream cups, Yogurt cups , food trays , bowls ,fast food containers,light industry,textiles,travel,toys and others etc.
FAQ
1. Q: Are you a factory or trading company?
A: We are a factory.We have been in making plastic thermoforming machine and plastic sheet extruder over 20 years.
2. Q: Could you send engineer go to our factory adjust and install machine ?
A: YES,we can send engineer go to your factory adjust and install machine .teach your worker how to operate machine.
3. Q: How long is the warranty period?
A: One year warranty period.We have professional after-sales department providing best service.
4. Q: Can we visit your factory watch machine running on live?
A: Of course.Welcome to visit our factory!（Click to view address）
5.Q.How can I get the samples?
A: We have many samples in stock that was made by the machine customers bought from our company, we can take the picture for you to choose suitable samples.
6. Q.Can you give me discount?
A:Yes, of course. If you contact me, you'll get more.
7. Q:How about you ensure the quality of snacks food serving tray thermoforming machine?
A: Our factory have advanced testing equipment, before the every product leave the factory, we will test. We can send samples to you , you can test the quality , and if you accept the sample quality we can offer : the follow-up order's quality will be the same as the sample.
