LITAI Machinery provides fully automatic plastic cup machines for producing disposable cups, beverage cups, jelly cups, yogurt cups, and plastic packaging containers.
Our machines support multiple materials including PP, PS, PET, HIPS, and PVC, allowing manufacturers to produce various plastic products with different sizes and designs. Equipped with an intelligent control system, automatic forming, cutting, and stacking functions, our machines deliver stable production performance and high efficiency.
As a professional plastic cup machine manufacturer in China, we provide customized thermoforming solutions according to your production capacity, product requirements, and factory needs.
Working Principle of Plastic Cup Machines
- Heating: The process begins by heating the plastic sheet to the required forming temperature. After heating, the sheet becomes soft and flexible, allowing it to be accurately shaped during the forming process.
- Cup Forming: After heating, the softened plastic sheet is formed into cup shapes through a hydraulic forming system. Stable forming pressure helps achieve consistent shapes, precise dimensions, and reliable product quality.
- Cutting and Conveying: After forming, the cups are separated through the cutting process and automatically conveyed to the stacking station. Automated conveying reduces manual operations and improves production efficiency.

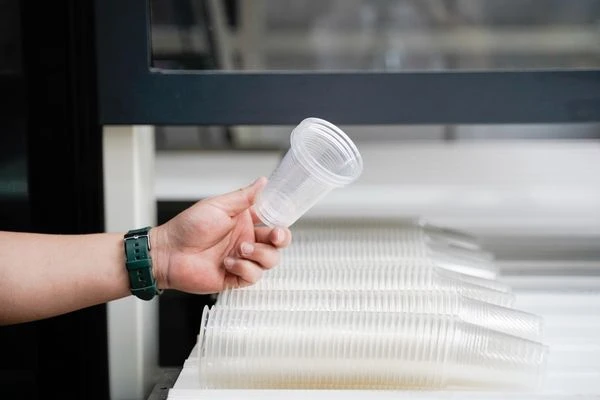

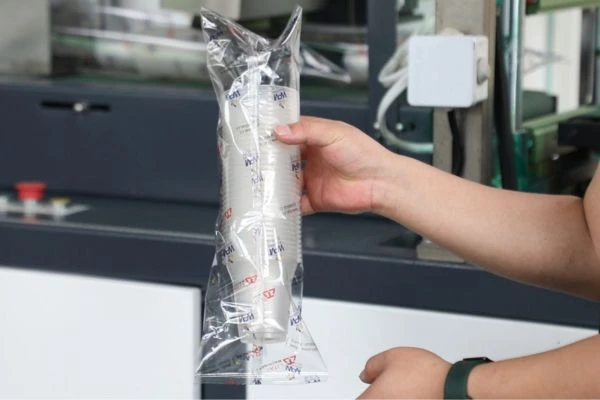

- Stacking and Collection: The finished cups are automatically stacked for convenient packaging and transportation. This continuous production process helps manufacturers maintain stable output during large-scale production.
Advantages of Plastic Cup Machines
1. High-Efficiency Automated Production
The machine delivers a production speed of up to 40 cycles per minute, enabling continuous plastic cup manufacturing with reduced manual intervention. This helps increase daily output, lower labor requirements, and improve overall production efficiency.
2. Stable Hydraulic Forming Performance
The hydraulic system provides consistent forming pressure during each production cycle, helping produce cups with uniform shapes, clear contours, and stable dimensions. Reliable pressure control also reduces product defects and improves batch-to-batch consistency.
3. Large and Flexible Forming Capacity
With a forming area ranging from 650*300mm to 750*480 mm and a maximum forming height of 180 mm, the machine can accommodate multi-cavity molds and produce a wide variety of products, including cups, bowls, lids, and plastic containers.
4. Uniform Heating and Reduced Material Waste
With heating power of up to 135 kW, the machine provides fast and uniform heating of plastic sheets. Stable temperature distribution helps prevent incomplete forming, uneven stretching, and excessive material waste, improving product quality and material utilization.
5. Heavy-Duty Design for Long-Term Operation
The robust machine structure ensures excellent stability during high-speed forming and cutting operations. Reduced vibration helps maintain processing accuracy, minimize mechanical wear, and deliver reliable performance during continuous long-term production.
Key Components of Plastic Cup Machines
Plastic thermoforming machines consist of many important components. These components work together to transform flat plastic sheets into finished cups. Each part plays an important role in producing high-quality cups. The main components include the sheet feeding system, heating system, and mold design.
Sheet Feeding System
The sheet feeding system moves plastic sheets into the machine. It ensures that each sheet enters the heating area evenly and consistently. This allows the machine to heat the material properly. Operators can adjust the system according to different sheet thicknesses and materials.
Functions of the sheet feeding system:
- Moves plastic sheets into the heating area.
- Maintains stable and uniform feeding.
- Adjusts according to different sheet thicknesses and materials.
Heating System
The heating system is one of the most important parts of the machine. It heats the plastic sheet until it becomes soft and flexible. There are different types of heating systems:
- Electric resistance heaters generate heat through electricity.
- Infrared heaters use light energy to heat sheets quickly and improve energy efficiency.
- Hot air heaters use circulating air to heat large areas evenly.
Uniform heating of the sheet is essential. It helps the machine stretch the plastic evenly during forming. Proper heating prevents problems such as thin areas, bubbles, or cups that do not fit the mold correctly. Maintaining the right temperature ensures that cups keep their correct size and shape.
Mold Design and Function
The mold shapes the heated plastic into cups. Mold design is a critical part of the machine because mold quality directly affects the cup's shape, strength, and surface finish.
Steel molds offer a long service life and produce smooth cup surfaces.
Aluminum molds provide faster cooling performance but wear out more quickly.
Request a Quote for Plastic Cup Thermoforming Machine
Please provide details about your required cup size, plastic material, mold configuration, and production capacity. Our team will recommend the most suitable machine model based on your production requirements and provide detailed specifications, pricing information, and a customized quotation.
Contact us today to discuss your plastic cup production needs and find the right thermoforming solution for your business.
