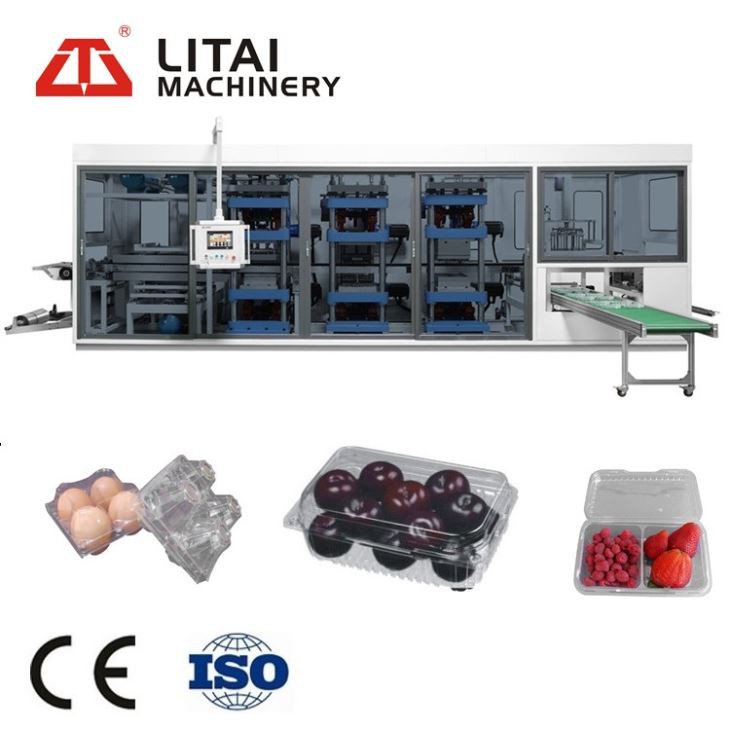

Plastic Food Container Thermoforming Machine For Food Package Container

TTF-520AF positive and negative pressure thermoforming machine(plastic food container thermoforming machine for food package container) mainly produces all kinds of high transparent, high tensile flanging and flat products.

For example, food boxes, bowls, saucers, lids, trays, daily necessities, medicines, alcohol, and electronic blister trays.

Technical Parameters of Plastic Food Container Thermoforming Machine :

Finished Samples:

It is used to form plastic sheets such as PP PS HIPS PVC PET, etc. It can be widely used in the production of various plastic boxes, containers and other plastic products, such as ice cream cups, milk cups, chocolates, packaging boxes, candy boxes, fast food boxes, food boxes, etc.

Features of Plastic Food Container Thermoforming Machine :

1. The combination of positive and negative pressure, the thickness of the same material is better than the thickness of the negative pressure plastic, the weight is more stable, and the thickness is even.

2. The positive and negative pressure functions coexist, and the product forming size is accurate and stable.

3. Feeding, heating, forming, punching, stacking, counting and conveying are completed simultaneously. Only one person needs to be packaged into the box, and the product is safe and hygienic without secondary pollution.

4. Forming, cutting, stacking and feeding are all servo-controlled, accurate and error-free.

5. It adopts industrial control PLC and microcomputer man-machine interface control, and it is easy to operate accurately.

6, coated with silicone oil, multiple vacuum, vibration demoulding, up and down mold, up and down stretching, product effect is better.

7. At the same time, it can also customize the molding, punching side holes, punching holes, cutting, stacking five stations; customers can choose the function of the equipment according to their own product requirements.



Structure & Design

Explore the detailed structure and configuration to see how our machine ensure precision, stability, and efficiency.

Heating Device

Energy Efficiency save 30%
Elstein ceramic heaters, individually adjustable(line by line)
Can control the temperature by PLC directly

Operation Screen

Live Data Display – Real-time temperature, pressure, and cycle status.
Emergency Stop & Alarms – Quick response to hazards.
Multi-Language Support – For global operators.

Forming Station

Max mould size:520*430mm
Max depth:110mm
Servo driven plug assist on top forming station
Stable square struction,provide stable forming

Punching Station

Servo motor driven, punching holes more accurate and complete Long-life, durable needle

Cutting Station

Servo motor driven Movable cutters, to adjust the cutting by itself High-quality cutters, save spare parts costs Top nut locking structure, providing stronger force

Stacking Station

Different stacking schemes can be formulated according to the customer's requirements.
