Multi-Station Plastic Thermoforming Machines: Your Complete 2025 Guide
Introduction to Thermoforming Technology
Multi-Station Plastic Thermoforming Machines
Modern thermoforming has revolutionized plastic manufacturing, with multi-station machines leading this transformation. These advanced systems combine efficiency, precision, and versatility - handling everything from food packaging to Agriculture, electronic packaging, medical packaging with unmatched productivity.
Key Features & Benefits
LITAI MACHINERY CO., LTD.
✔ High-Capacity Production
Simultaneous processing at multiple stations increases output by 300-500% compared to single-station units
✔ Energy Efficiency
The intelligent temperature control system reduces heat loss by 41%. It uses Elstein heating tiles imported from Germany. The 4*11+6*13 arrangement of heating tiles ensures uniform heating.
✔ Material Versatility
Processes PET, PP, PS, PVC, and biodegradable plastics with thiknesses from 0.2mm to 2mmc

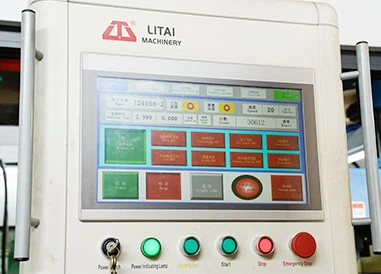

✔ Smart Automation
Equipped with production safety alarm system and production maintainability prediction system
Technical Specifications
Parameter Standard Range Stations 4 Cycle Time 2-5 seconds Max Forming Area 820×650mm Heating Power 150-175kW Air Pressure 0.6-0.8 mpa
| Model | TTF-820AF | TTF-520AF |
| Mould Size (Max.) | 820*650mm | 520*400mm |
| Forming Depth (Max.) | 140mm | 110mm |
| Sheet thickness | 0.2-1.6mm | |
| Forming Speed (Max.) | 30times/min | |
| Air pressure | 0.6-0.8mpa | |
| Air consumption | 4.2m³/min | 3.0 m³/min |
| Water consumption | 1.0m³/h | 0.7m³/h |
| Sheet width (Max.) | 850mm | 550mm |
| Suitable Sheet | PP, PS, HIPS, PET, PVC, PLA etc. | |
| Power supply | AC 380V, 50Hz, Three-phase, Four-wire | |
| Rated power | 246Kw | 136Kw |
| Heating power | 171Kw | 75Kw |
| Procedure | Forming-punching-cutting-stacking | |
| Dimension | L13000*W4300*H2800mm | L10800*W4650*H2670mm |
| Weight | About 21.0T | About 11.0T |
Industry Applications
Medical
Sterile packaging for syringes
and surgical kits
Food
Clamshell containers, blister
packaging
Electronics
Component trays and protective
casings
Agriculture
Production of seedling trays
and flower pots
Choosing Your Machine
Consider these 5 factors
Product size
Consider the size of your product to adapt to the size of our equipment layout to minimize waste.
Production volume requirements
How much production do you need? We can customize the mold layout quantity.
Material compatibility
What materials do you need to use for production? The materials will affect the production speed.
Tooling changeover frequency
Do you need automated stacking or reduced labor costs?
Available factory space
Is the space of your factory large enough to accommodate our equipment?
How much do you think you will invest in this project?
Maintenance Tips
The equipment also needs your attention and maintenance.
Daily
Clean forming stations and lubricate moving parts.
Weekly
Inspect heating elements and vacuum systems.
Monthly
Calibrate sensors and check electrical connections.
Future Trends
The industry is moving toward: • AI-powered quality control systems • Hybrid machines combining thermoforming and injection molding • Sustainable models using 100% recycled materials
