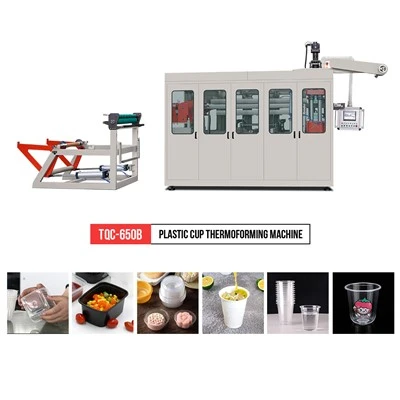

Disposable Drink Cup Making Machine
Model: TQC-650B
Mould Size (Max.): 650mm x 300 mm
Forming Depth (Max.): 125mm/180mm
Sheet width (Max.): 660mm
Main Motor Power: 98Kw
Heating power: 78KW
Dimension: L7000 x W2000 x H3100mm
Suitable Sheet Material:PP / PET / PVC / PS / HIPS / GPPS / Biodegradable Materials
TQC series plastic disposable drink cup making machine adopts servo motor for sheet feeding and streching, PLC for programe, touch screen for operation, stable, low noise and high efficiency. Suitable for producing plastic cups, fruit containers, bowls, trays, fast food boxes and etc.
But only one plastic disposable drink cup making machine can not work by itself,it needs air tank to store enough air pressure, chiller to cool water for forming,air compressor to provide enough air for forming.
The TQC-650B is a versatile Plastic Thermoforming Machine for PP, PS, HIPS, PET, PVC, PLA etc. Fully automatic PLC control for making cups, bowls, and lids. Speed: 35 cycles/min.
Disposable Drink Cup Making Machine-Technical parameter
| Model | TQC-650B |
| Mould Size (Max.) | 650*300mm |
| Sheet width | 660mm(Max) |
| Max. Forming Depth | 125-180mm(custom height) |
| Max. Forming Speed | 30times/min |
| Sheet Thickness | 0.3-1.8mm |
| Suitable Sheet Width | 660mm |
| Suitable Sheet | PP, PS, HIPS, PET, PVC, PLA etc. |
| Air Pressure | 0.6-0.8mpa |
| Air Consumption | 2.0m³/min |
| Water Consumption | 0.5m³/h |
| Rated Power | 98Kw |
| Heating Power | 78Kw |
| Power Supply | AC 380V,50Hz, Three-phase, Four-wire |
| Dimension | L7000*W2000*H3100mm |
| Weight | About 6T |
Disposable cup automatic counting packaging machine
We can provided following service:
1. Value clients, guarantee equipment quality and answer clients' questions anytime and anywhere.
2. Engineers go to clients' factory in time for installation , training and trial production .
3. More spare parts are given to clients for free to ensure the factory working without suddenly stop.
4.13 months free warranty, lifetime technical service support.
