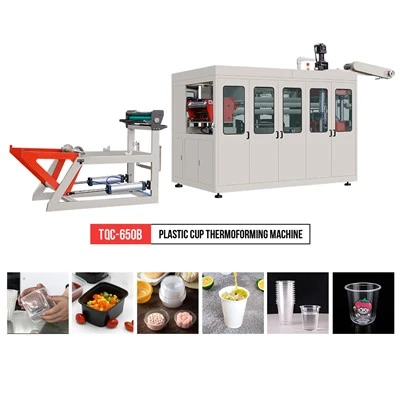

Pvc Cup Thermoforming Machine
Model: TQC-650B
Mould Size (Max.): 650mm x 300 mm
Forming Depth (Max.): 125mm/180mm
Sheet width (Max.): 660mm
Main Motor Power: 98Kw
Heating power: 78KW
Dimension: L7000 x W2000 x H3100mm
Suitable Sheet Material:PP / PET / PVC / PS / HIPS / GPPS / Biodegradable Materials
Equipment Details:
1. PLC Control: Siemens PLC for accurate performance and recipe storage.
2. Mold Guide Columns: Stable four-column design (40R steel, hard chrome plated) for durability and high accuracy in mold operation.
3. Temperature Control: PID regulation with Taiwan Yangming modules; temperature deviation within ±1 degree across 20 channels.
4. Sheet Feeding Chain: Double-row roller chain with teeth, supported by quenched 40Cr guide rails for enhanced durability.
5. Hydraulic System: Joint-venture oil pump with imported electromagnetic valves from Taiwan.
6. Heater: Tianbao curved electric heating tiles for high efficiency and safety.
7. Servo Stretching: Huichuan servo motors control mold speed for uniform strength and consistent bottom thickness, optimizing material usage.
8. Accessories: Air circuit control with AIRTAC cylinders, utilizing reliable Japanese and Taiwanese components for longevity.
Sample Pictures:
Technical Parameter of Pvc Cup Thermoforming Machine:
| Model | TQC-650B |
| Mould Size (Max.) | 650*300mm |
| Sheet width | 660mm(Max) |
| Max. Forming Depth | 125-180mm(custom height) |
| Max. Forming Speed | 30times/min |
| Sheet Thickness | 0.3-1.8mm |
| Suitable Sheet Width | 660mm |
| Suitable Sheet | PP, PS, HIPS, PET, PVC, PLA etc. |
| Air Pressure | 0.6-0.8mpa |
| Air Consumption | 2.0m³/min |
| Water Consumption | 0.5m³/h |
| Rated Power | 98Kw |
| Heating Power | 78Kw |
| Power Supply | AC 380V,50Hz, Three-phase, Four-wire |
| Dimension | L7000*W2000*H3100mm |
| Weight | About 6T |
Disposable plastic tea cups,coffee cups,ice cream cups,containers, lids, plates, bowls and etc.
2.What size of the cup/bowl you can make?
The max forming area of PVC cup thermoforming machine is 650*320mm.
3.Are you a manufacturer?
Yes,We have been in making cup thermoforming machine about 20years.
4.What about the payment term ?
Mostly 30%T/T in advance,the rest need paid before shipping. We need to discuss if you want other payment term.
5.What information should I let you know if I want to get a quotation?
Detailed size (top diameter & height), and sheet thickness.
