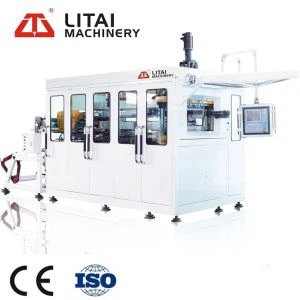

Thermocol Cup Making Machine
The TQC-750S is engineered for mass production of:
Beverage Cups: Water cups, Coffee cups, Bubble tea cups (PP/PET).
Dairy Packaging: Yogurt cups, Ice cream cups, Jelly cups.
Eco-Friendly Packaging: PLA biodegradable cups and bowls.
Invest in High Speed: Ready to upgrade your output to 42 cycles/minute?
Plastic thermoforming machine(thermocol cup making machine) adopts Japan Yaskawa servo motor for sheet feeding and stretching, Germany Siemens PLC for programme, touch screen for operation,suitable for producing disposable products like plastic bowls,cold drinking cups, yogurt cups, trays, plates, covers, lids, containers, etc.
Our main products range include Plastic Thermoforming Machine, thermoforming mould, machine spare parts and auxiliary machine. Also we are providing one-stop custom thermoforming services as well. It combines the material feeding,heating,drawing,forming,cutting and transporting into one process. Temperature control modules to control each temperature area. Machine production process started from sheet feeding, heating, stretching, forming and in-mould cutting in one stroke.Machine frame adopts square steel, more stable and serviceable.
Technical Parameters of Thermocol Cup Making Machine:
| Model | TQC-750S |
| Mould Size (Max.) | 750*480mm |
| Max. Forming Depth | 180mm |
| Max. Forming Speed | 30times/min |
| Sheet Thickness | 0.3-1.8mm |
| Suitable Sheet Width | 770mm |
| Suitable Sheet | PP, PS, HIPS, PET, PVC, PLA etc. |
| Air Pressure | 0.6-0.8mpa |
| Air Consumption | 3.0m³/min |
| Water Consumption | 0.7m³/h |
| Rated Power | 207Kw |
| Heating Power | 180Kw |
| Power Supply | AC 380V,50Hz, Three-phase, Four-wire |
| Dimension | L7900*W2300*H3400mm |
| Weight | About 8.2T |
Samples:
FAQ
1. Can this machine produce Biodegradable (PLA) cups?
Yes, absolutely. PLA material is sensitive to temperature. The TQC-750S features German Heaters with Segment Control, allowing for precise temperature management to form PLA sheets perfectly without melting or deforming them.
2. What is the actual production capacity?
The machine runs at a maximum speed of 42 cycles per minute. Your total output depends on the mold layout (cavities). For example, if you use a 32-cavity mold for small water cups, the output would be 32 x 42 = 1,344 cups per minute.
3. How does the control system work?
The machine uses a Micro PLC system combined with a Man-Machine Interface (touchscreen). This allows the entire operation-from material feeding to cutting-to be automated and easily monitored by a single operator.
