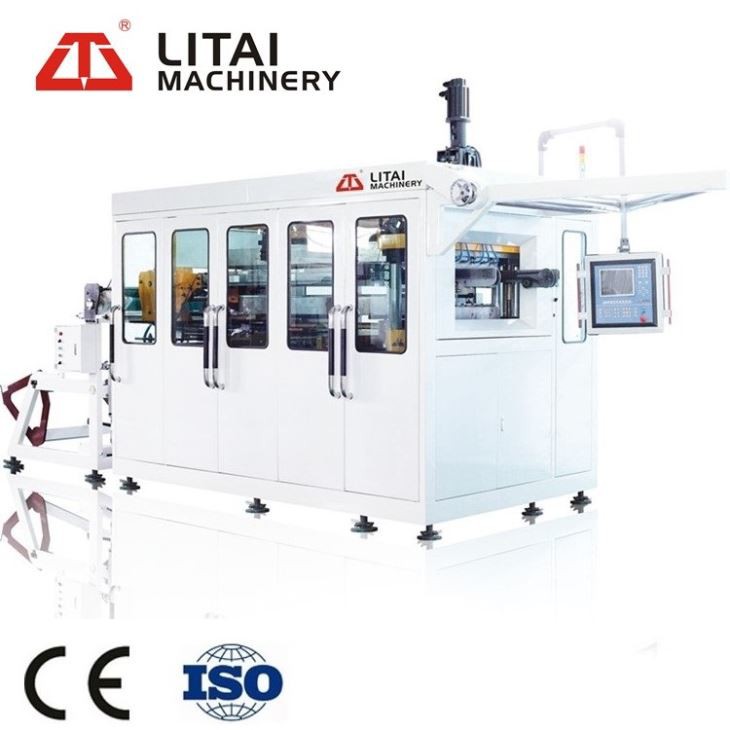

Automatic Disposable Plastic Cup Forming Machine
Maximum forming layout: 750 * 480MM, can accommodate thermoformed products with various diameters and more cavities
Production speed: 15-35 molds/mins, significantly improving production efficiency
Material compatibility: PP, PS, HIPS, PET, PVC, PLA etc.
LITAI offers a range of Automatic Disposable Plastic Cup Forming Machine designed for high-speed production of disposable cups using materials such as PP, PS, HIPS, PET, PVC, PLA etc. These machines utilize thermoforming technology, combining heating, forming, cutting, and stacking into a seamless process.
They are ideal for producing cold drink cups, ice cream cups, yogurt containers, deli cups, and even custom packaging lids, meeting the needs of both large-scale factories and OEM/ODM lines.
Automatic Disposable Plastic Cup Forming Machine----Parameters
| Model | TQC-750 |
| Mould Size (Max.) | 750*480mm |
| Max. Forming Depth | 125-180mm(custom height) |
| Max. Forming Speed | 30times/min |
| Sheet Thickness | 0.3-1.8mm |
| Suitable Sheet Width | 770mm |
| Suitable Sheet | PP, PS, HIPS, PET, PVC, PLA etc. |
| Air Pressure | 0.6-0.8mpa |
| Air Consumption | 3.0m³/min |
| Water Consumption | 0.7m³/h |
| Rated Power | 173Kw |
| Heating Power | 146Kw |
| Power Supply | AC 380V,50Hz, Three-phase, Four-wire |
| Dimension | L8500*W2300*H3300mm |
| Weight | About 8T |
Automatic Disposable Plastic Cup Forming Machine------Description
1. The mold is fixed by four pillars. - More stable, more accurate, lower noise and faster.
2. Touch screen and PLC adopt Siemens, German technology.
3. The Sheet supply uses a servo motor.
4. Full servo drive. No noise, no vibration, good shape and fast speed.
5.Labor savings, only 1-2 workers package

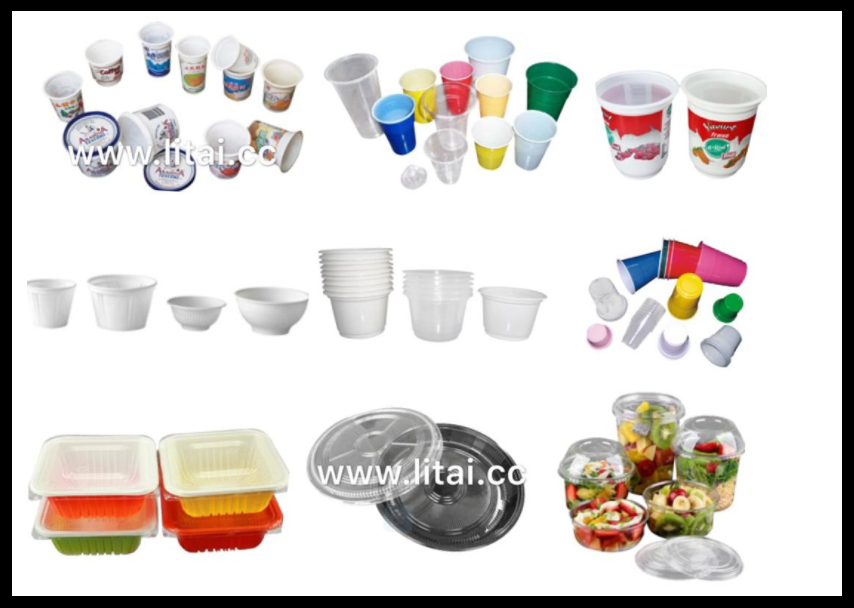

Automatic Disposable Plastic Cup Forming Machine------Samples
We can solve the problem for you is :
1.Our Professional engineer can help you go to your country. And install the machine.
2.Our salesman will be 24 hours online for you to solve equipment problems.
3.Our machine is hight quality.
