PVC Tray Forming Machine

Model: TTF-520A
Station：Three station
Max.Forming Area: 520*400mm
Max.Forming Height: 110mm
Sheet thickness：0.2-2mm
Forming Speed (Max.): 30times/min
Power supply: AC 380V, 50Hz, Three-phase, Four-wire
Application: trays, containers, boxes, lids, etc.
Core Components: PLC, Engine, Bearing, Gearbox, Motor, Gear, Pump
Suitable Material: PP, PS, HIPS, PET, PVC, PLA etc.

Send Inquiry

Product Introduction

PVC Tray Forming Machine uses internationally advanced plastic sheet forming technology. It is a plastic sheet forming equipment with mechanical, pneumatic and electrical integrated design. It can automatically complete all actions such as loading, feeding, heating, forming, punching, cutting, stacking, finished product transportation, and edge material winding.
Wide material compatibility: Suitable for PP, PE, PVC, PET and other thermoplastic materials, processing sheet thickness from 0.15 mm films to 2 mm sheets. processing high transparency, high stretch, shallow stretch, round, square, upper and lower two-way stretch, flanged and other products, including trays, lids, fruit and vegetable boxes, flower pots, shells, seedling trays and plates, etc.

Pvc Tray Forming Machine

PVC Tray Forming Machine of Parameter:

Model	TTF-520A
Station	Three station
Mould Size (Max.)	520*400mm
Forming Depth (Max.)	110mm
Sheet thickness	0.2-2mm
Forming Speed (Max.)	40times/min
Air pressure	0.6-0.8mpa
Air consumption	3.0 m³/min
Water consumption	0.7m³/h
Sheet width (Max.)	550mm
Suitable Sheet	PP, PS, HIPS, PET, PVC, PLA etc.
Power supply	AC 380V, 50Hz, Three-phase, Four-wire
Rated power	120Kw
Heating power	75Kw
Procedure	Forming-cutting-stacking
Dimension	L9300W4200H2800mm
Weight	About 9.0T

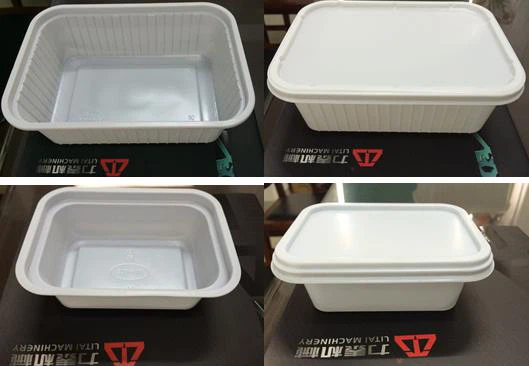

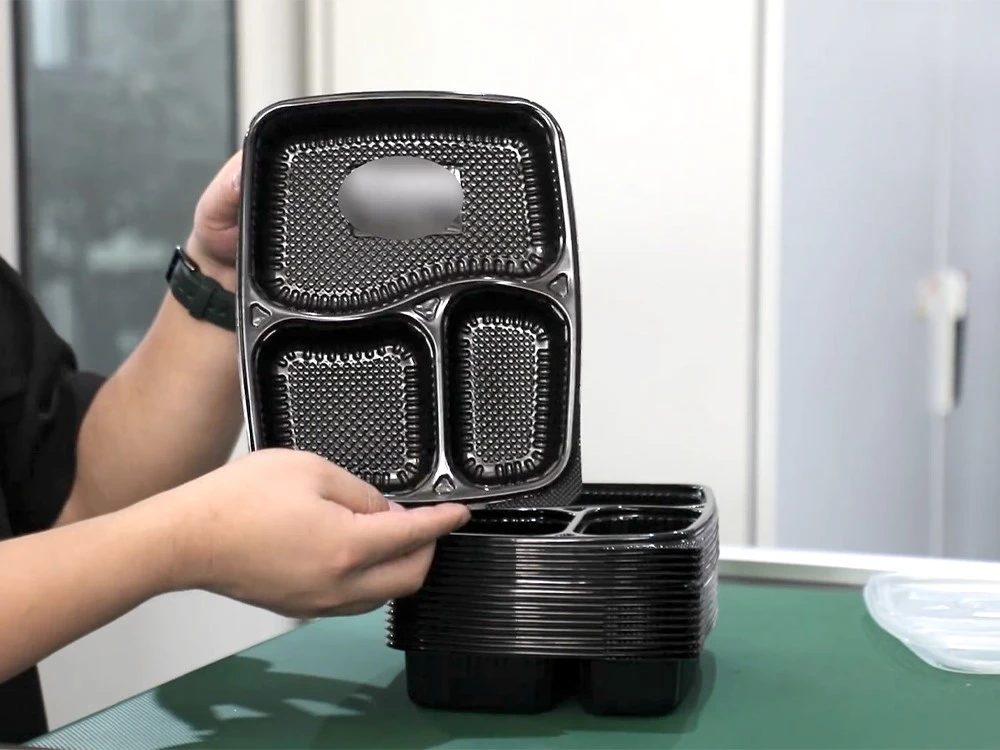

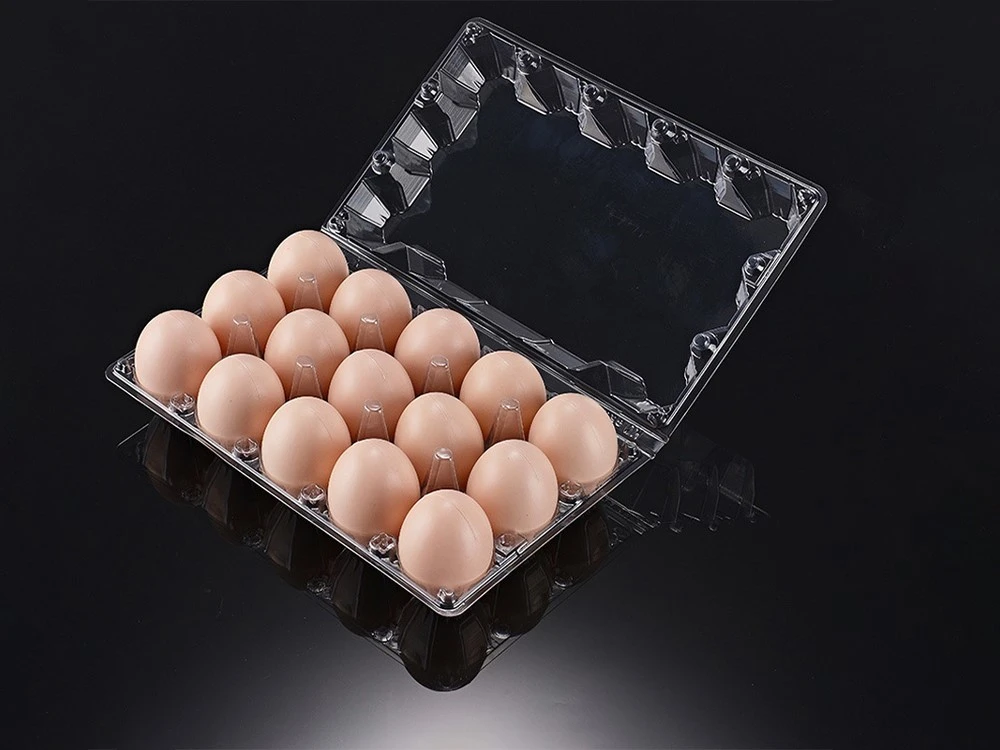

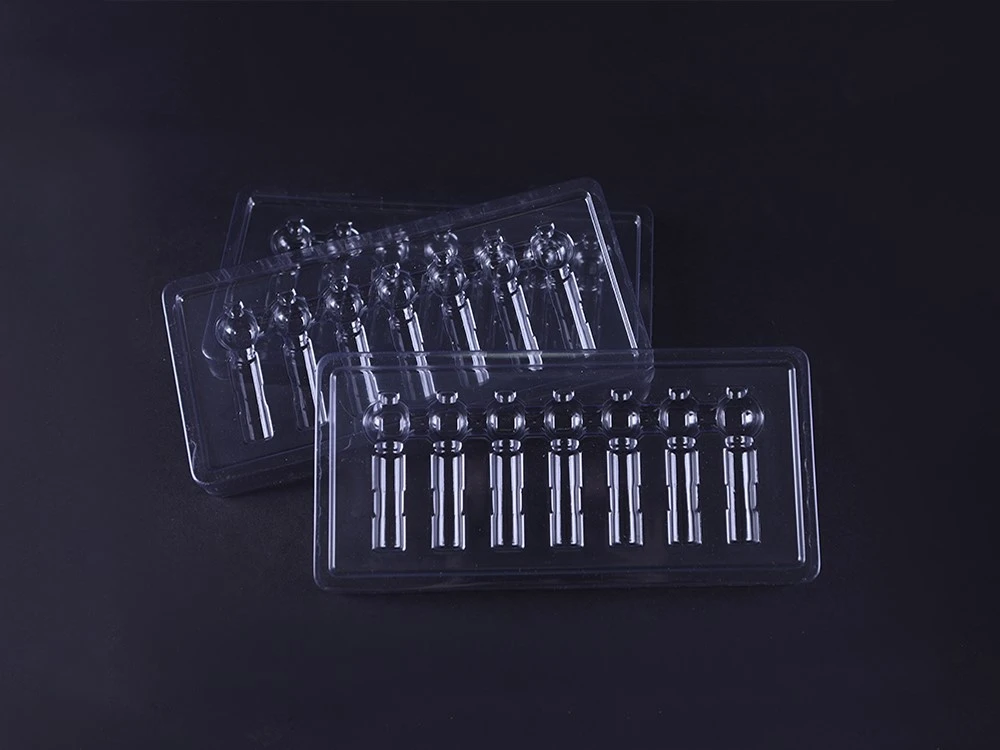

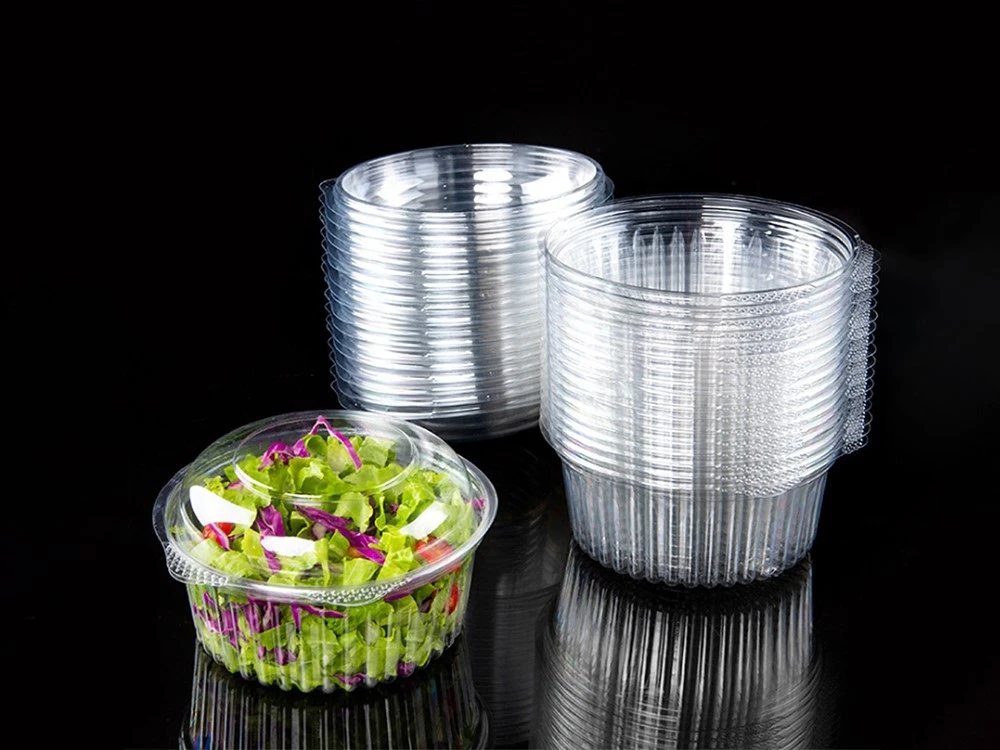

Finished Product Display

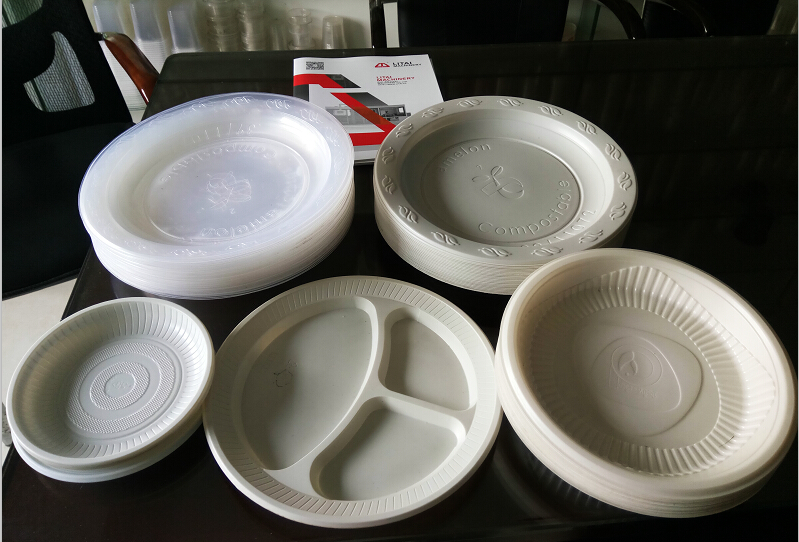

A PVC Tray Forming Machine is widely used in the processing of PP, PE, PVC, PS, PET, and other plastic sheets. It can produce various food packaging products such as plastic cups, plastic boxes, plastic plates, plastic trays, plastic bowls, and so on.

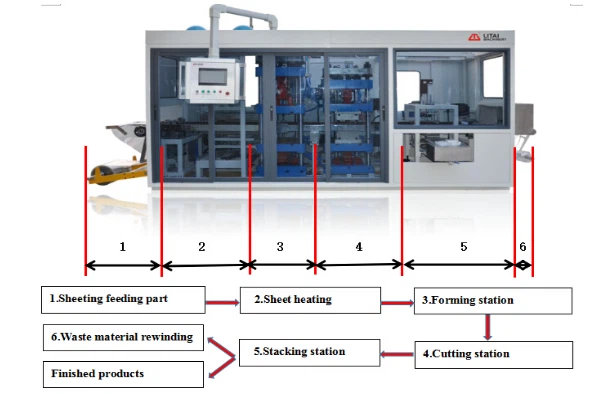

Main Machine Components

Pvc Tray Forming Machine

PVC Tray Forming Machine Main Features:

1- Positive forming and Negative Forming

2- PLC and Touch Screen

3- Fully automatic sheet feeding-forming-cutting inline-stacking inline.

4-The up mold plate of forming station, cutting station are controlled by servo motor.

5-The main machine components adopt famous branded parts, such as,Elstein from Germany, MAC from USA, DELTA from Taiwan, Turck from Germany. These high quality machines parts ensures machine quality and long life working.

6-This Automatic Air Pressure Thermoforming machine is widely used for making PP/PS/PET/HIPS/EPS/PVC food packs, such as, folding boxes, lids, plates, containers, trays and etc.

PVC Tray Forming Machine detail

Heating Device

Energy Efficiency save 30%
Elstein ceramic heaters, individually adjustable(line by line)
Can control the temperature by PLC directly

Operation Screen

Live Data Display – Shows temperature, pressure, and cycle status in real time.

mergency Stop & Alarms – Ensures quick response to operational hazards.

Multi-Language Support – Accommodates global operators.

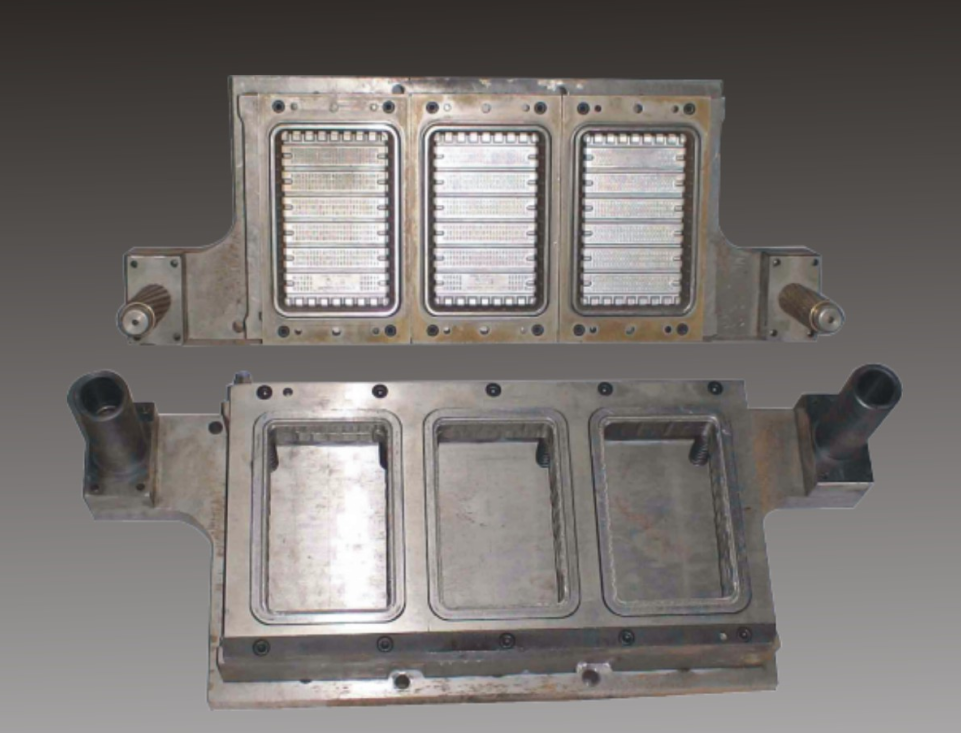

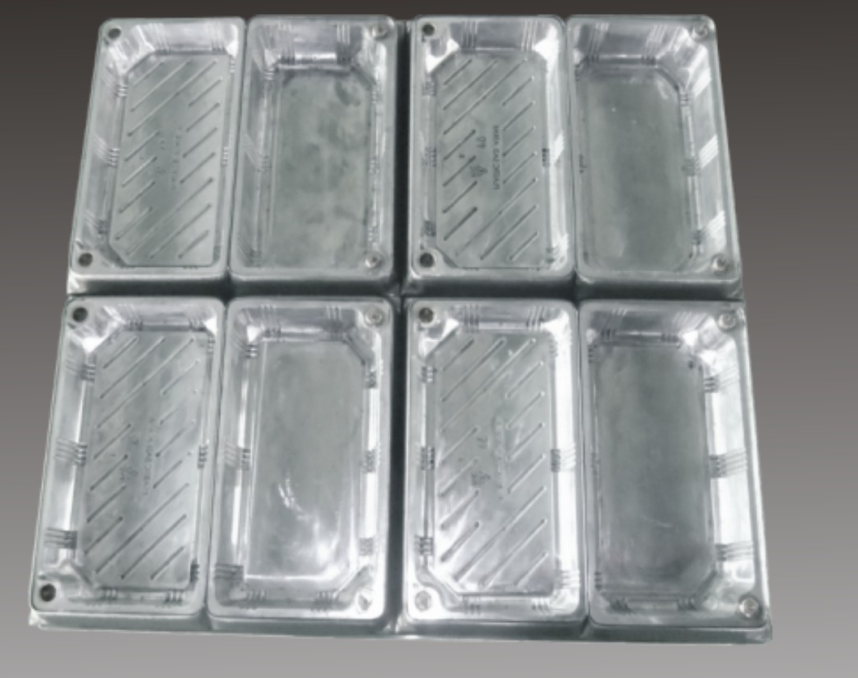

Forming Station

Max mould size:520*400mm
Max depth:110mm
Servo driven plug assist on top forming station
Stable square struction,provide stable forming

Cutting Station

Servo motor driven Movable cutters, to adjust the cutting by itself High-quality cutters, save spare parts costs Top nut locking structure, providing stronger force

Stacking Station

Different stacking schemes can be formulated according to the customer's requirements.

Waste Recycling

Edge trim is fed to the waste rewinding system for recycling. Its special clutch automatically cuts power when the roll becomes too large, preventing overload and extending motor lifespan.
