School Glass Lunch Box Thermoforming Machine
Model: TTF-520A
Station：Three station
Max.Forming Area: 520*400mm
Max.Forming Height: 110mm
Sheet thickness：0.2-2mm
Forming Speed (Max.): 40times/min
Power supply: AC 380V, 50Hz, Three-phase, Four-wire
Application: trays, containers, boxes, lids, etc.
Core Components: PLC, Engine, Bearing, Gearbox, Motor, Gear, Pump
Suitable Material: PP, PS, HIPS, PET, PVC, PLA etc.
This school glass lunch box thermoforming machine developed by combining the domestic and foreign equipment and advantages, is a set of hydraulic pneumatic servo drive for an automatic forming cutting stacking machine. It can be used for hot forming process many kinds of plastic material, it can produce PS,PVC,PE,PP,PET,HIPS etc all kinds of packaging products, materials used in food, medical supplies, electrical components, tourism products, toys, textile, etc.
Parameter of School Glass Lunch Box Thermoforming Machine:
| Model | TTF-520A |
| Station | Three station |
| Mould Size (Max.) | 520*400mm |
| Forming Depth (Max.) | 110mm |
| Sheet thickness | 0.2-2mm |
| Forming Speed (Max.) | 40times/min |
| Air pressure | 0.6-0.8mpa |
| Air consumption | 3.0 m³/min |
| Water consumption | 0.7m³/h |
| Sheet width (Max.) | 550mm |
| Suitable Sheet | PP, PS, HIPS, PET, PVC, PLA etc. |
| Power supply | AC 380V, 50Hz, Three-phase, Four-wire |
| Rated power | 120Kw |
| Heating power | 75Kw |
| Procedure | Forming-cutting-stacking |
| Dimension | L9300*W4200*H2800mm |
| Weight | About 9.0T |
Main Features of School Glass Lunch Box Thermoforming Machine:
- High strength frame, mouding frame has being treated with zinc spraying,adopts opposite directions type tie bar for easy maintenance and wear resistance self-lubricating copper tube.
- Hydraulic pressure system achieves faster operation (save 6S/cycle).
- Pipe system: completely inlet and exit of water ,air and steam adopt big pipeline and valves which is very close to the mold.
- Vacuum system:adopting vertical vacuum system, vacuum tank equip with a big spraying system.
- Control system: all parts adopt famous international brands with high quality. All pressure adjustment are remote controlled by control box, the program also has many self-protection and alarm systems. CE certificate, ISO9001:2008.
Application of School Glass Lunch Box Thermoforming Machine

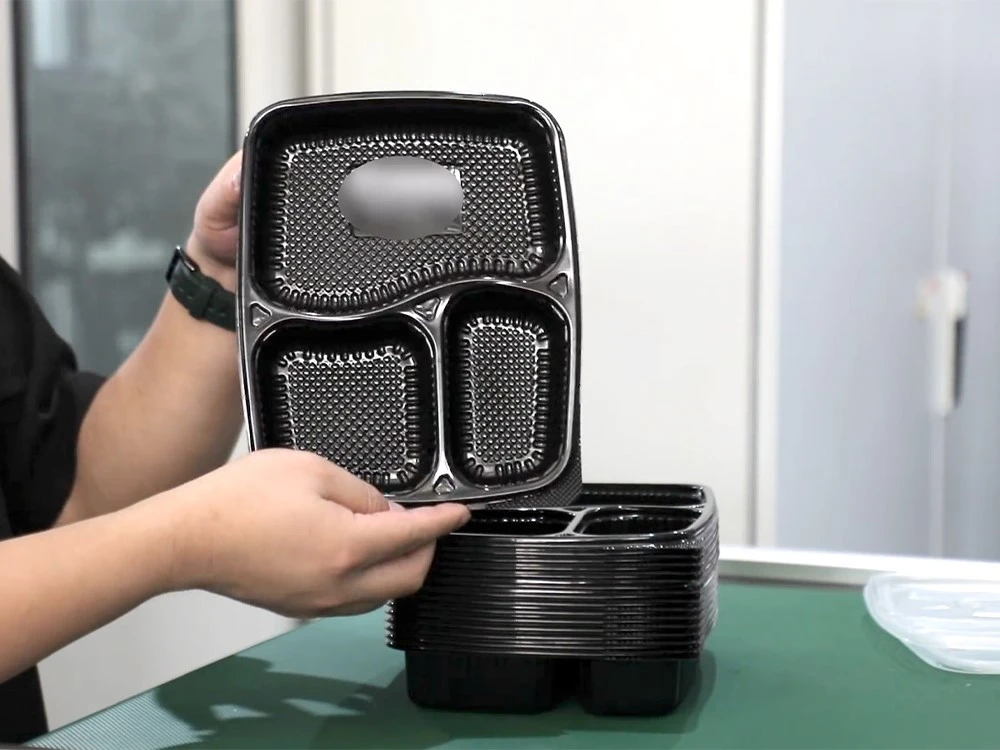

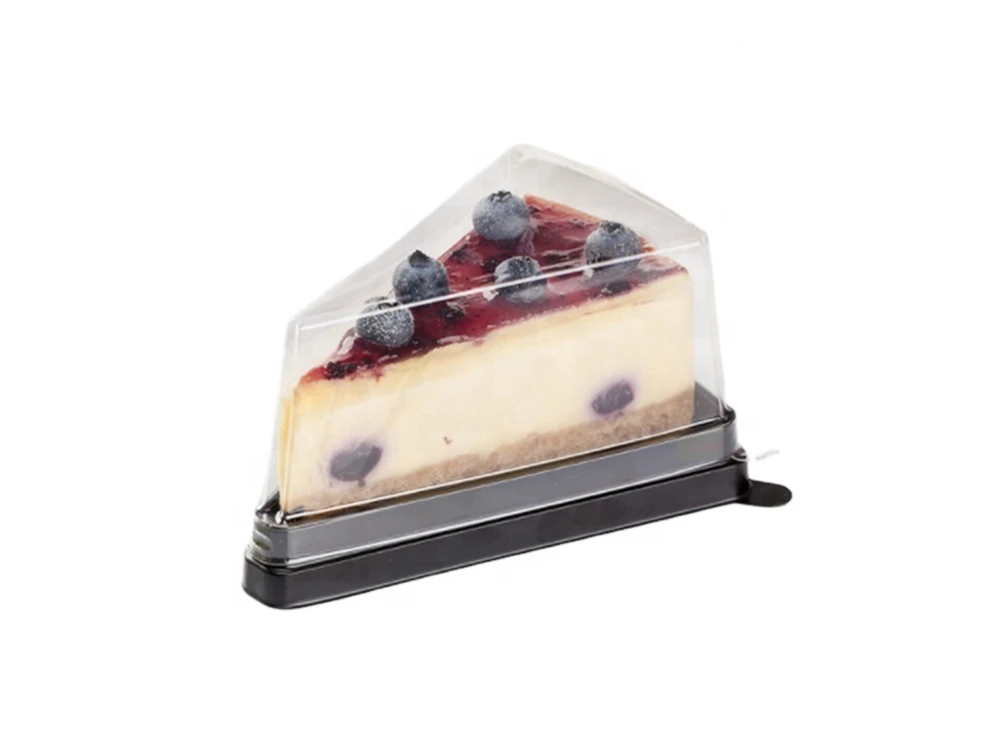

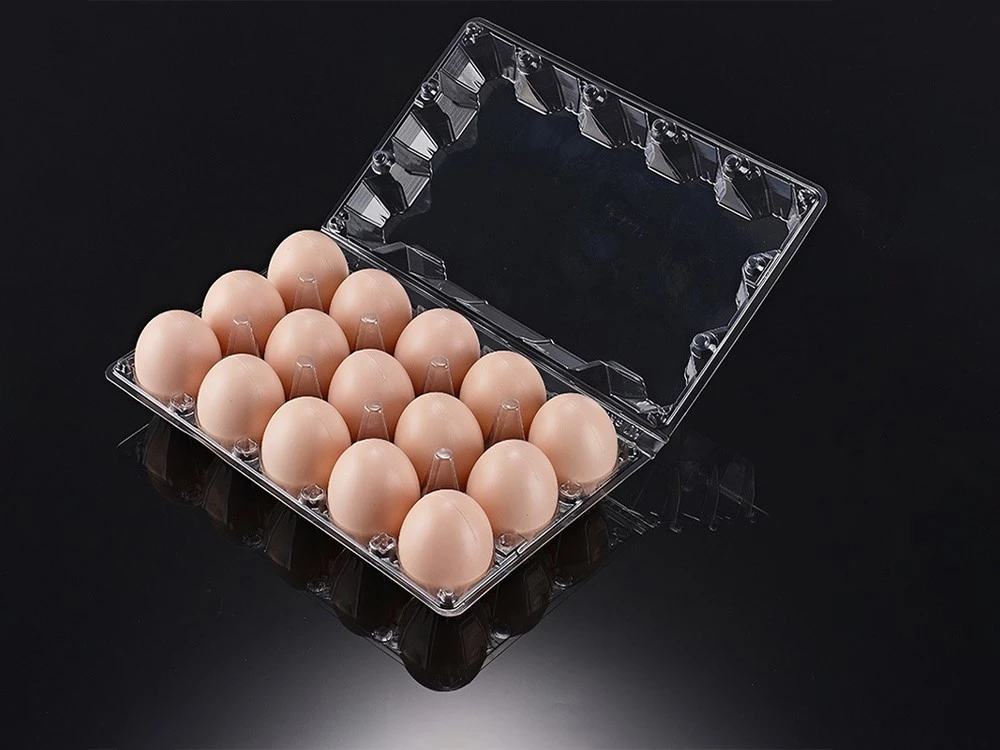

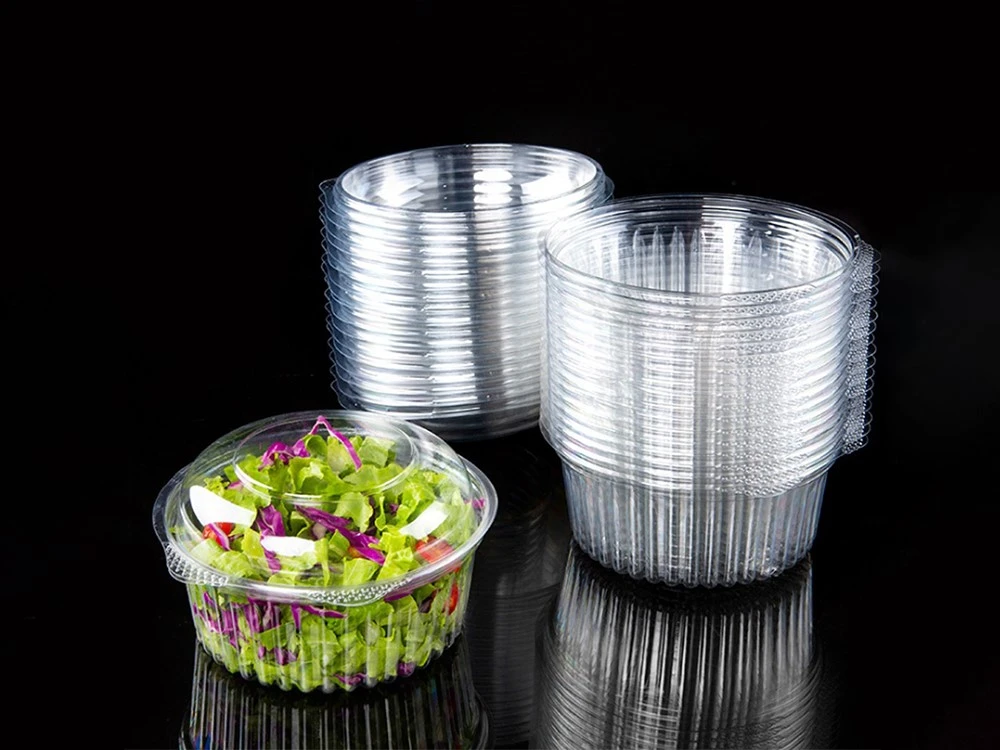

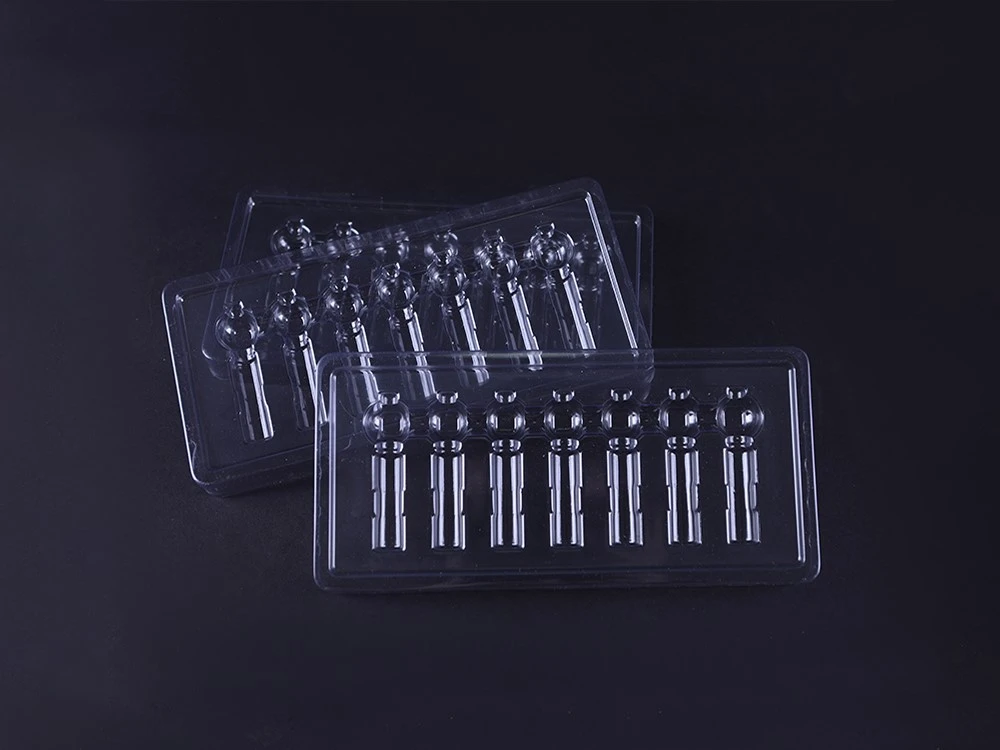

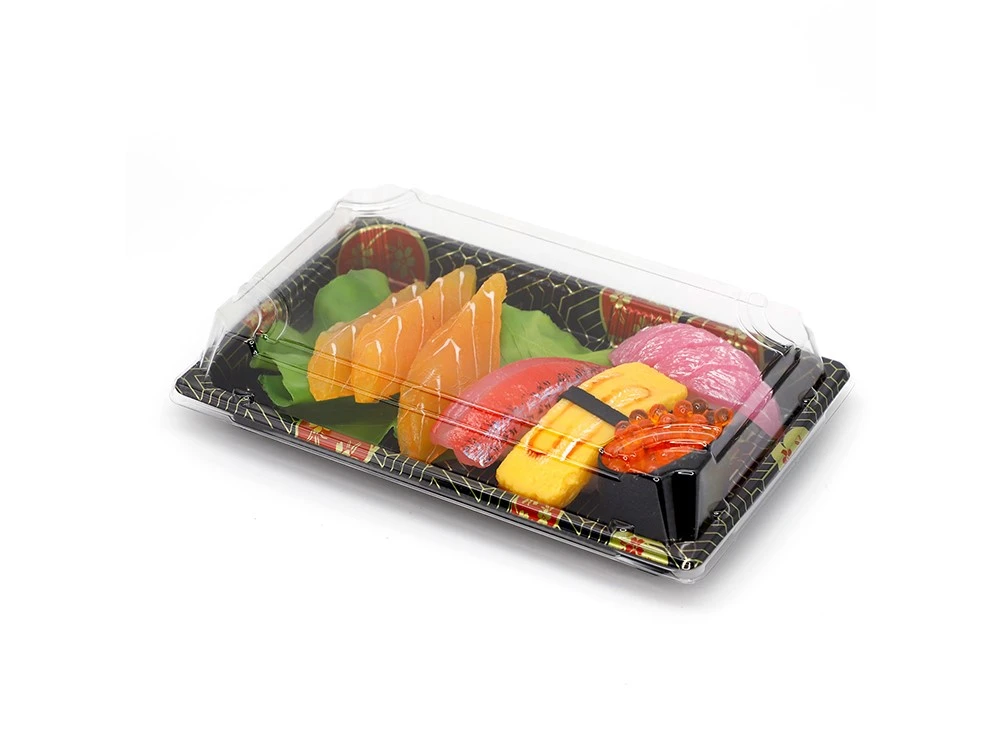

It is used to form plastic sheets such as PP PS HIPS PVC PET, etc. It can be widely used in the production of various plastic boxes, containers and other plastic products, such as ice cream cups, milk cups, chocolates, packaging boxes, candy boxes, fast food boxes, food boxes, etc.
WE can provided this service
1. Value clients, guarantee equipment quality and answer clients' questions anytime and anywhere.
2. One year free warranty, lifetime technical service support.
3. Engineers go to clients' factory in time for installation , training and trial production .
4. More spare parts are given to clients for free to ensure the school glass lunch box thermoforming machine working without suddenly stop.
